Auto Light-Off Control Module Inspection




AUTO LIGHT-OFF CONTROL MODULE INSPECTION

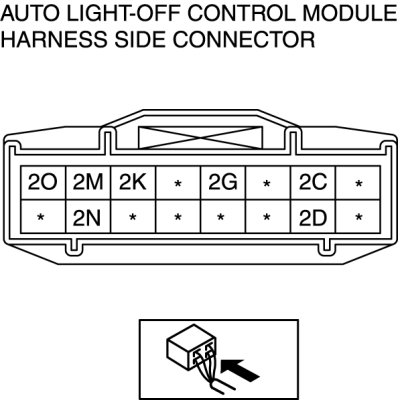

1. Measure the voltage at the auto light-off control module terminals as indicated below.

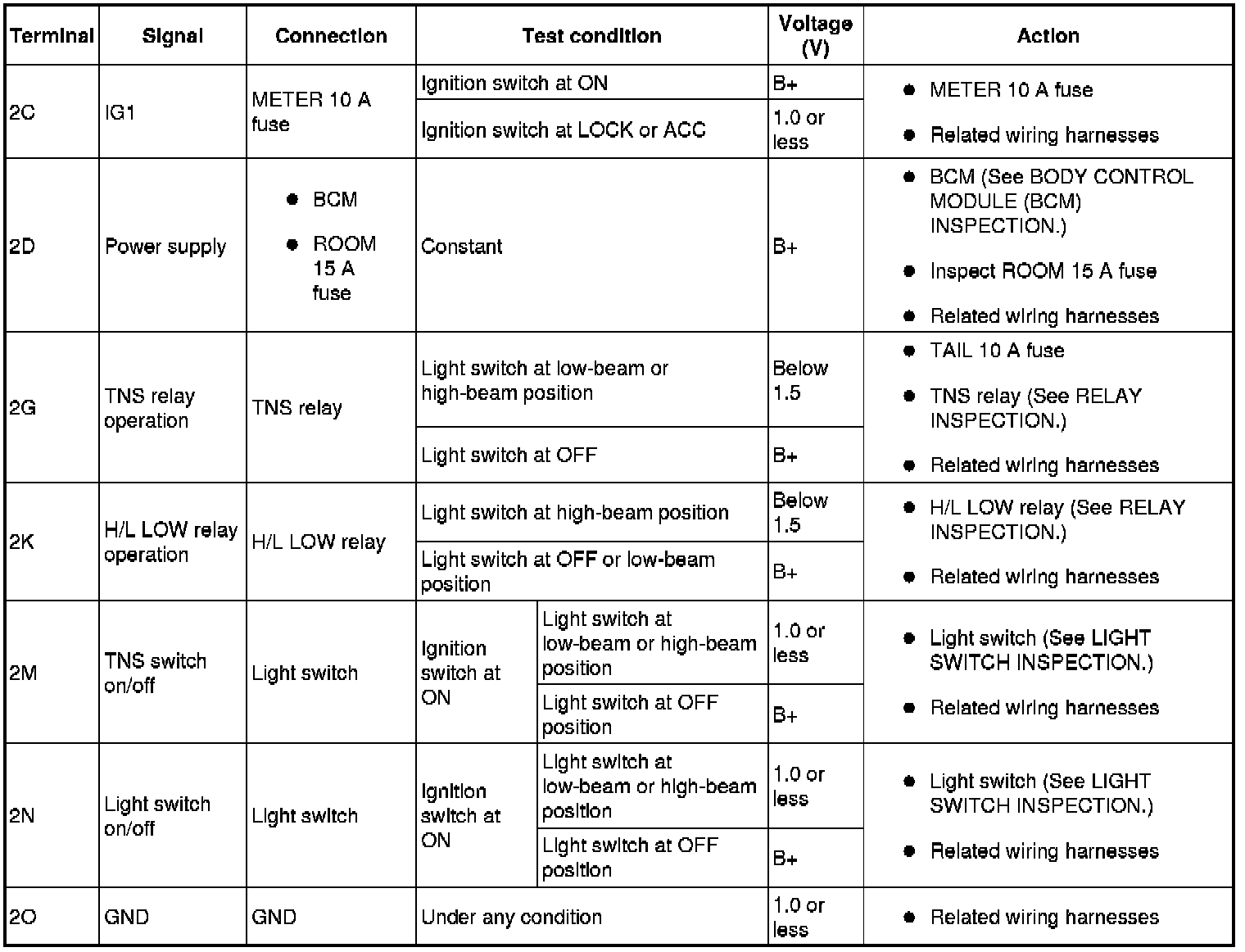

Terminal Voltage List (Reference)






Terminal Voltage List (Reference):
