Keyless Beeper Removal/Installation [Advanced Keyless System]




KEYLESS BEEPER REMOVAL/INSTALLATION [ADVANCED KEYLESS SYSTEM]

1. Disconnect the negative battery cable.

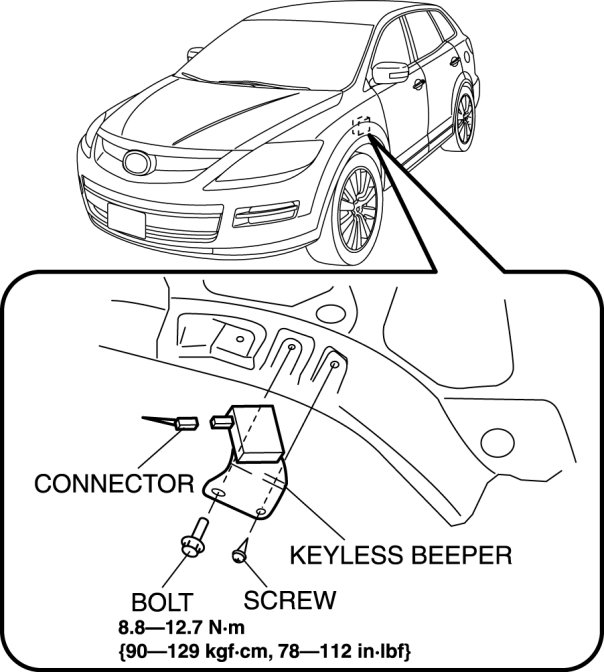

2. Partially peel back the splash shield (LH).

3. Remove the bolt and screw.

4. Disconnect the connector, then remove the keyless beeper.






5. Install in the reverse order of removal.
