PLG Rear Switch

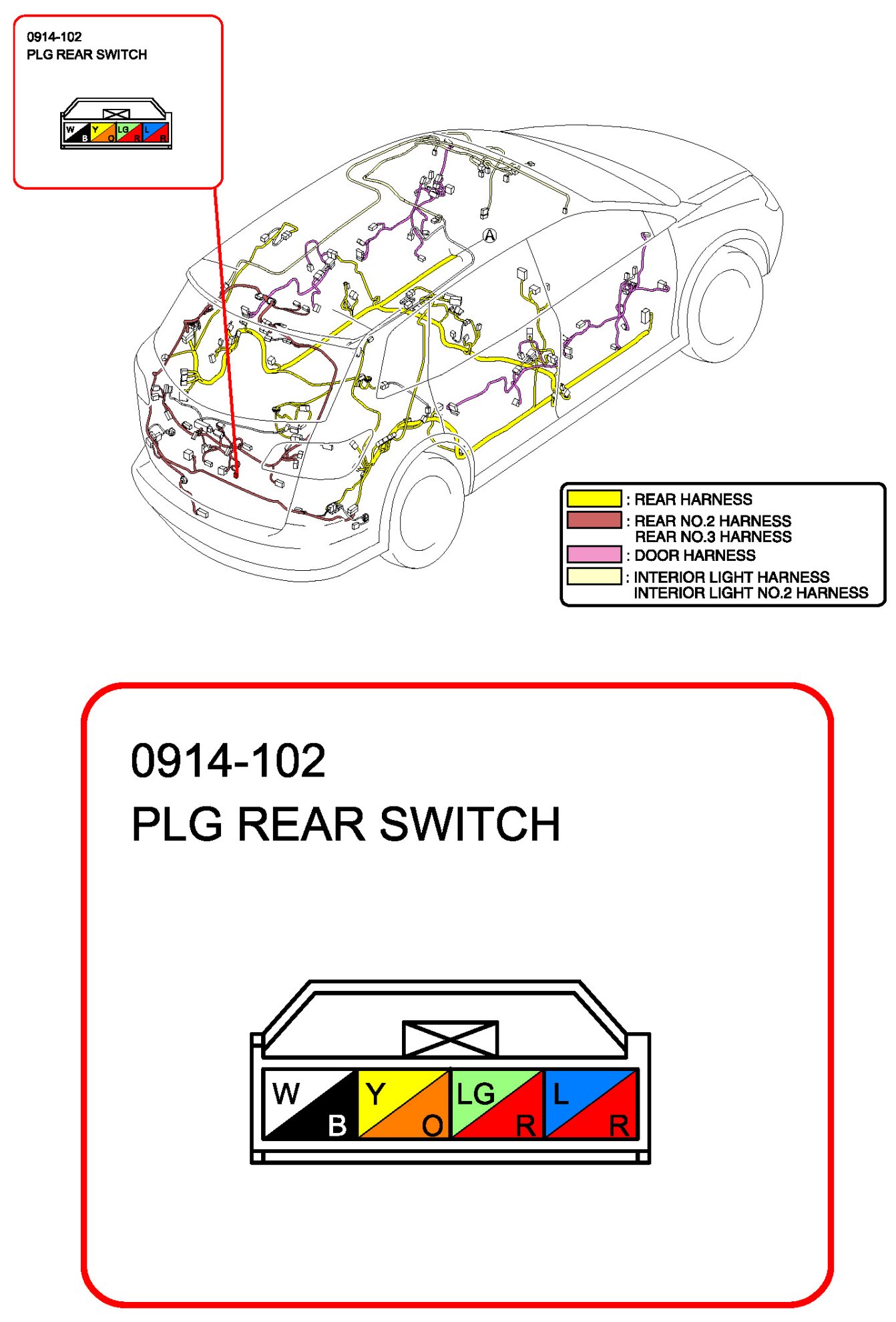

PLG Rear Switch:

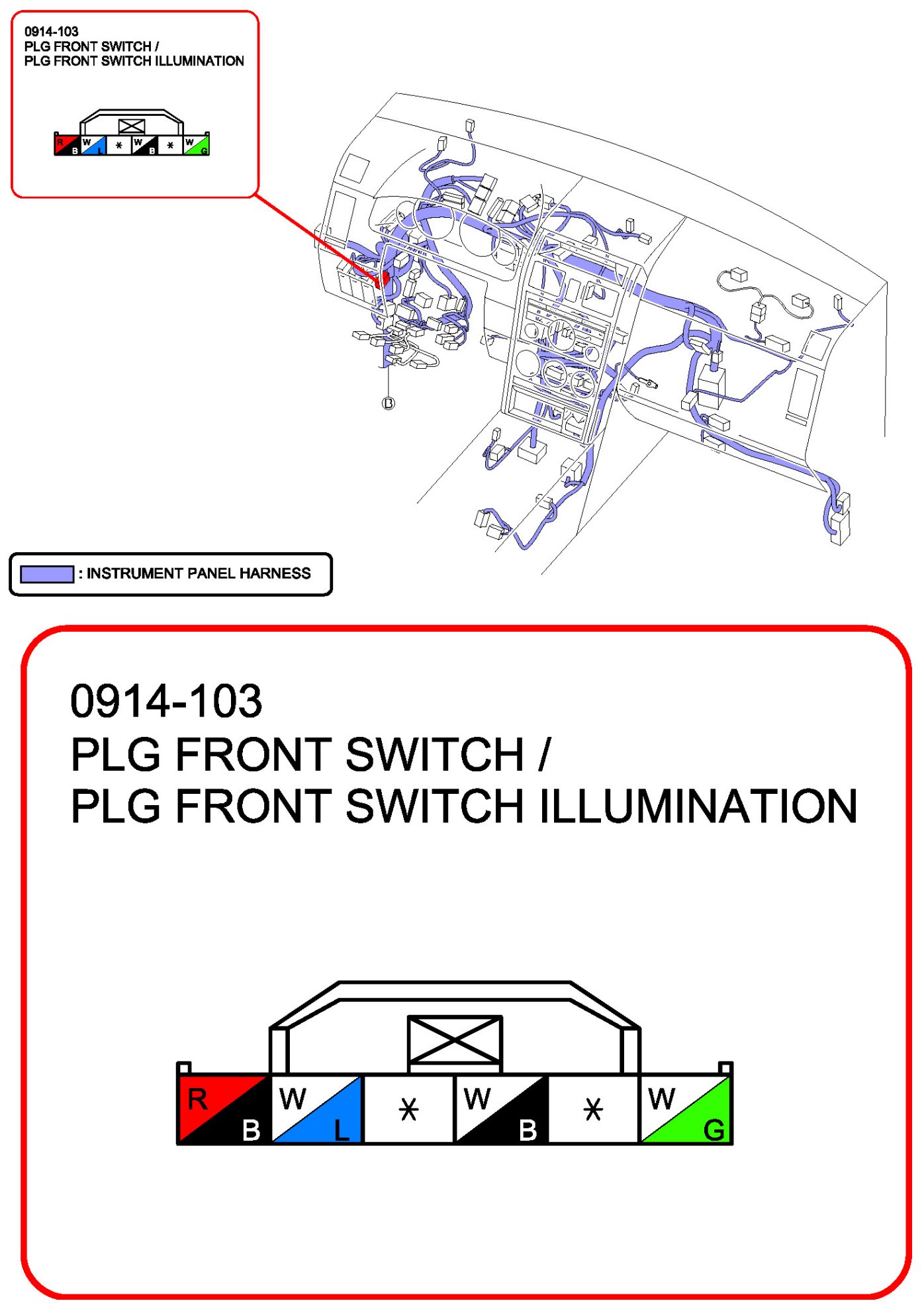

PLG Front Switch/PLG Front Switch Illumination:

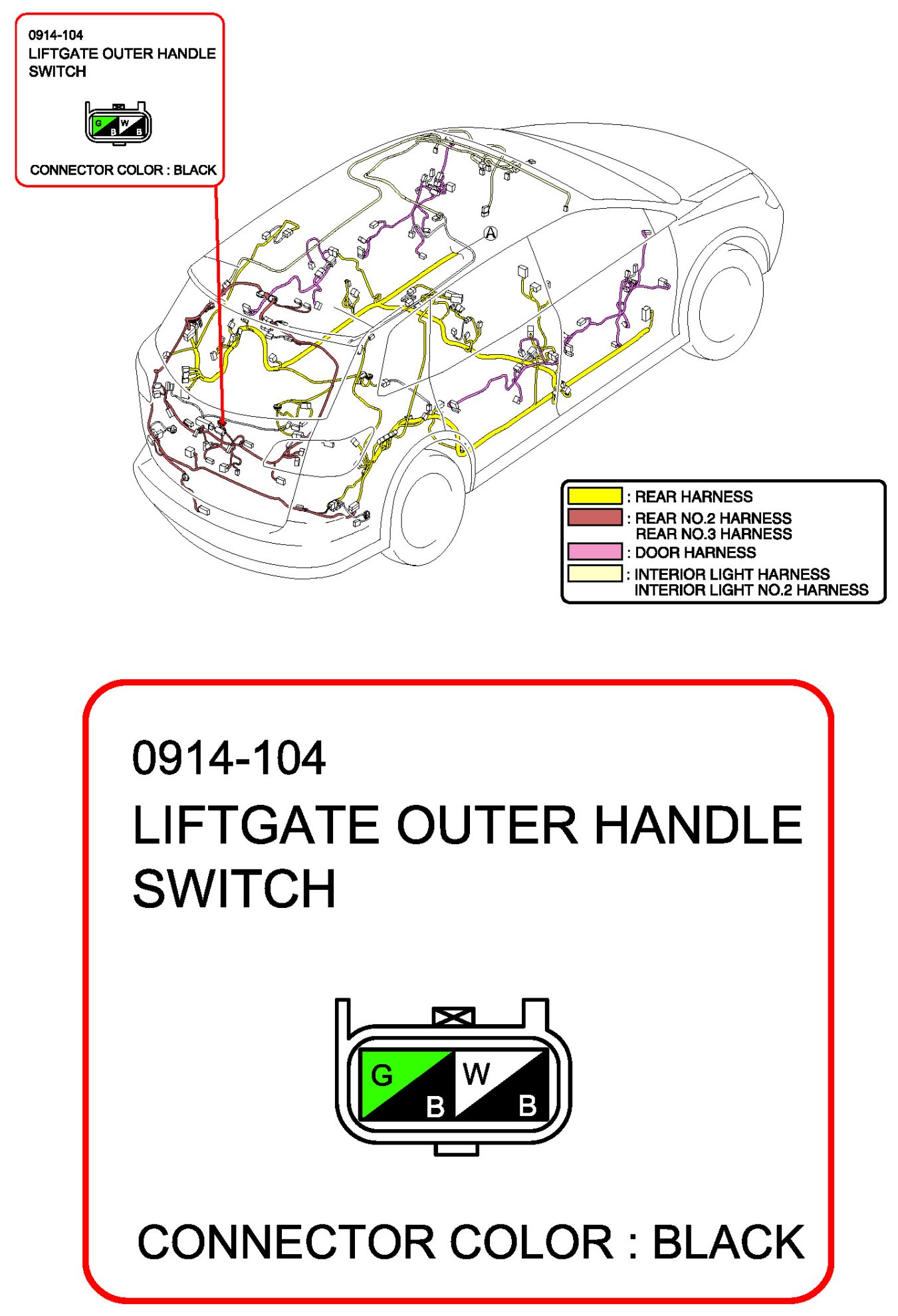

Liftgate Outer Handle Switch:



Request Switch (Liftgate):

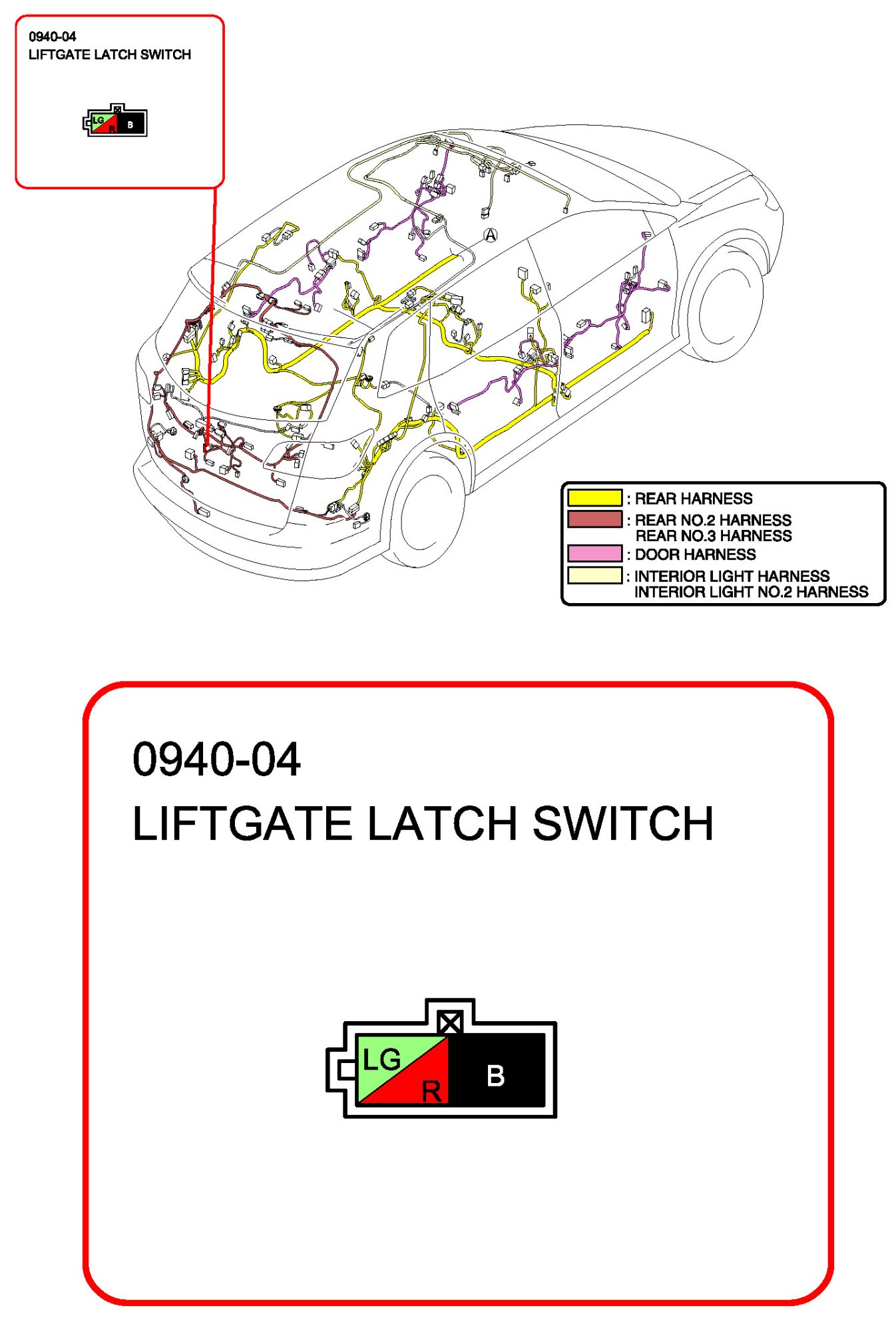

Liftgate Latch Switch:
