Combined Sensor Removal/Installation

WARNING:

If the DSC/RSC sensor initialization procedure is not completed, it could result in an unexpected accident due to the DSC/RSC being inoperative. Therefore, after the combined sensor is replaced, always perform the DSC/RSC sensor initialization procedure to ensure proper DSC/RSC operation.

CAUTION:

The internal parts of the combined sensor could be damaged if dropped. Be careful not to drop the combined sensor. Replace the combined sensor if it is subjected to an impact. Also, do not use an impact wrench or other similar air tools when removing/installing the sensor.

Remove the second-row seat (RH). See SECOND-ROW SEAT REMOVAL/INSTALLATION .
Remove the edge cover. See LONG SLIDER REMOVAL/INSTALLATION .
Remove the long slider cover. See LONG SLIDER REMOVAL/INSTALLATION .
Separate the floor carpet at the area shown in the figure.
CAUTION:
- When separating the floor carpet, the wiring harnesses under the floor carpet could be damaged. Separate the floor carpet while lifting it so as not to damage the wiring harnesses.

  Fig 1: Identifying Rear Heat Duct No. 4 & Cutting Line
  Courtesy of MAZDA MOTORS CORP.
Partially peel back the floor carpet from where it is separated as shown in the figure.
Remove the rear heat duct No. 4.
Remove in the order indicated in the table.
Install in the reverse order of removal.
After installation, perform the DSC/RSC sensor initialization procedure. See DSC/RSC SENSOR INITIALIZATION PROCEDURE .

Fig 2: Identifying Rear Heat Duct No. 4 & Floor Covering
Courtesy of MAZDA MOTORS CORP.

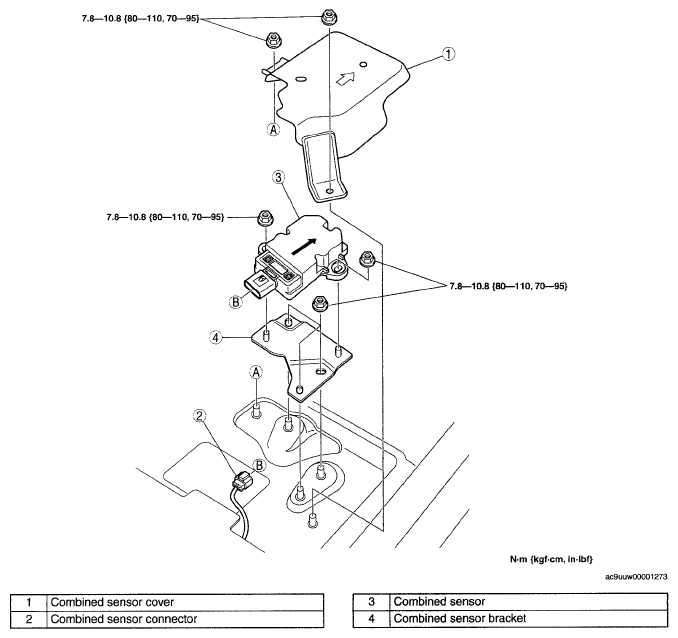

Fig 3: Combined Sensor Cover, Combined Sensor Connector, Combined Sensor, Combined Sensor Bracket With Torque Specifications
