Rear Abs Wheel-Speed Sensor Removal/Installation [2WD]

  1. Remove the trunk box. See TRUNK BOX REMOVAL/INSTALLATION .
  2. Remove the seat side box. See SEAT SIDE BOX REMOVAL/INSTALLATION .
  3. Remove the third-row seat. See THIRD-ROW SEAT REMOVAL/INSTALLATION .
  4. Remove the rear scuff plate inner. See REAR SCUFF PLATE REMOVAL/INSTALLATION .
  5. Remove the third-row seat belt lower anchor installation bolt. See THIRD-ROW SEAT BELT REMOVAL/INSTALLATION .
  6. Remove the trunk side trim. See TRUNK SIDE TRIM REMOVAL/INSTALLATION .
  7. Remove in the order indicated in the table.
  8. Install in the reverse order of removal.

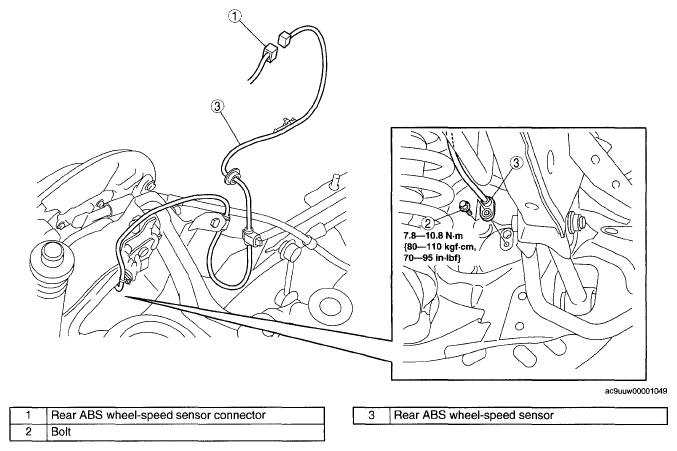

    Fig 1: Rear ABS Wheel Speed Sensor Connector, Rear ABS Wheel Speed Sensor, Bolt With Torque Specifications
    G05508417Courtesy of MAZDA MOTORS CORP.
