Auxiliary Jack

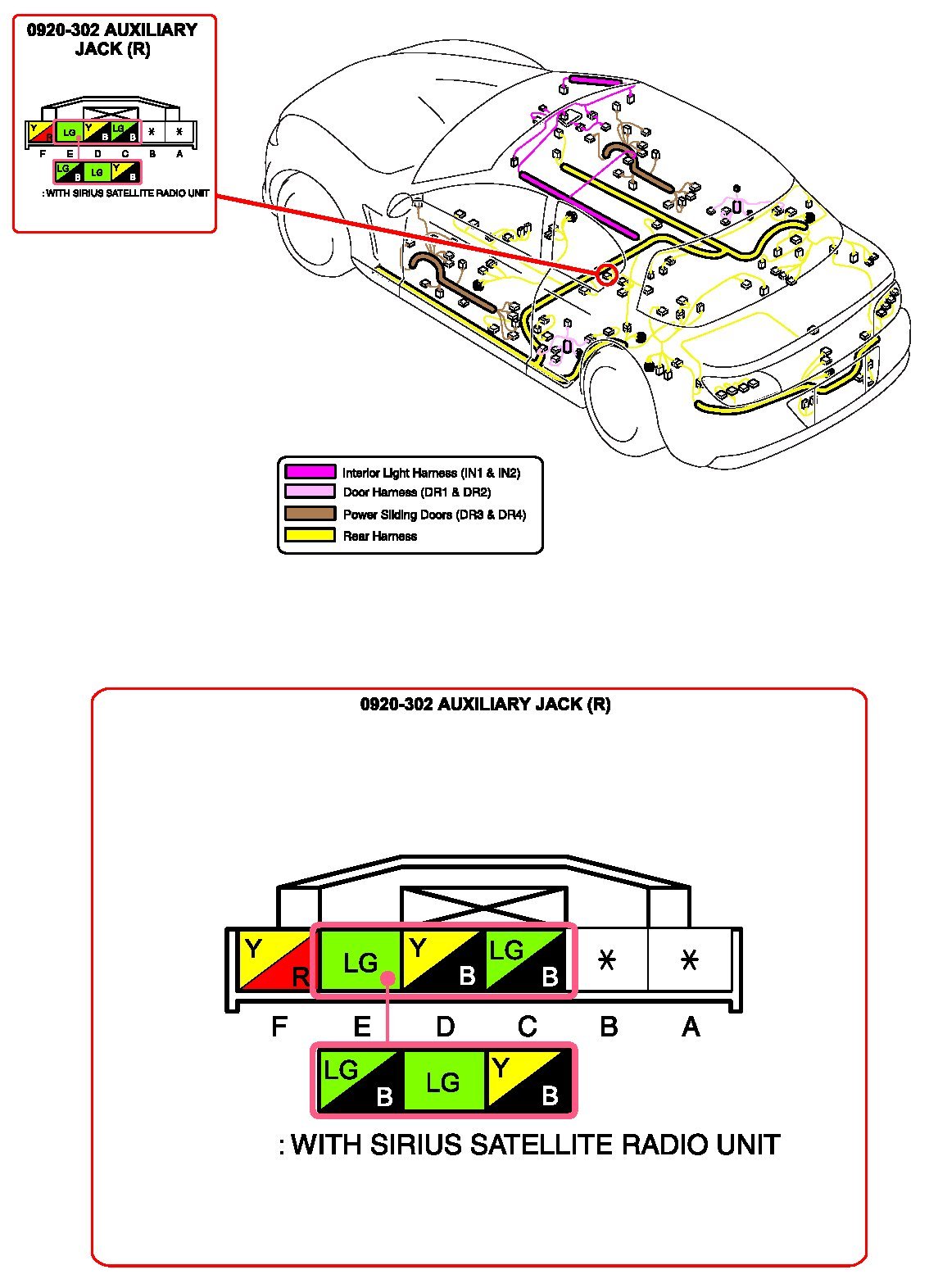

Auxiliary Jack (Without Bose):

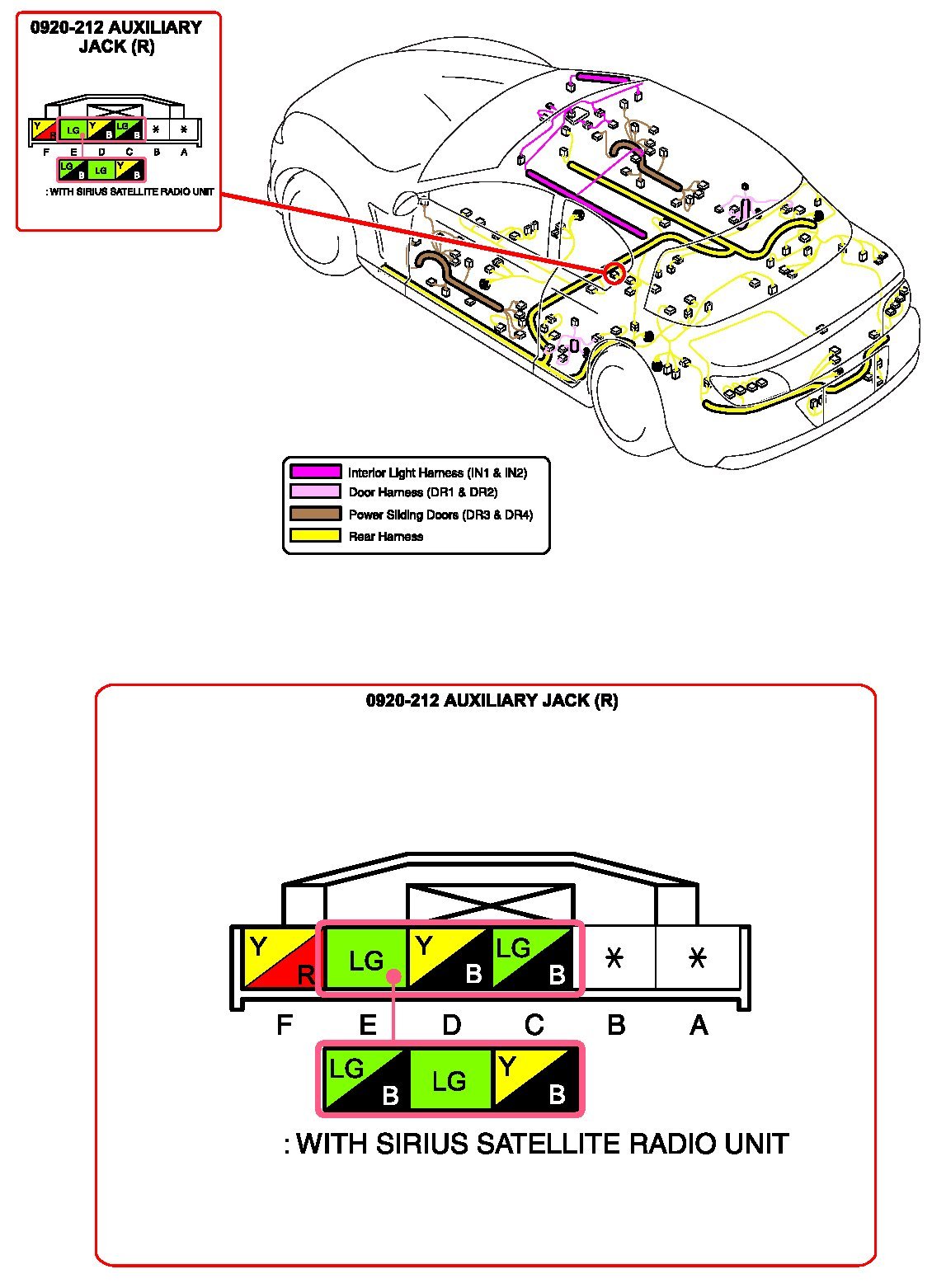

Auxiliary Jack (With Bose):



Auxiliary Jack (Car-Navigation System):
