Noise Filter

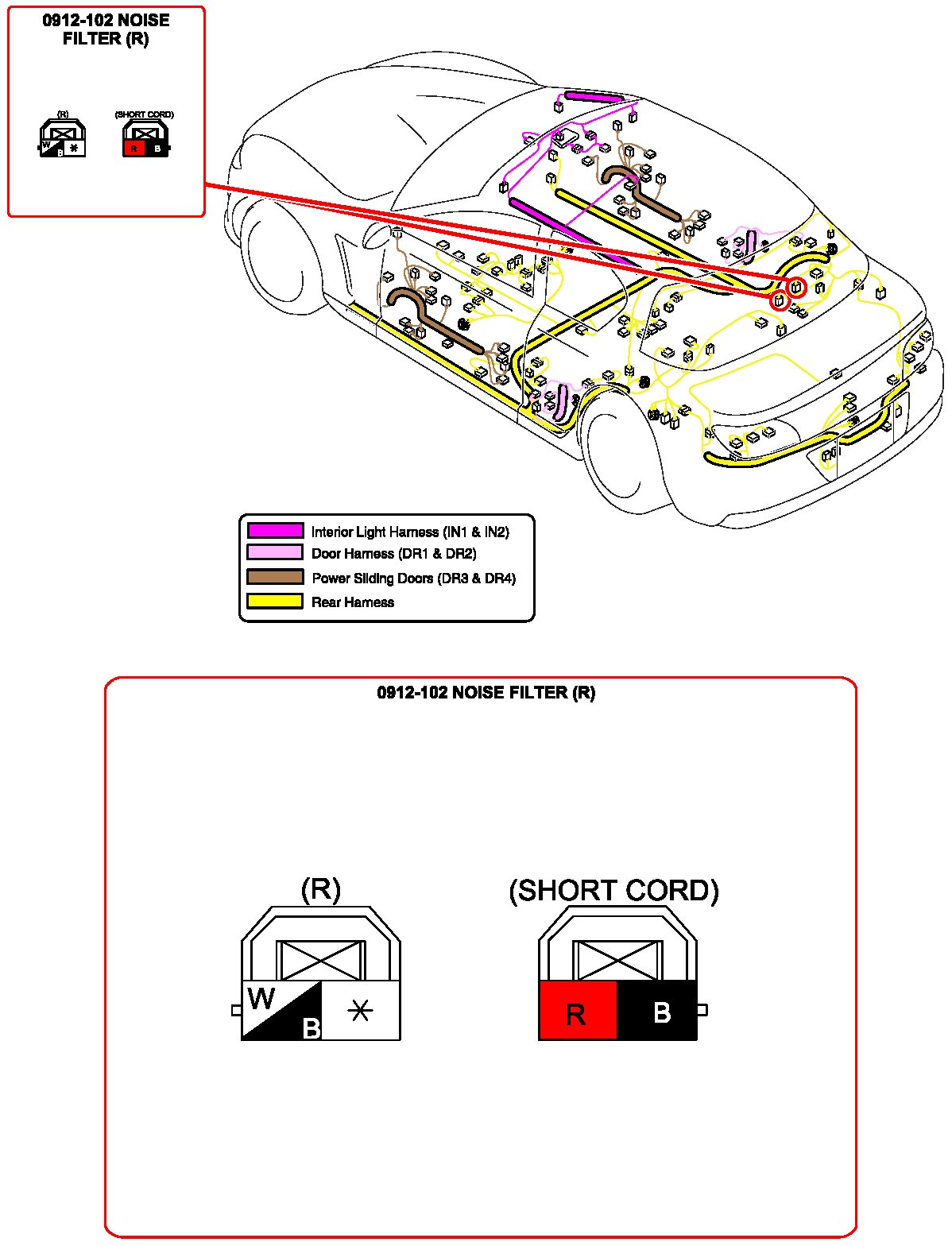

Noise Filter (Heated Outer Mirror/Rear Window Defroster):

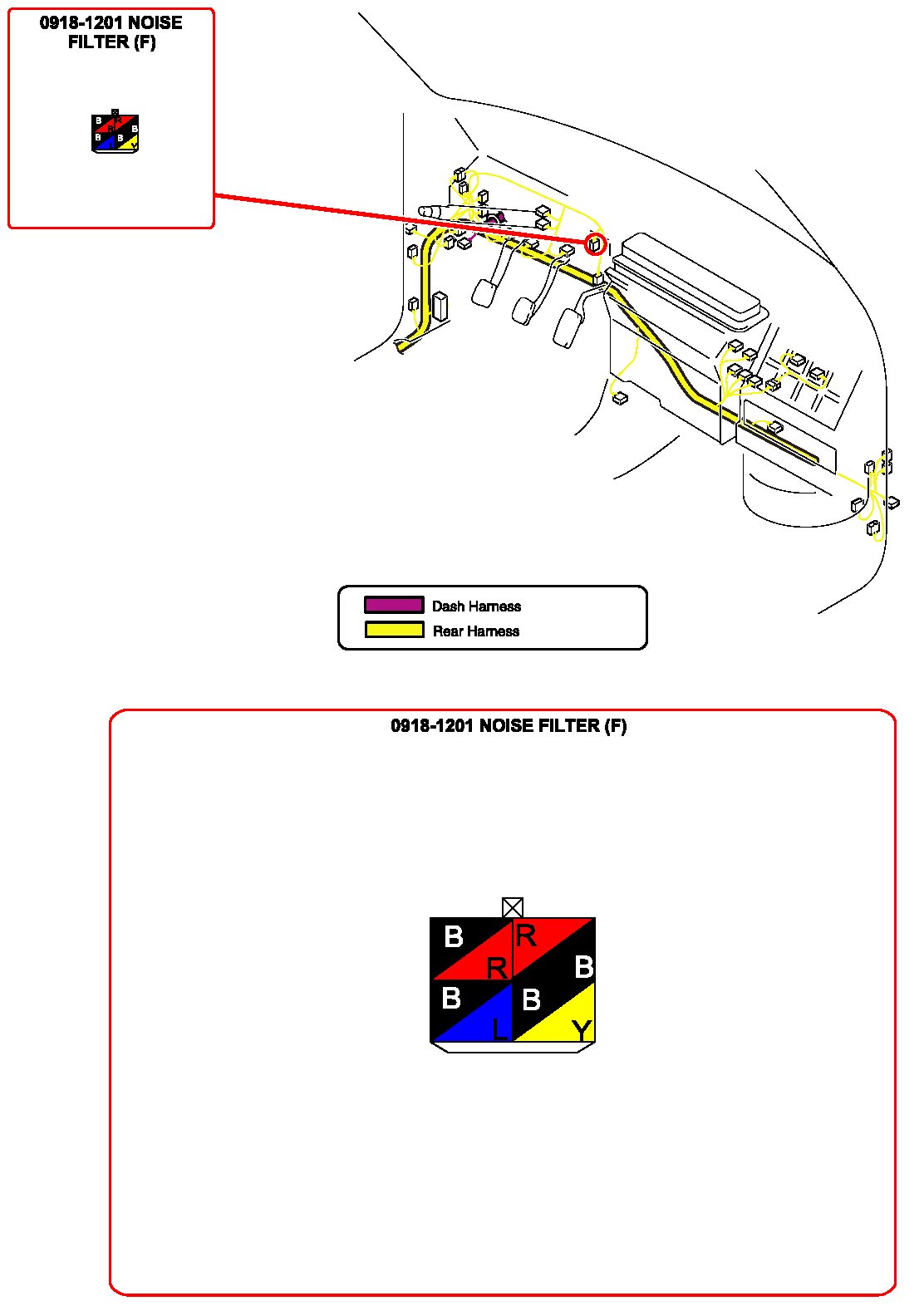

Noise Filter (Brake Light/High Mount Brake Light):
