Heater Core Case: Service and Repair

AIRFLOW MODE MAIN LINK REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the A/C amplifier. A/C Amplifier Removal/Installation [Full-Auto Air Conditioner] A/C Amplifier Removal/Installation [Manual Air Conditioner]

3. Remove the airflow mode link set.

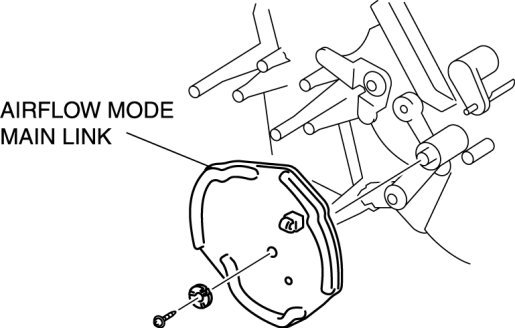

4. Remove the airflow mode main link as shown in the figure.






5. Install in the reverse order of removal.
