EGR Module (ESM) Removal/Installation

-
EGR MODULE (ESM) REMOVAL/INSTALLATION - 2.5L

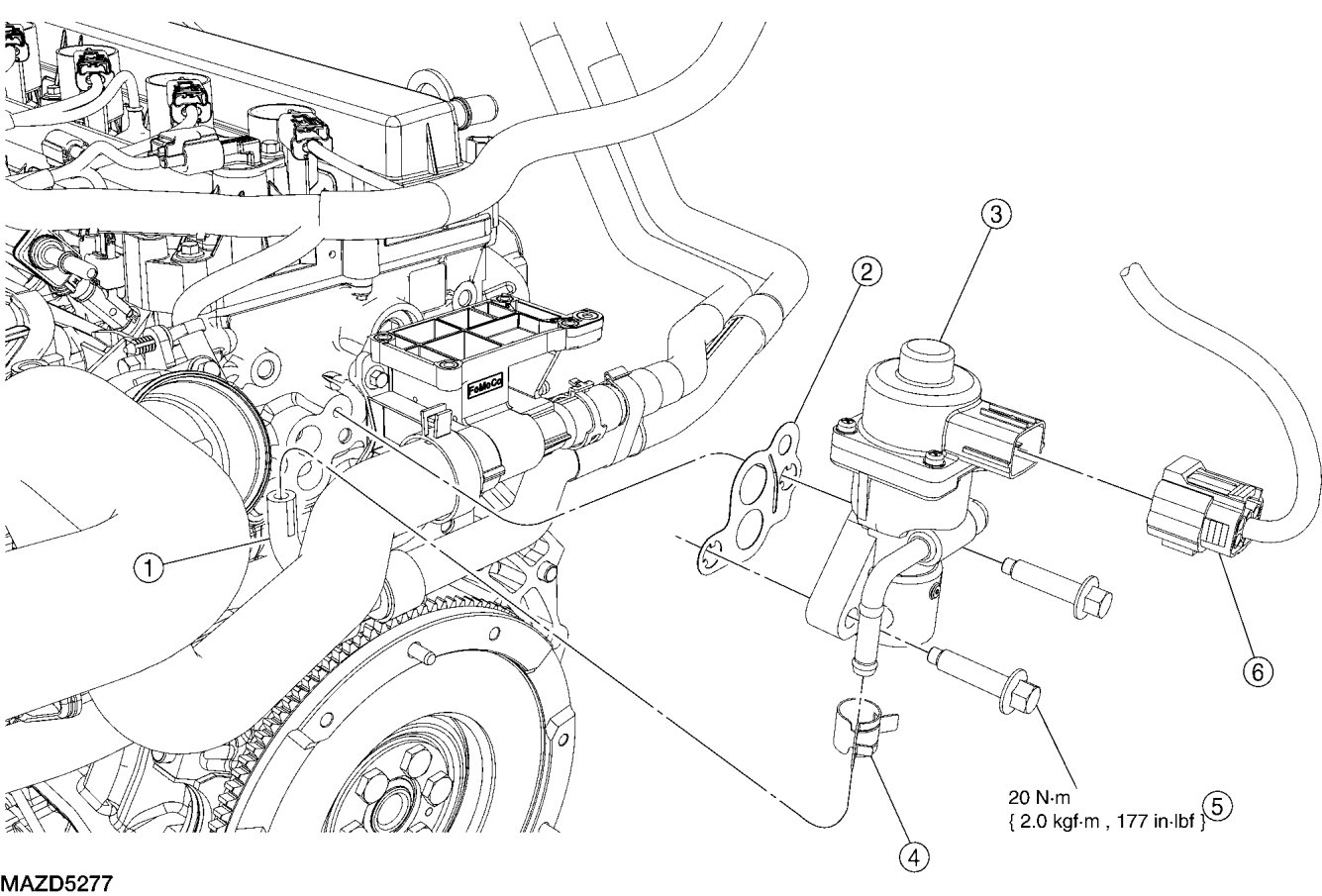

EGR MODULE (ESM) 2.5L










1. Drain the cooling system. See - Removal and Replacement.

2. Remove the outlet pipe. See - Air Cleaner Outlet Pipe Removal/Installation.

3. Disconnect the EGR valve electrical connector.

4. Release the clamp and remove the coolant hose from the EGR valve.

5. Remove the 2 bolts and the EGR valve.

- To install, tighten to 20 Nm {2.0 kgf-m, 177 in-lbf}.

6. Remove and discard the EGR valve gasket.

- Clean and inspect the EGR gasket mating surfaces

CAUTION:Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges that make leak paths. Use a plastic scraping tool to remove all traces of the exhaust gas recirculation (EGR) valve gasket
NOTE:If there is no residual gasket material present, metal surface prep can be used to clean and prepare the surfaces
NOTE:Do not reuse the EGR valve gasket.
7. To install, reverse the removal procedure.

NOTE:Install a new EGR valve gasket.
8. Fill and bleed the cooling system. See - Removal and Replacement.
