Component Test - Multifunction Switch



-
COMPONENT TEST - MULTIFUNCTION SWITCH

1. Remove the multifunction switch. See Steering Column Multifunction Switch Removal/Installation.

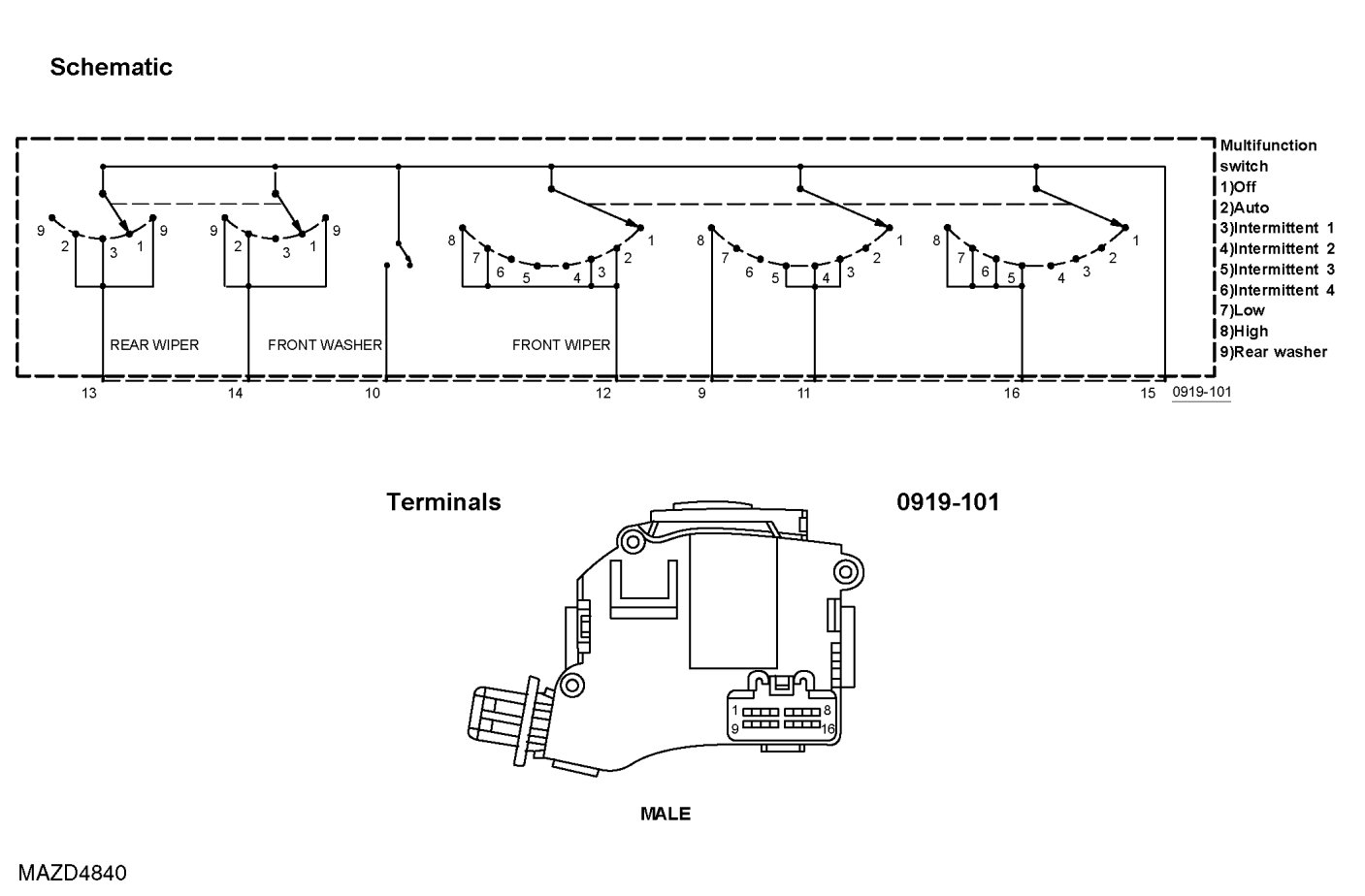

2. Inspect for continuity between the multifunction switch terminals using a self-powered test light or an ohmmeter.
