Knock Sensor (KS) Removal/Installation - 3.0L: Notes

Cylinder Head-Mounted Knock Sensor (KS)

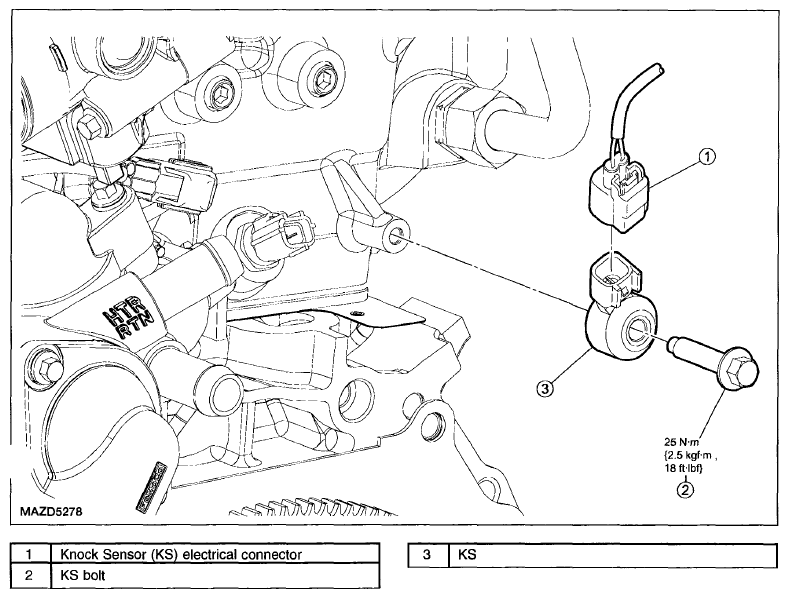

Fig 1: Identifying Cylinder Head-Mounted Knock Sensor Removal/Installation - 3.0L
G06157223Courtesy of MAZDA MOTORS CORP.

Engine Block-Mounted Knock Sensor (KS)

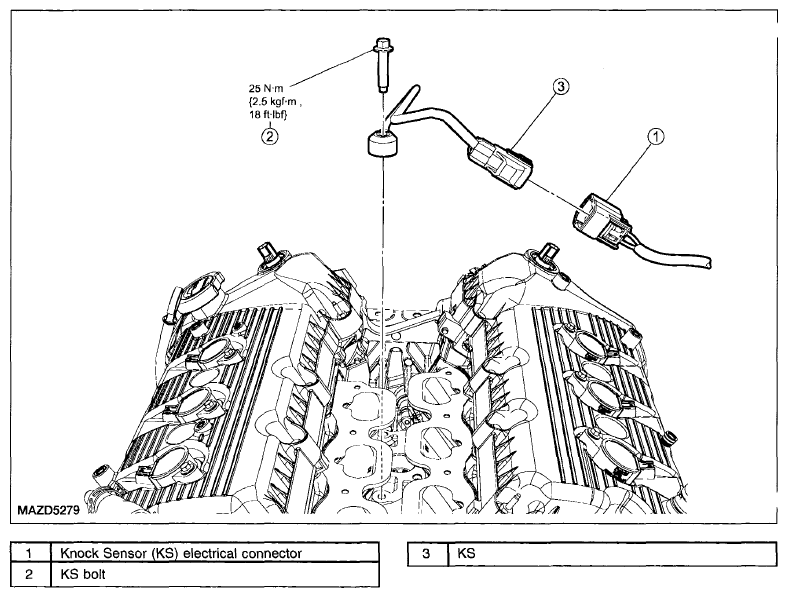

Fig 2: Identifying Engine Block-Mounted Knock Sensor Removal/Installation - 3.0L
G06157224Courtesy of MAZDA MOTORS CORP.
