Accelerator Pedal Position (App) Sensor Removal/Installation

2.5L and 3.0L Vehicles

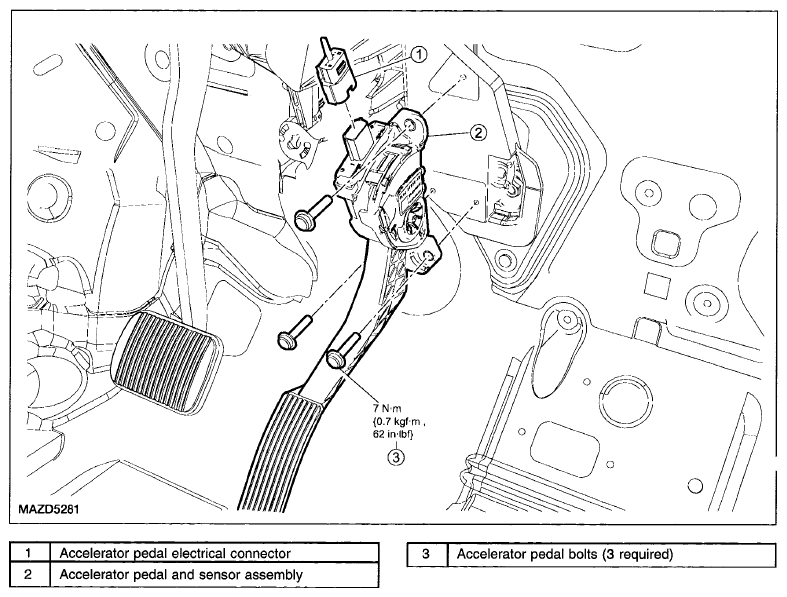

Fig 1: Identifying Accelerator Pedal Position Sensor Removal/Installation - 2.5L And 3.0L Vehicles

Courtesy of MAZDA MOTORS CORP.

1. Disconnect the accelerator pedal electrical connector.
2. Remove the 3 bolts and the accelerator pedal and sensor assembly.
   • To install, tighten to 7 N.m {0.7 kgf.m, 62 in.lbf} (2.5L and 3.0L vehicles).
3. To install, reverse the removal procedure.
