Powertrain Control Module (Pcm) Removal/Installation - 2.5L: Notes

WARNING: This page is about a different variant/trim than selected.

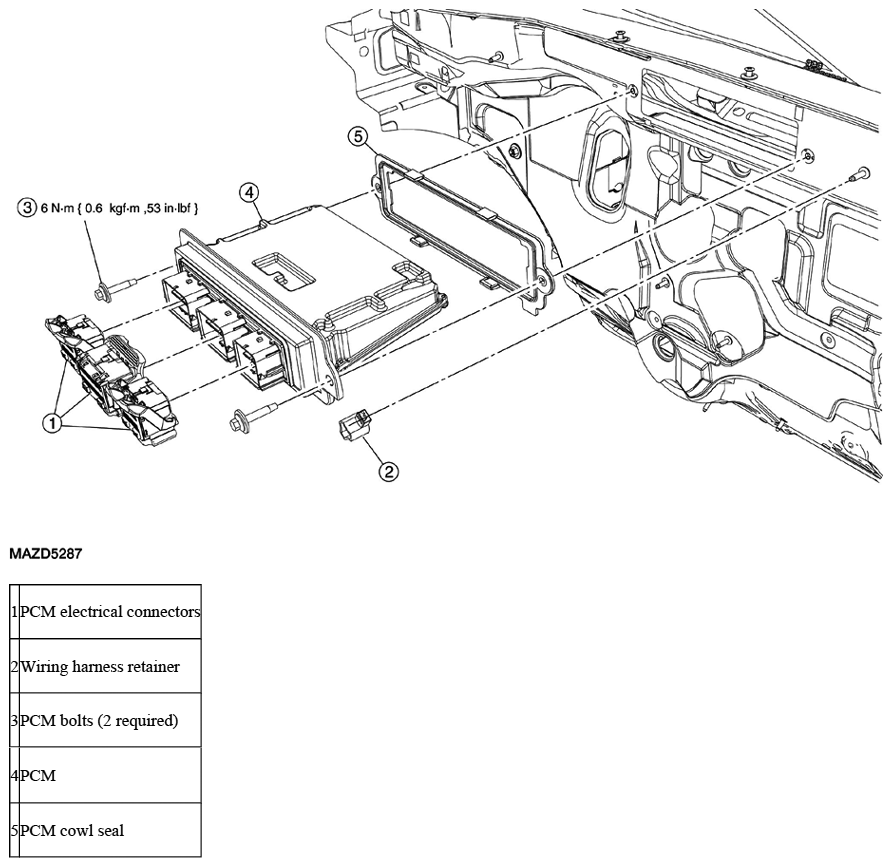

Fig 1: Powertrain Control Module Removal/Installation With Torque Specifications -- 2.5L

Courtesy of MAZDA MOTORS CORP.
