Fluid Pressure Sensor/Switch: Service and Repair

OIL PRESSURE SWITCH REMOVAL/INSTALLATION [FS5A-EL]

WARNING:
- A hot transaxle and ATF can cause severe burns. Turn off the engine and wait until they are cool.

1. Perform the following procedures.
a. Remove the battery cover. Removal and Replacement

b. Disconnect the negative battery cable.

c. Remove the aerodynamic under cover NO.2. Aerodynamic Under Cover No.2 Removal/Installation

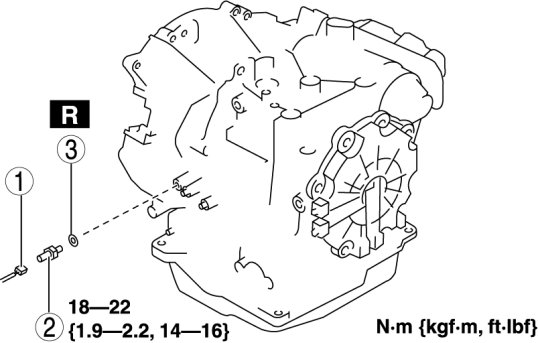

2. Remove in the order indicated in the table.










3. Install in the reverse order of removal.
