Flywheel: Specifications

A26M-R

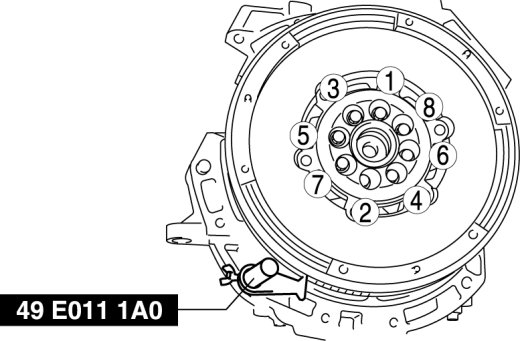

Gradually tighten the flywheel lock bolts in a crisscross pattern.

Tightening torque 152-161 Nm {15.5-16.4 kgf-m, 113-118 ft-lbf}

G35M-R, G66M-R






Gradually tighten the flywheel lock bolts in a crisscross pattern.

Tightening torque 108-116 Nm {11.1-11.8 kgf-m, 80-85 ft-lbf}
