Cabin Temperature Sensor / Switch: Service and Repair

PASSENGER COMPARTMENT TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER]

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Front scuff plate Front Scuff Plate Removal/Installation

b. Front side trim Front Side Trim Removal/Installation

c. Dashboard under cover Dashboard Under Cover Removal/Installation

d. Front side wall Side Wall Removal/Installation

e. Console Console Removal/Installation

f. Hood release lever Service and Repair

g. Lower panel Lower Panel Removal/Installation

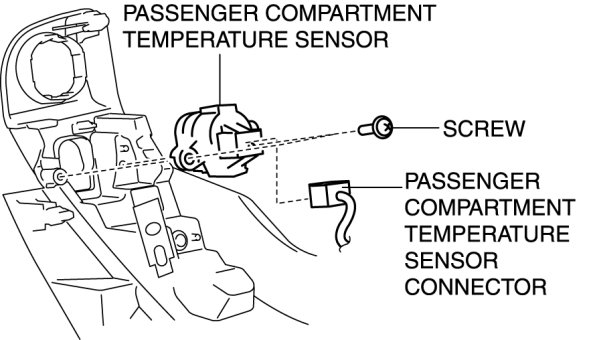

3. Disconnect the passenger compartment temperature sensor connector.

4. Remove the screw.

5. Remove the passenger compartment temperature sensor.






6. Install in the reverse order of removal.
