Inspection Using An Oscilloscope (Reference)

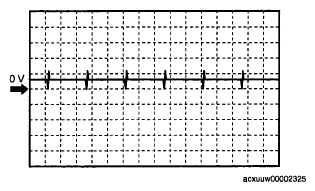

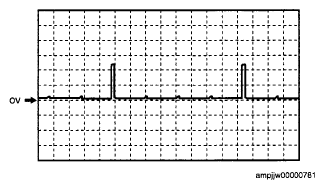

APP sensor (No. 2) signal

Accelerator pedal released

Accelerator pedal depressed

PCM terminals

• 1 AC (+)-body ground (-)

Oscilloscope setting

• 5 V/DIV (Y), 5 ms/DIV (X), DC range

Vehicle condition

• Idle after warm up
  Fig 2: Identifying Signal Waveform

  Courtesy of MAZDA MOTORS CORP.

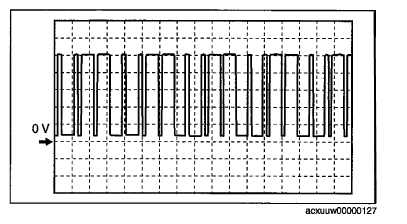

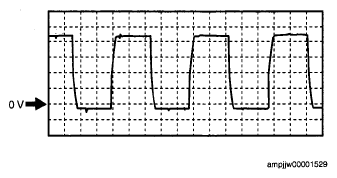

Fan control module signal

PCM terminals

• 1AE (+)-body ground (-)

Oscilloscope setting

• 5 V/DIV (Y), 5 ms/DIV (X), DC range

Vehicle condition

• Idle after warm up
  Fig 3: Identifying Signal Waveform

  Courtesy of MAZDA MOTORS CORP.

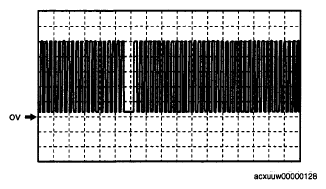

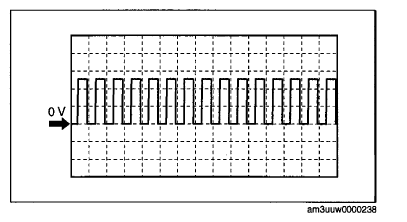

Generator field coil control signal

PCM terminals

• 1AW (+)-body ground (-)

Oscilloscope setting

• 0.5 V/DIV (Y), 2 ms/DIV (X), DC range

Vehicle condition

• Idle after warm up
  Fig 4: Identifying Signal Waveform

  Courtesy of MAZDA MOTORS CORP.

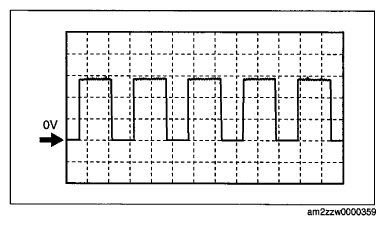

Generator output voltage signal

PCM terminals

• 1AX (+)-body ground (-)

Oscilloscope setting

• 2 V/DIV (Y), 1 ms/DIV (X), DC range

Vehicle condition

• Idle after warm up
  Fig 5: Identifying Signal Waveform

  Courtesy of MAZDA MOTORS CORP.

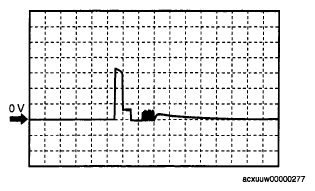

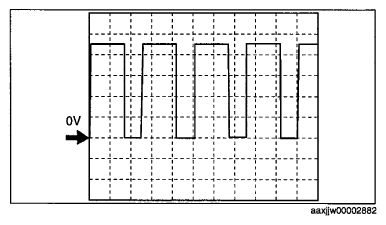

A/F sensor heater control signal

PCM terminals

• 2C (+)-body ground (-)

Oscilloscope setting

• 5 V/DIV (Y), 200 ms/DIV (X), DC range

Vehicle condition

• Idle after warm up
  Fig 6: Identifying Signal Waveform

  Courtesy of MAZDA MOTORS CORP.

CMP sensor signal

PCM terminals

• 2S (+)-body ground (-)

Oscilloscope setting

• 2 V/DIV (Y), 100 ms/DIV (X), DC range

Vehicle condition

• Idle after warm up

CKP sensor signal

PCM terminals

• 2W (+)-body ground (-)

Oscilloscope setting

• 2 V/DIV (Y), 5 ms/DIV (X), DC range

Vehicle condition

• Idle after warm up
  Fig 8: Identifying Signal Waveform

  Courtesy of MAZDA MOTORS CORP.

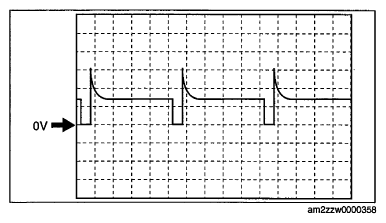

Wastegate control solenoid valve signal

PCM terminals

• 2AA (+)-body ground (-)

Oscilloscope setting

• 20 V/DIV (Y), 20 ms/DIV (X), DC range

Vehicle condition

• Switch the ignition to ON
  Fig 9: Identifying Signal Waveform

  Courtesy of MAZDA MOTORS CORP.

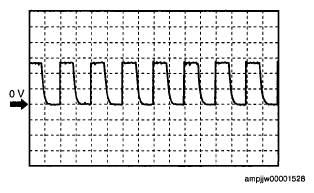

Purge control signal

PCM terminals

• 2AB (+)-body ground (-)

Oscilloscope setting

• 10 V/DIV (Y), 20 ms/DIV (X), DC range

Vehicle condition

• Racing
  Fig 10: Identifying Signal Waveform

  Courtesy of MAZDA MOTORS CORP.

OCV signal

PCM terminals

• 2AF (+)-body ground (-)

Oscilloscope setting

• 5 V/DIV (Y), 1 ms/DIV (X), DC range

Vehicle condition

• Racing

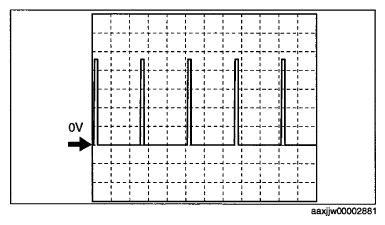

IGT1, IGT2, IGT3, IGT4 control signals

PCM terminals

• IGT1 (No. 1):2BA (+)-body ground (-)
• IGT2 (No. 2): 2AW (+)-body ground (-)
• IGT3 (No. 3): 2AX (+)-body ground (-)
• IGT4 (No. 4): 2AT (+)-body ground (-)

Oscilloscope setting

• 2 V/DIV (Y), 20 ms/DIV (X), DC range

Vehicle condition

• Idle after warm up
  Fig 12: Identifying Signal Waveform

  Courtesy of MAZDA MOTORS CORP.

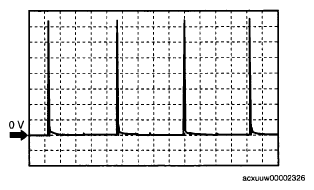

Fuel injection control (-)

PCM terminals

• Fuel injection No. 1: 2BB (+)-body ground (-)
• Fuel injection No. 2: 2BC (+)-body ground (-)
• Fuel injection No. 3: 2BD (+)-body ground (-)
• Fuel injection No. 4: 2AZ (+)-body ground (-)

Oscilloscope setting

• 10 V/DIV (Y), 20 ms/DIV (X), DC range
  Fig 13: Identifying Signal Waveform

  Courtesy of MAZDA MOTORS CORP.

Vehicle condition

• Idle after warm up

Fuel injection control (+)

PCM terminals

• Fuel injection No. 1, No. 4: 2BG (+)-body ground
• Fuel injection No. 2, No. 3: 2BH (+)-body ground

Oscilloscope setting

• 20 V/DIV (Y), 400 us/DIV (X), DC range

Vehicle condition

• Idle after warm up
  Fig 14: Identifying Signal Waveform

  Courtesy of MAZDA MOTORS CORP.
