Throttle Position (TP) Sensor Inspection
CAUTION:
- The inspection cannot be performed with this method correctly if there is a malfunction of the APP sensor or throttle valve actuator. Verify that no DTCs related to the APP sensor or throttle valve actuator are stored before the inspection.

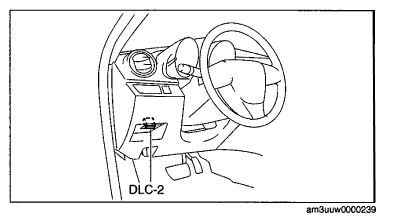

- Connect the M-MDS to the DLC-2.
- Switch the ignition to ON.
- Verify that the TP sensor output voltage (M-MDS PID: TP1, TP2) is within the specification. (See
PCM INSPECTION .)
- If not as specified, replace the throttle body. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
