Navigation Display: Service and Repair

CAR-NAVIGATION UNIT REMOVAL/INSTALLATION

1. Remove the battery cover. Removal and Replacement

2. Disconnect the negative battery cable.

3. Remove the following parts:
a. Side wall Side Wall Removal/Installation

b. Selector lever knob (ATX) Front Console Removal/Installation

c. Shift lever knob (MTX) Front Console Removal/Installation

d. Center console (Vehicles with rear vent) Center Console Removal/Installation

e. Front console Front Console Removal/Installation

f. Climate control unit Climate Control Unit Removal/Installation - Full-Auto Air Conditioner Climate Control Unit Removal - Manual Air Conditioner Climate Control Unit Inspection - Manual Air Conditioner

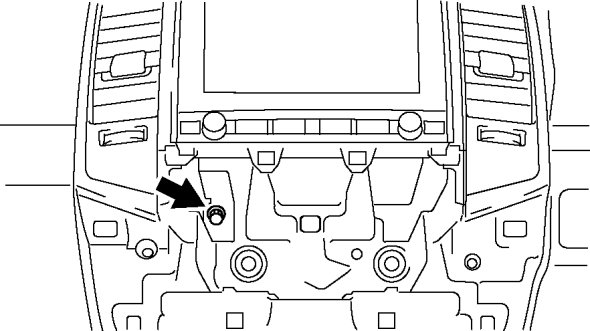

4. Remove the car-navigation unit installation bolt.






Tightening torque
- 8-10 Nm {80-110 kgf-cm, 70-95 in-lbf}

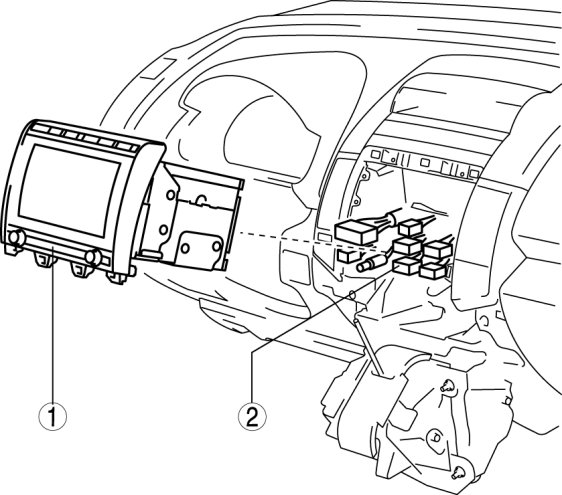

5. Remove in the order indicated in the table.










6. Install in the reverse order of removal.
