DTC P0480 [L3] DETECTION CONDITIONS AND POSSIBLE CAUSES
| DTC P0480 |
Fan control circuit problem |
| DETECTION CONDITION |
- The PCM monitors the input voltages from the fan control module. If the voltage remains low or high, the PCM determines that fan control circuit has malfunction.
Diagnostic support note
- This is an continuous monitor (Other).
- The MIL does not illuminate.
- FREEZE FRAME DATA (Mode 2/Mode 12) is not available.
- The DTC is stored in the PCM memory.
|
| POSSIBLE CAUSE |
- Fan control module connector or terminal malfunction

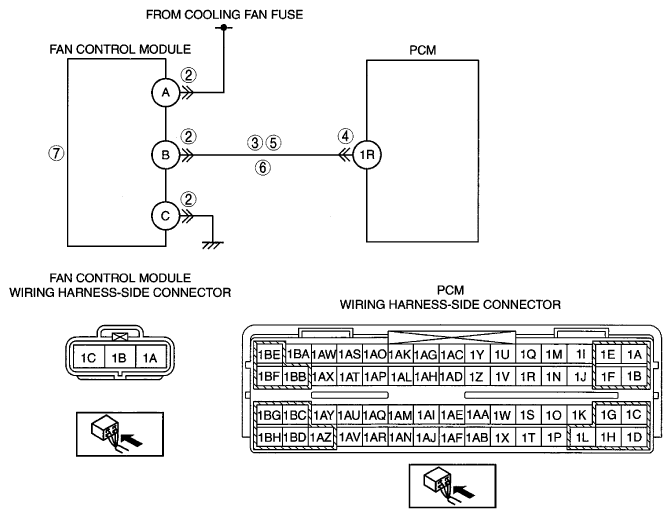

- Short to ground in the wiring harness between fan control module terminal B and PCM terminal 1R
- PCM connector or terminal malfunction
- Short to power supply in the wiring harness between fan control module terminal B and PCM terminal 1R
- Open circuit in the wiring harness between fan control module terminal B and PCM terminal 1R
- Fan control module malfunction
- PCM malfunction
|
