Keyless Entry System Wiring Diagram - Advanced Keyless Entry and Start System

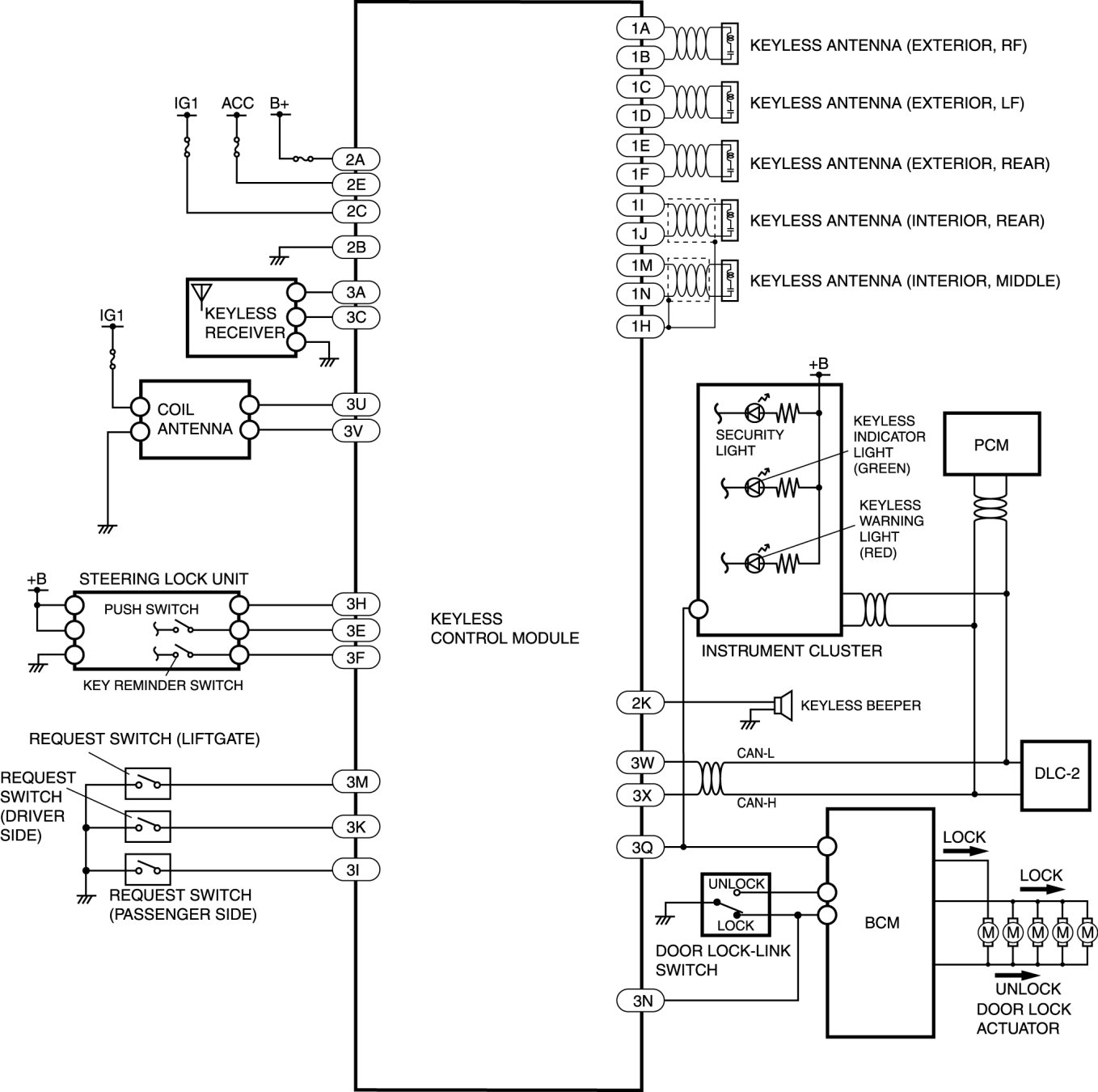

KEYLESS ENTRY SYSTEM WIRING DIAGRAM [ADVANCED
KEYLESS ENTRY
AND START SYSTEM]
