Automatic Transaxle Location Index - AW6A-EL, AW6AX-EL

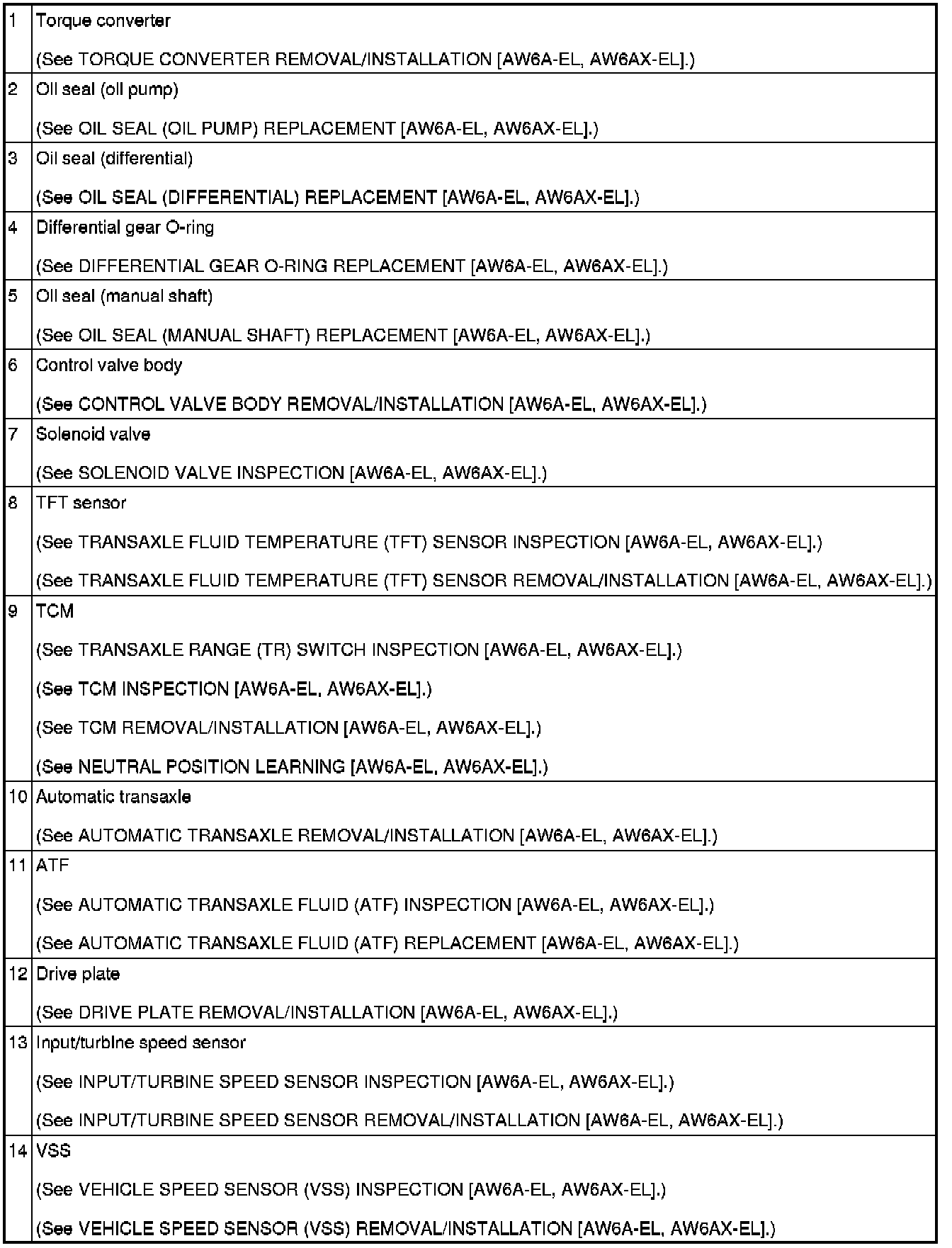

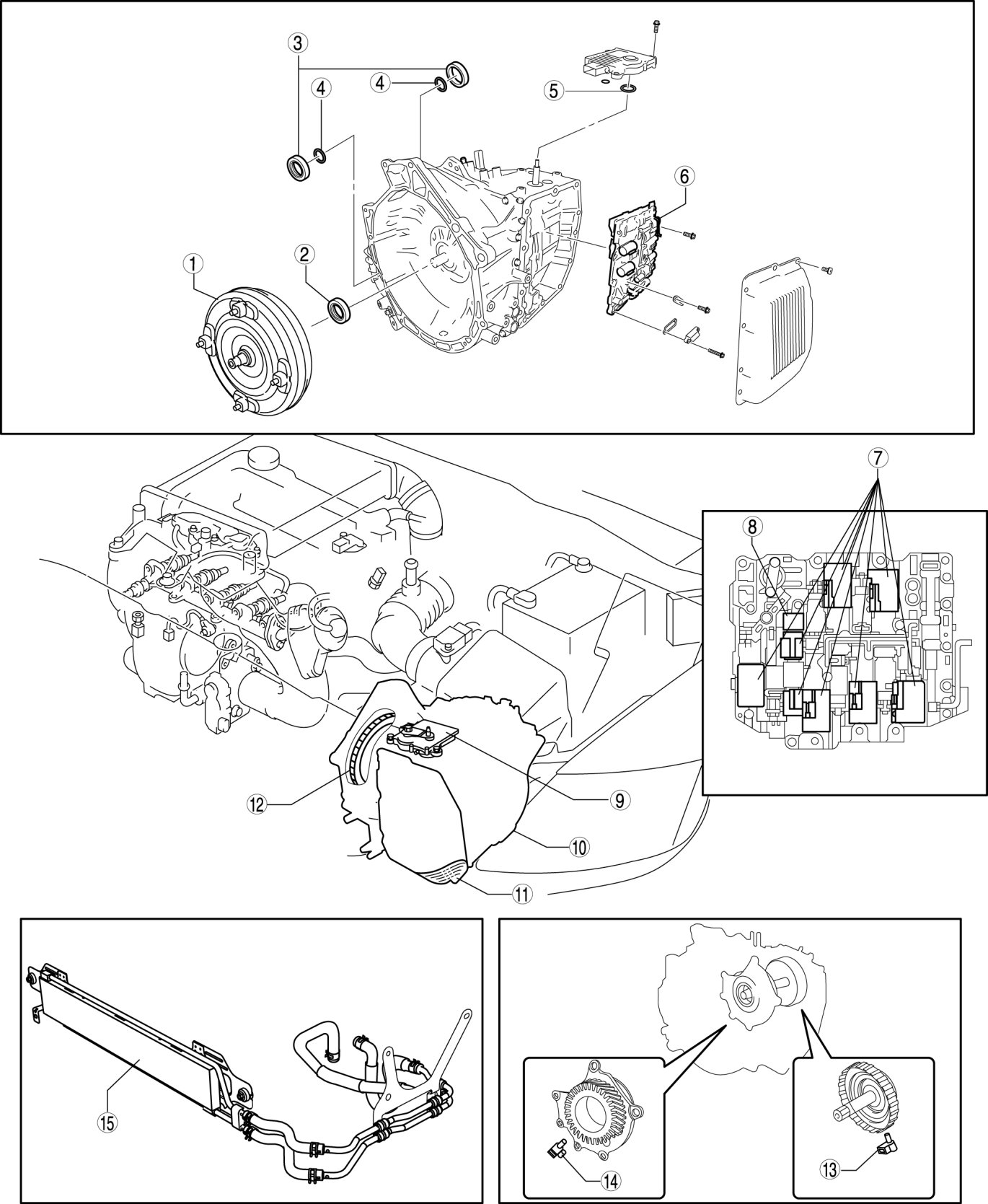

AUTOMATIC TRANSAXLE LOCATION INDEX [AW6A-EL, AW6AX-EL]
