PID/Data Monitor Table - Standard Deployment Control System




PID/DATA MONITOR TABLE [STANDARD DEPLOYMENT CONTROL SYSTEM]

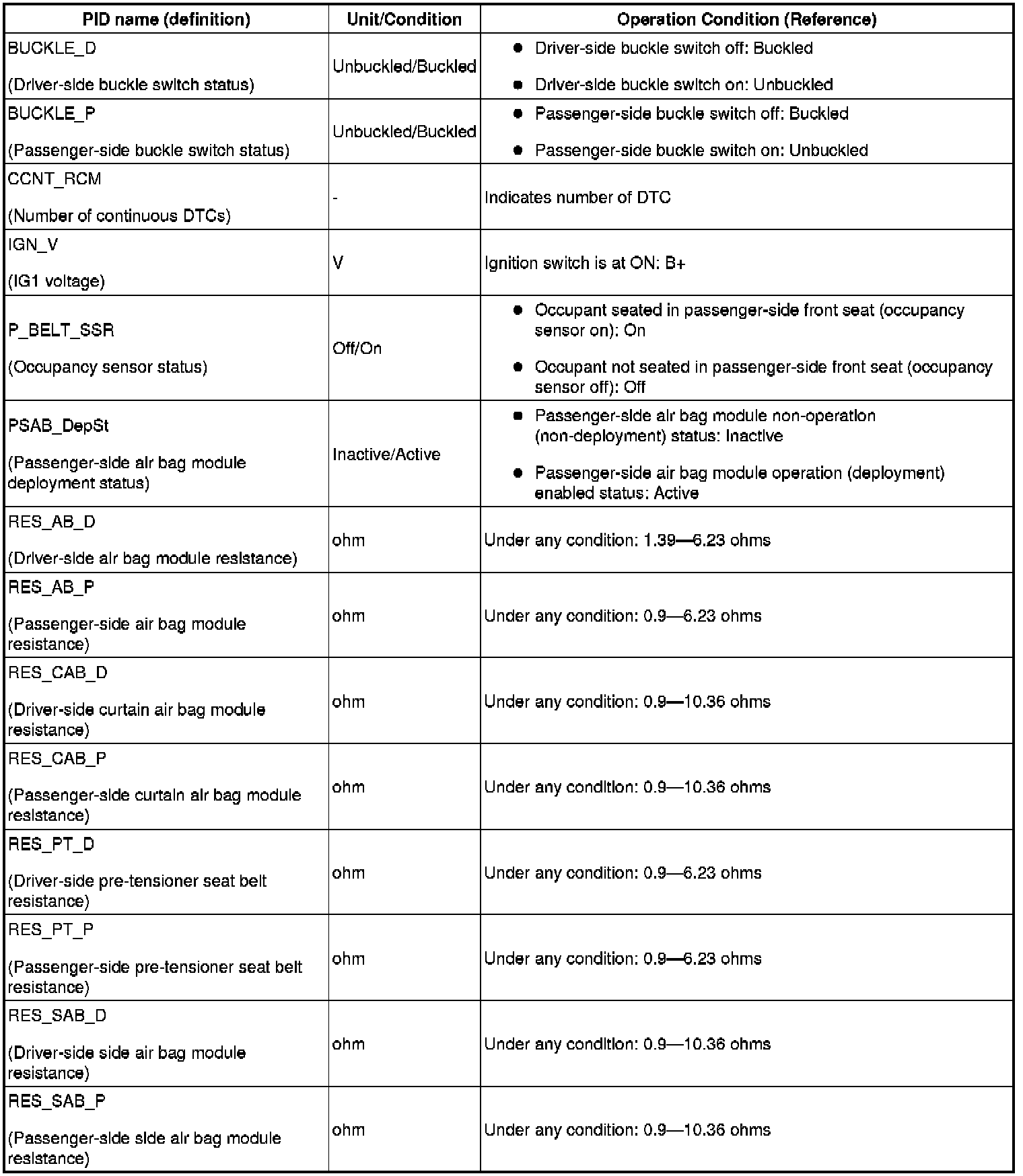

PID/DATA Monitor Table:
