PID/Data Monitor Table - Two-Step Deployment Control System
PID/DATA MONITOR TABLE [TWO-STEP DEPLOYMENT CONTROL SYSTEM]

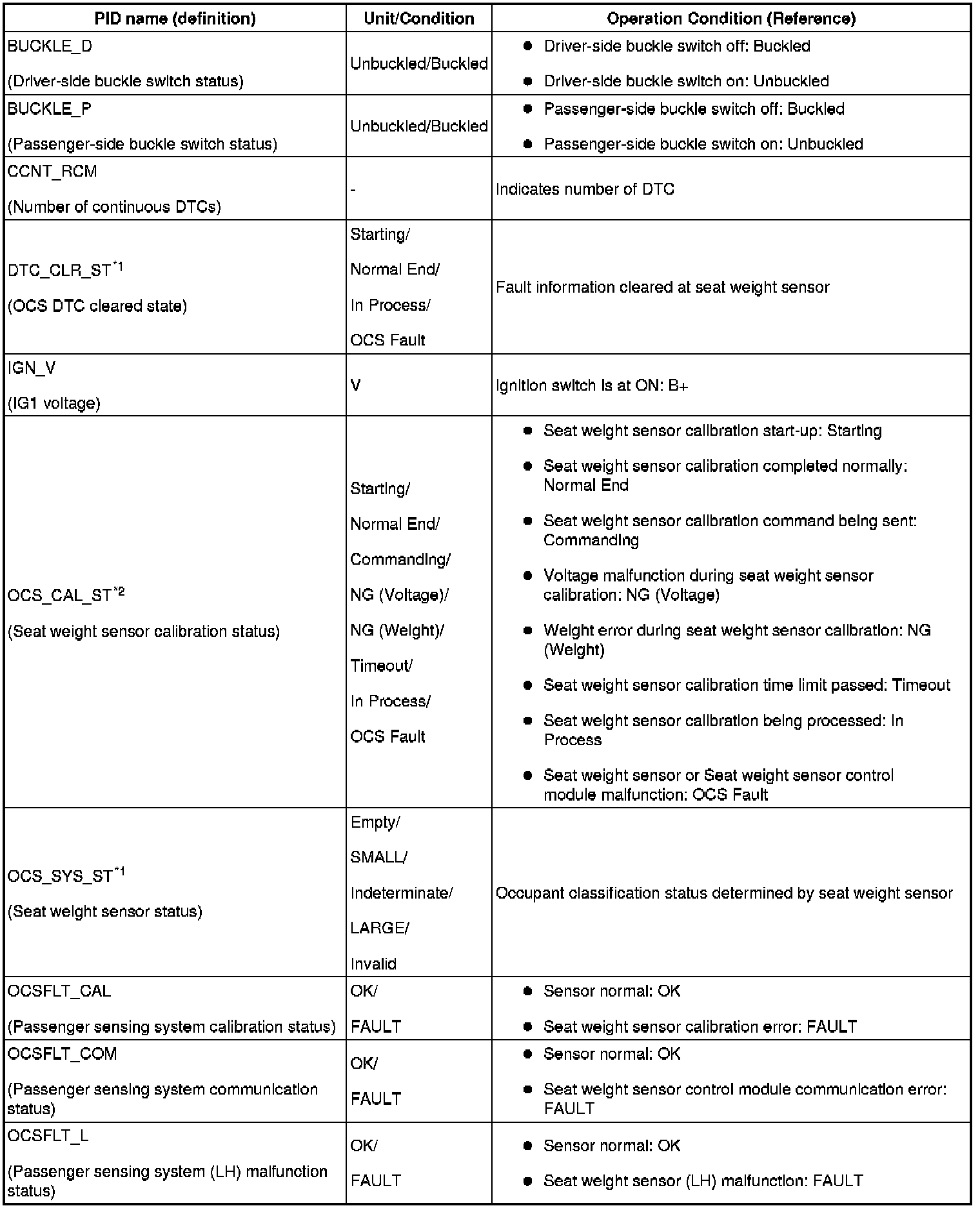

PID/DATA Monitor Table (Part 1):

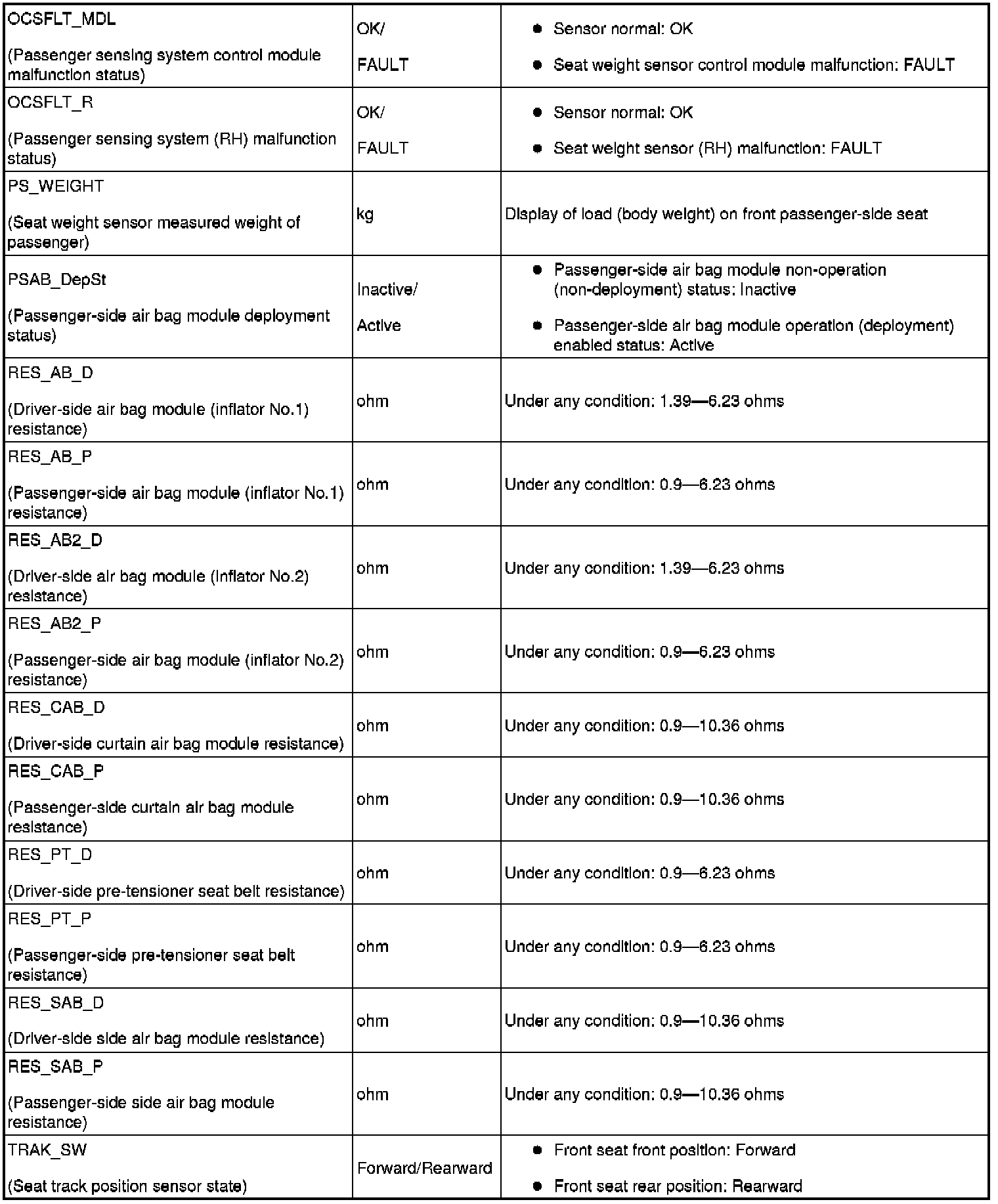

PID/DATA Monitor Table (Part 2):
*1
Used during seat weight sensor calibration setting. Not necessary for diagnostic.
*2
When the calibration error is displayed, the error can be cleared by turning the ignition switch to the LOCK position.
