Monitoring System And Control System Device Relationship Chart [13B-MSP]

x: Applicable

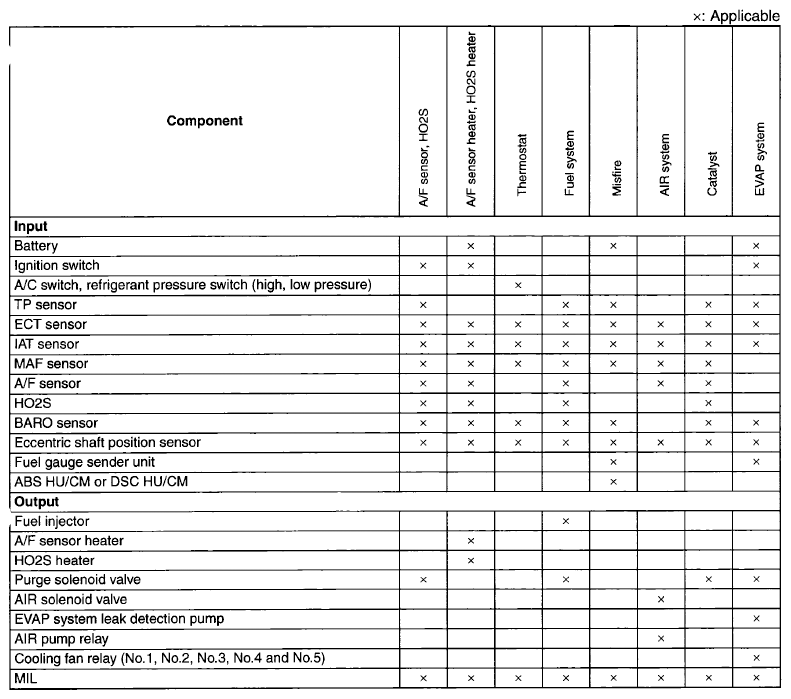

Fig 1: Monitoring System And Control System Device Relationship Chart
G05982291Courtesy of MAZDA MOTORS CORP.
