Request Switch Inspection

REQUEST SWITCH INSPECTION [WITH ADVANCED KEYLESS ENTRY AND START SYSTEM]

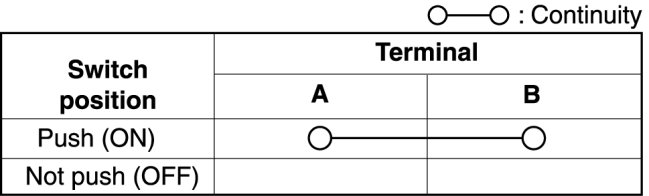

1. Inspect for continuity between request switch terminals A and B.






- If not as specified, replace the request switch.
