Flywheel

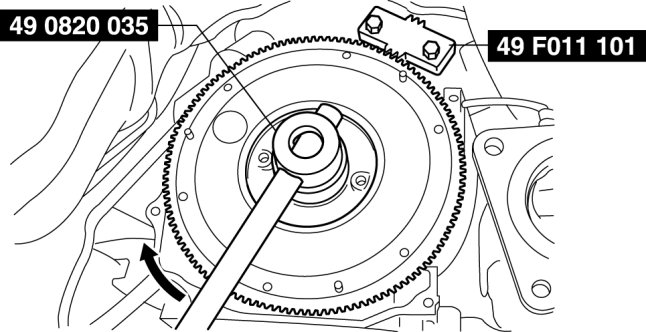

Tighten the locknut using the SST.






Tightening torque 392-490 Nm {40.0-49.9 kgf-m, 289-361 ft-lbf}
