Power Distribution Module

Diagram 0940-1a:

Connectors 0940-1a:

Routing View 0940-1a:

Diagram 0940-1b:

Connectors 0940-1b:

Routing View 0940-1b:

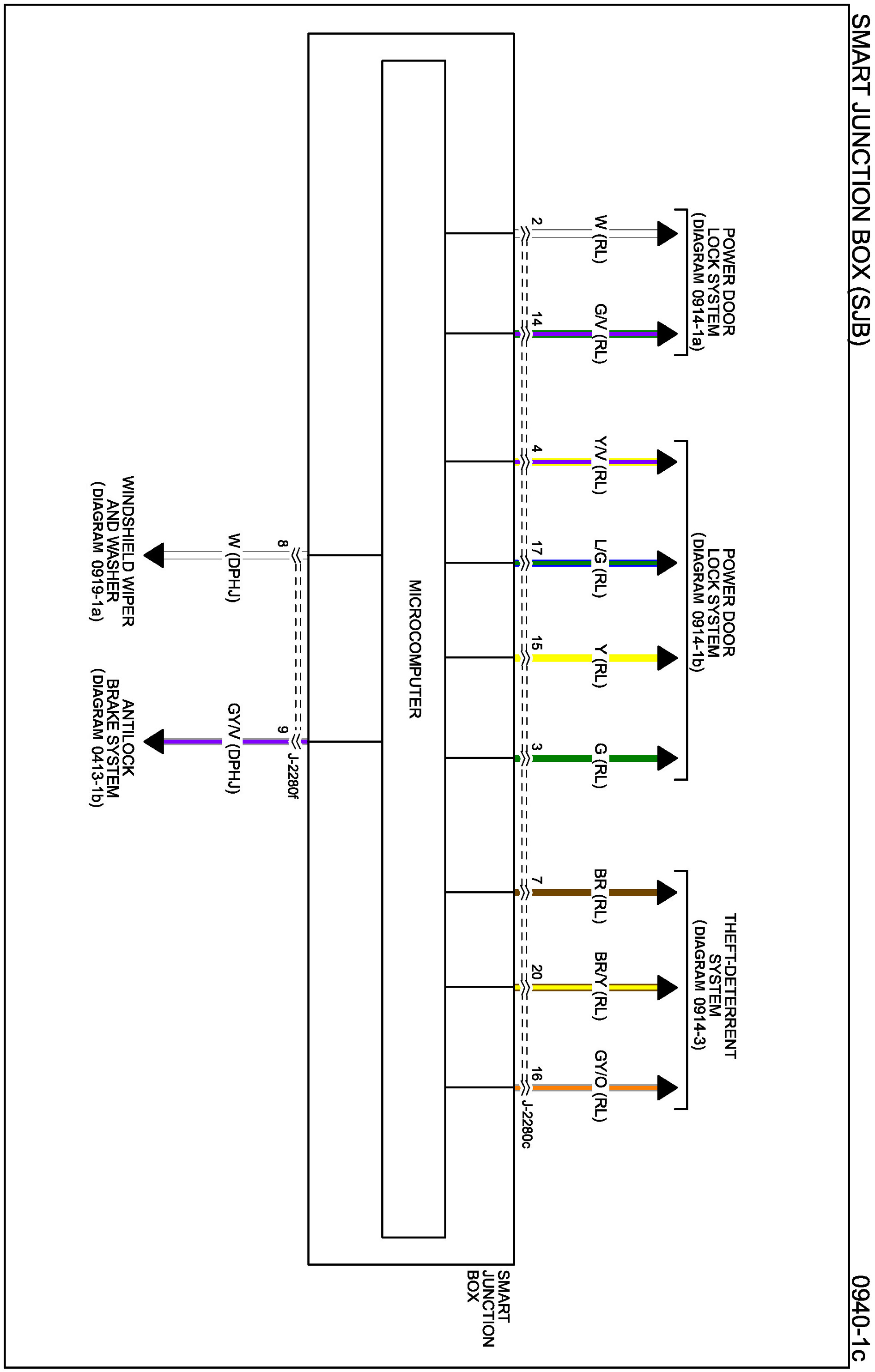

Diagram 0940-1c:

Connectors 0940-1c:

Routing View 0940-1c:

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
