Air Temperature Sensor ( Ambient / Intake ): Testing and Inspection

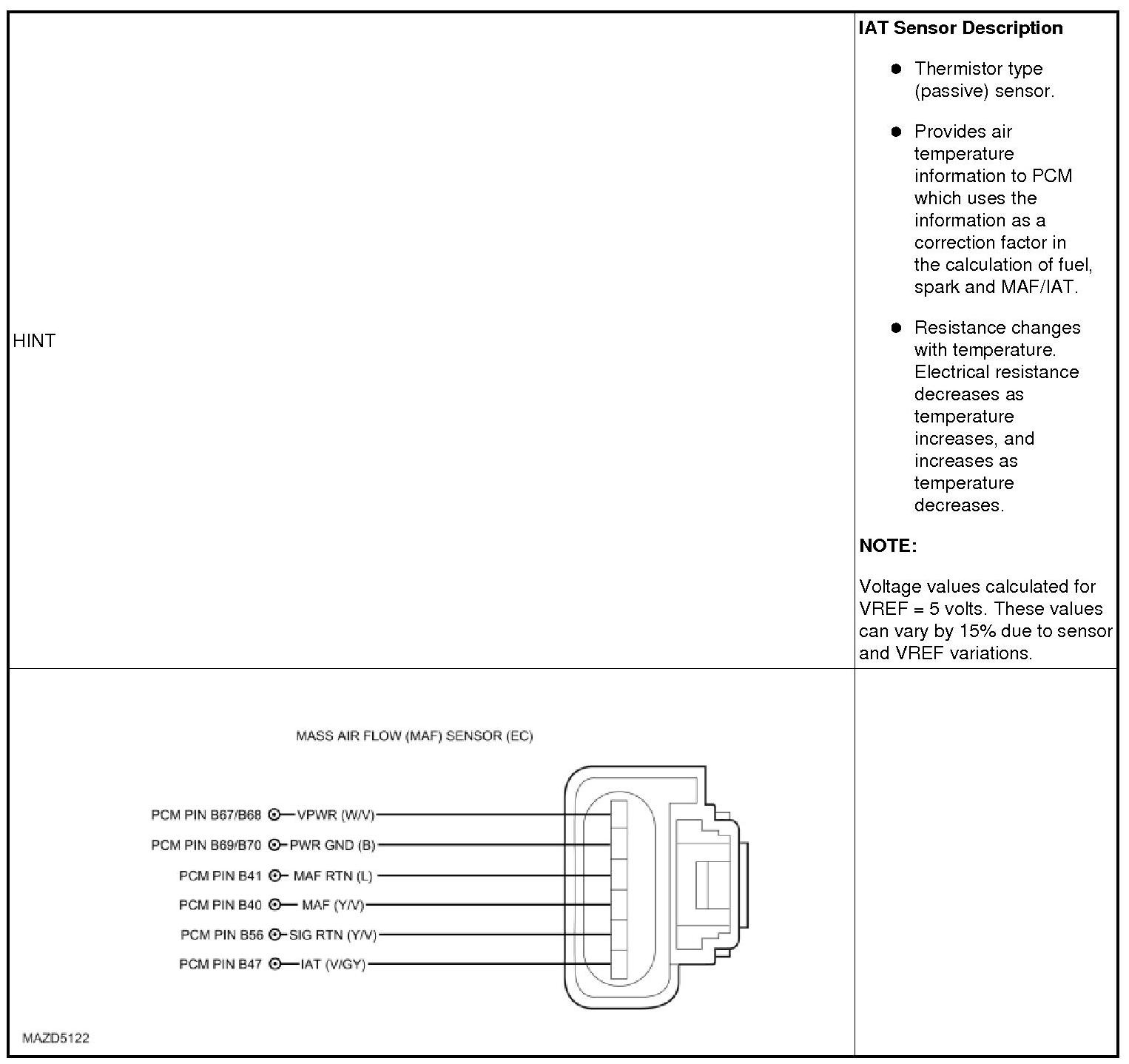

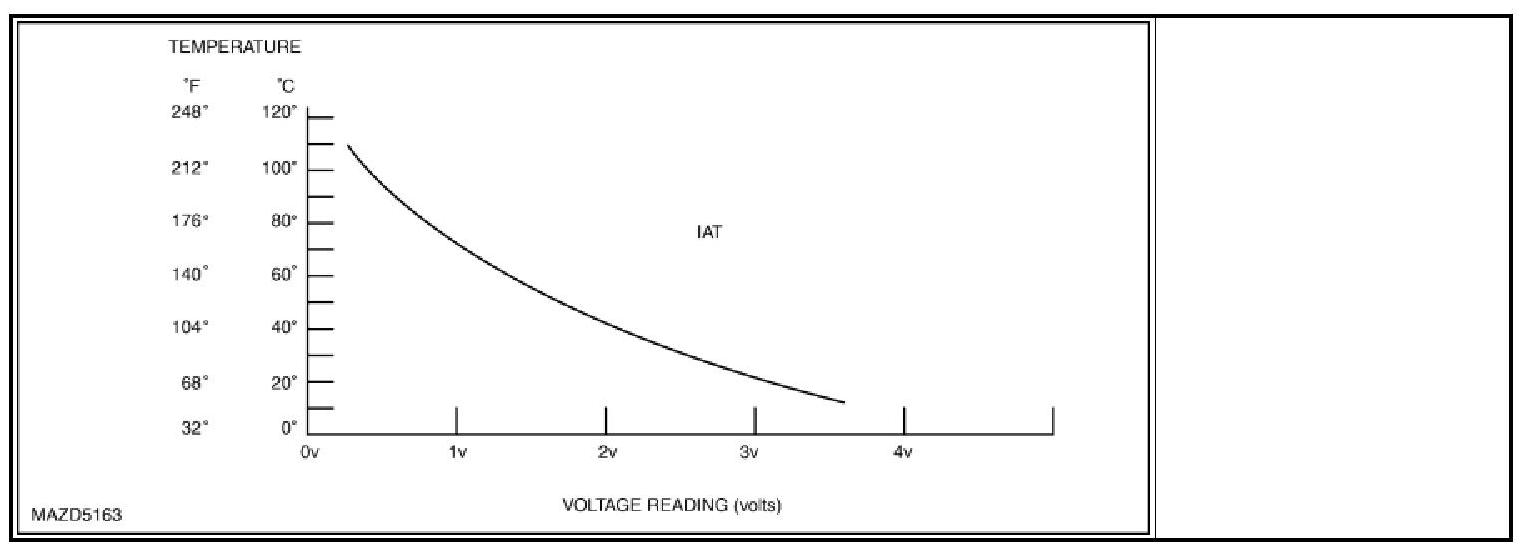

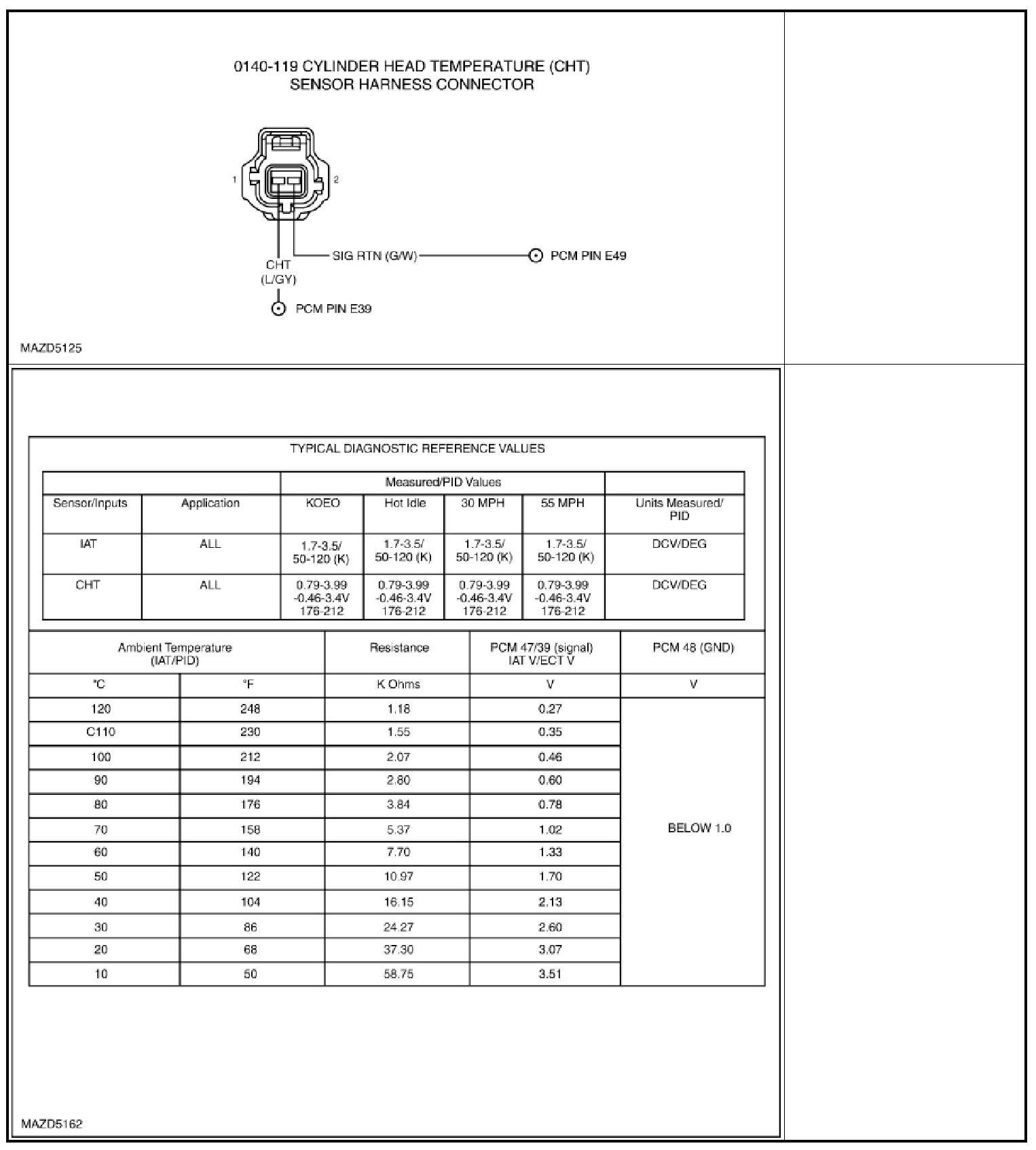

INTAKE AIR TEMPERATURE (IAT) SENSOR

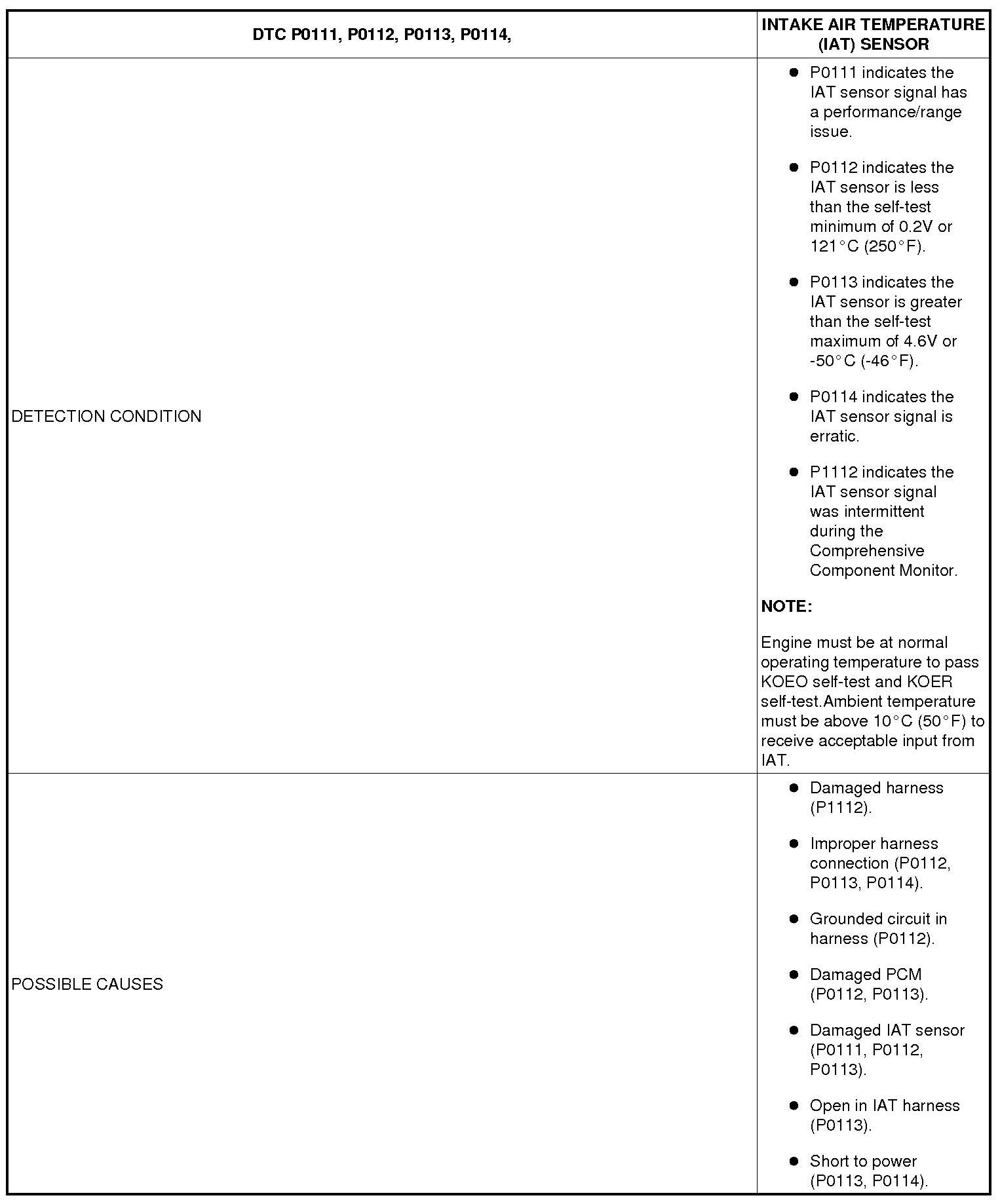

Detection Condition/Possible Causes:

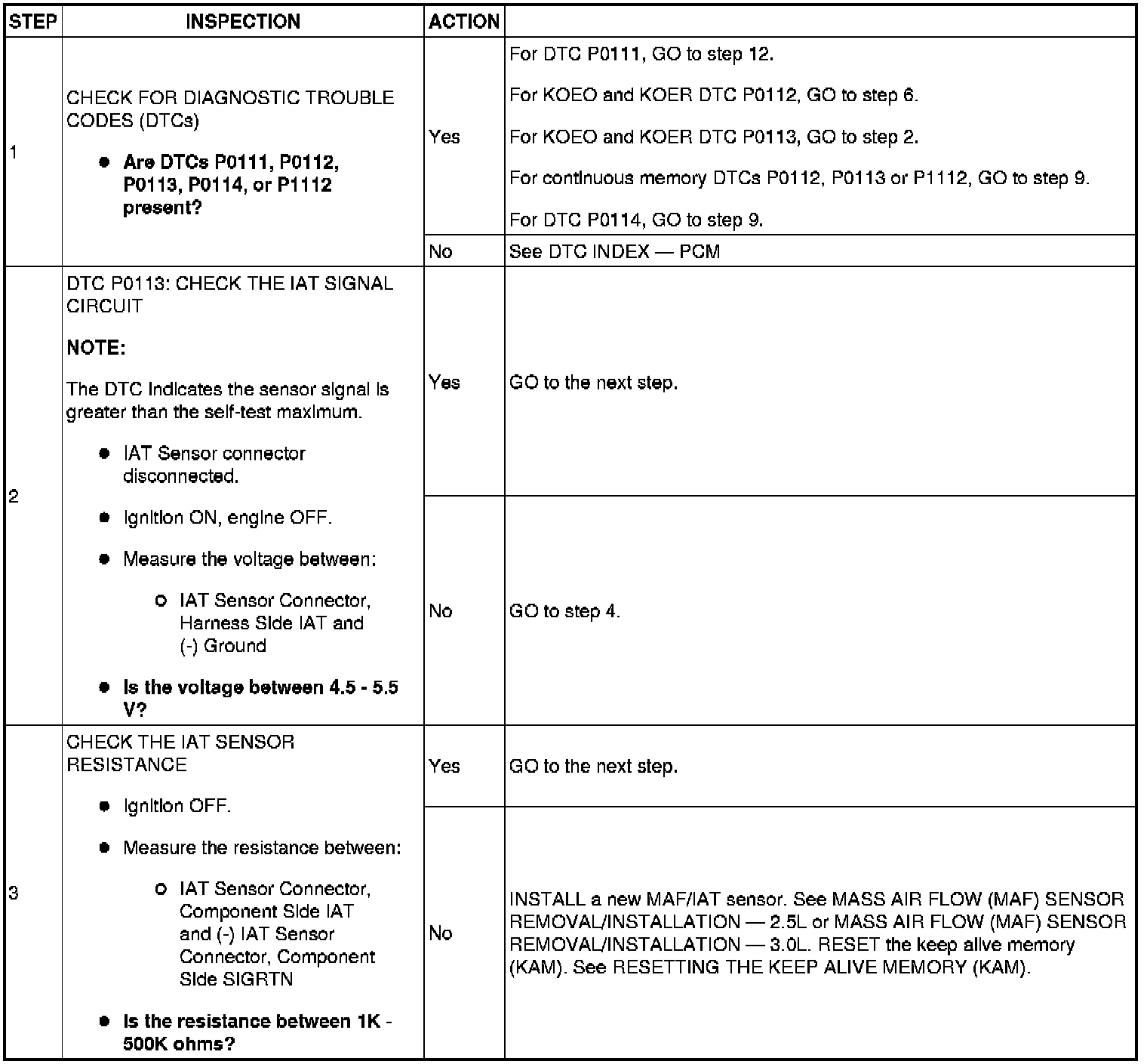

Step 1-Step 3:

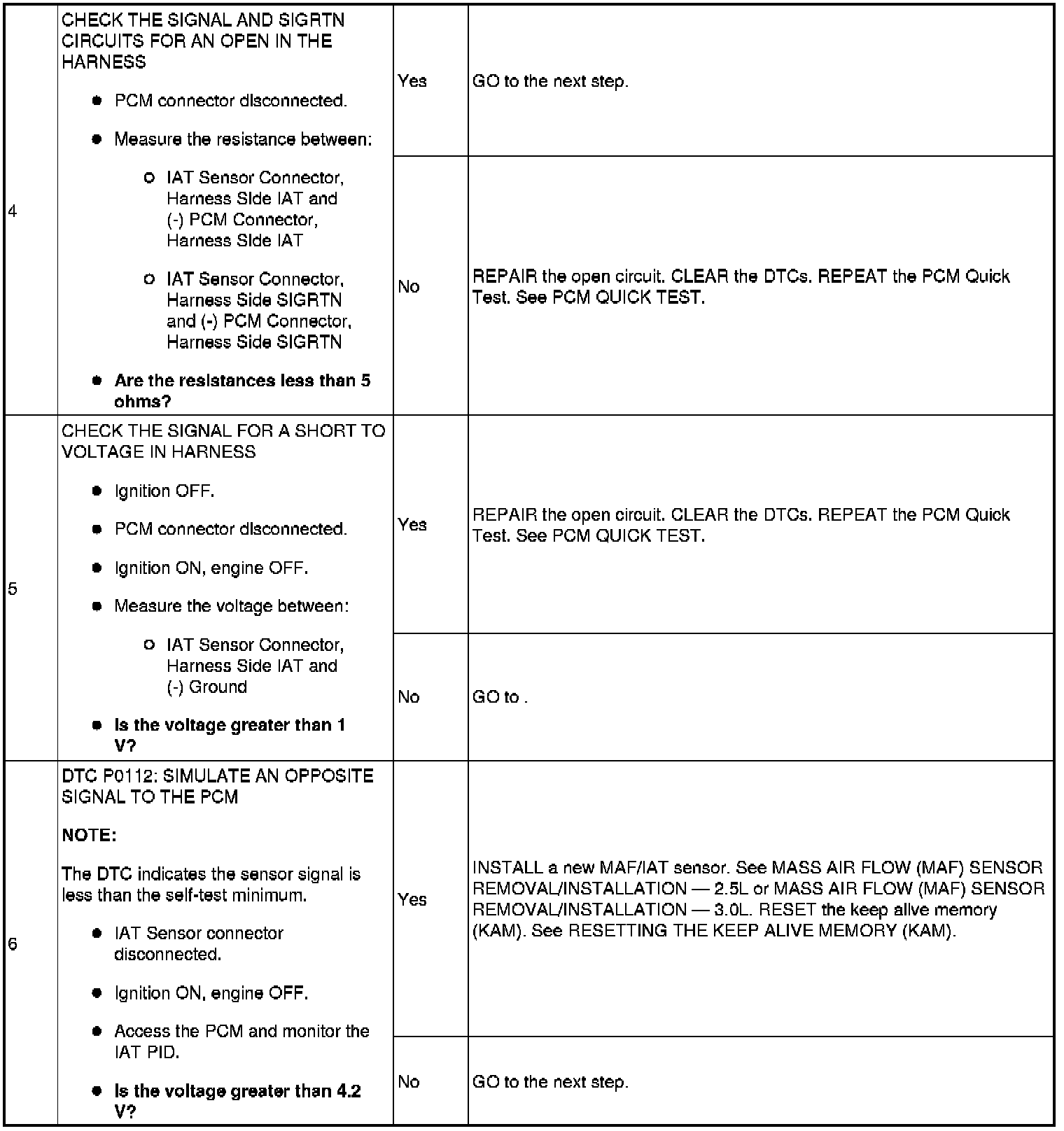

Step 4-Step 6:

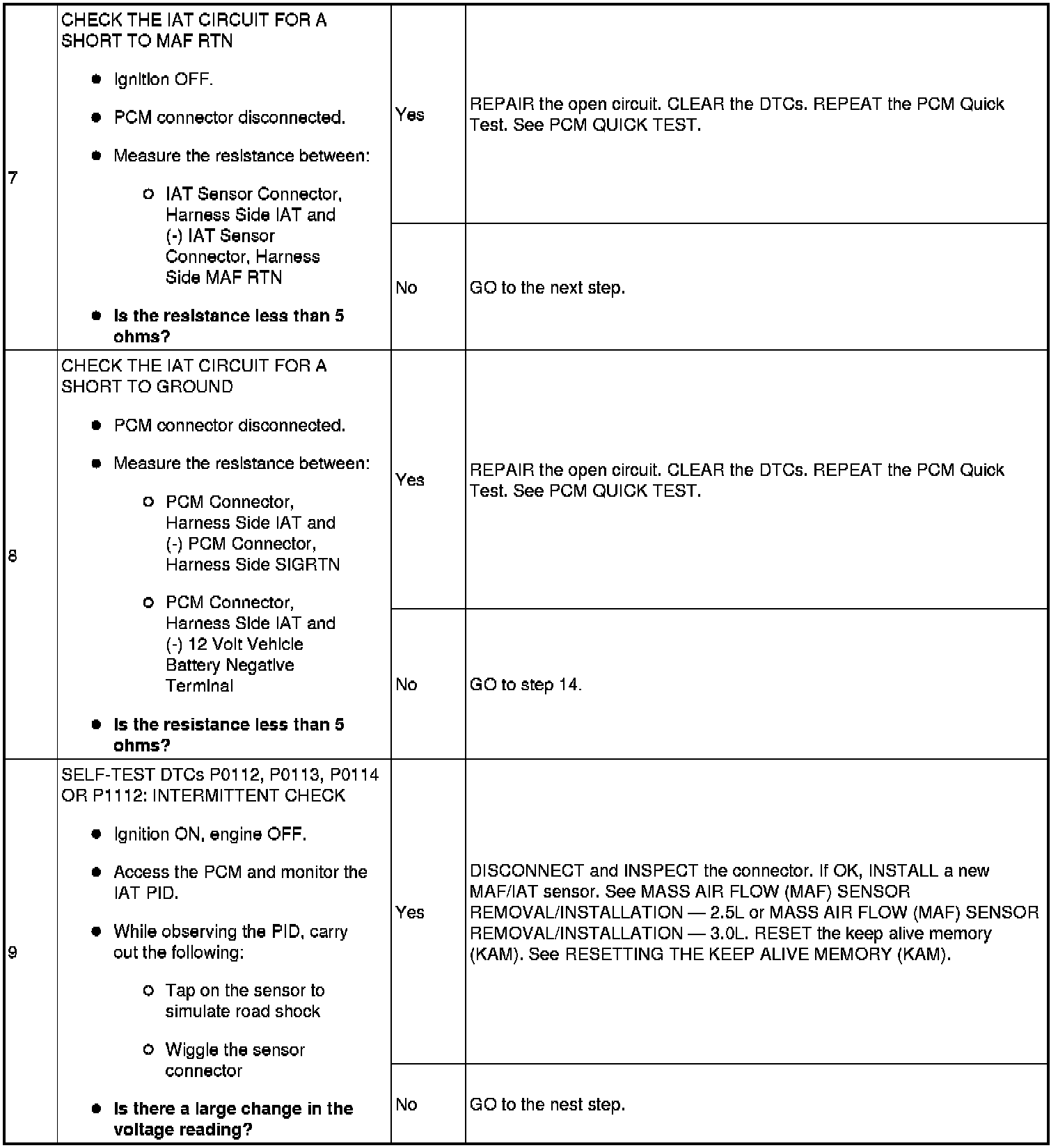

Step 7-Step 9:

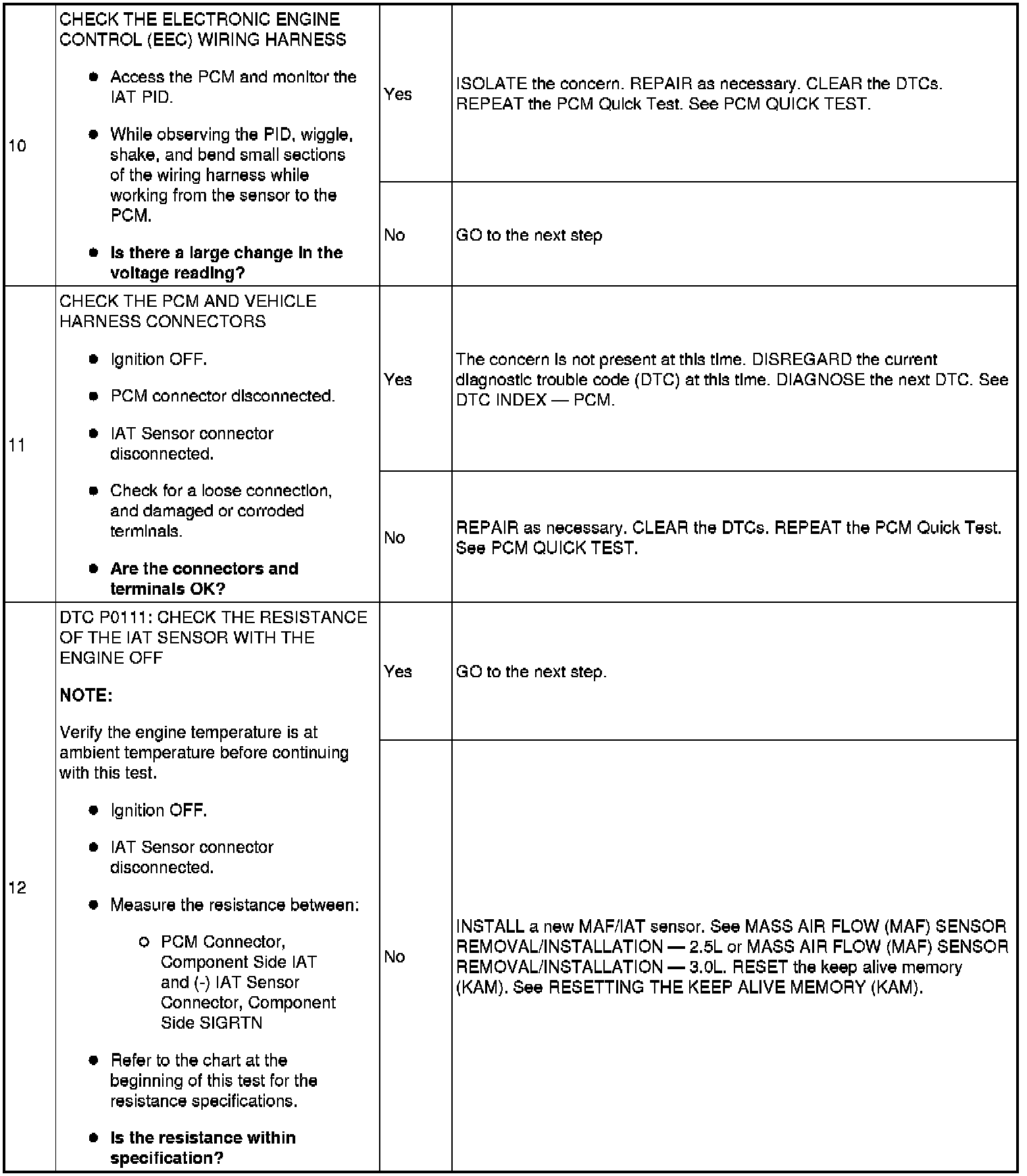

Step 10-Step 12:

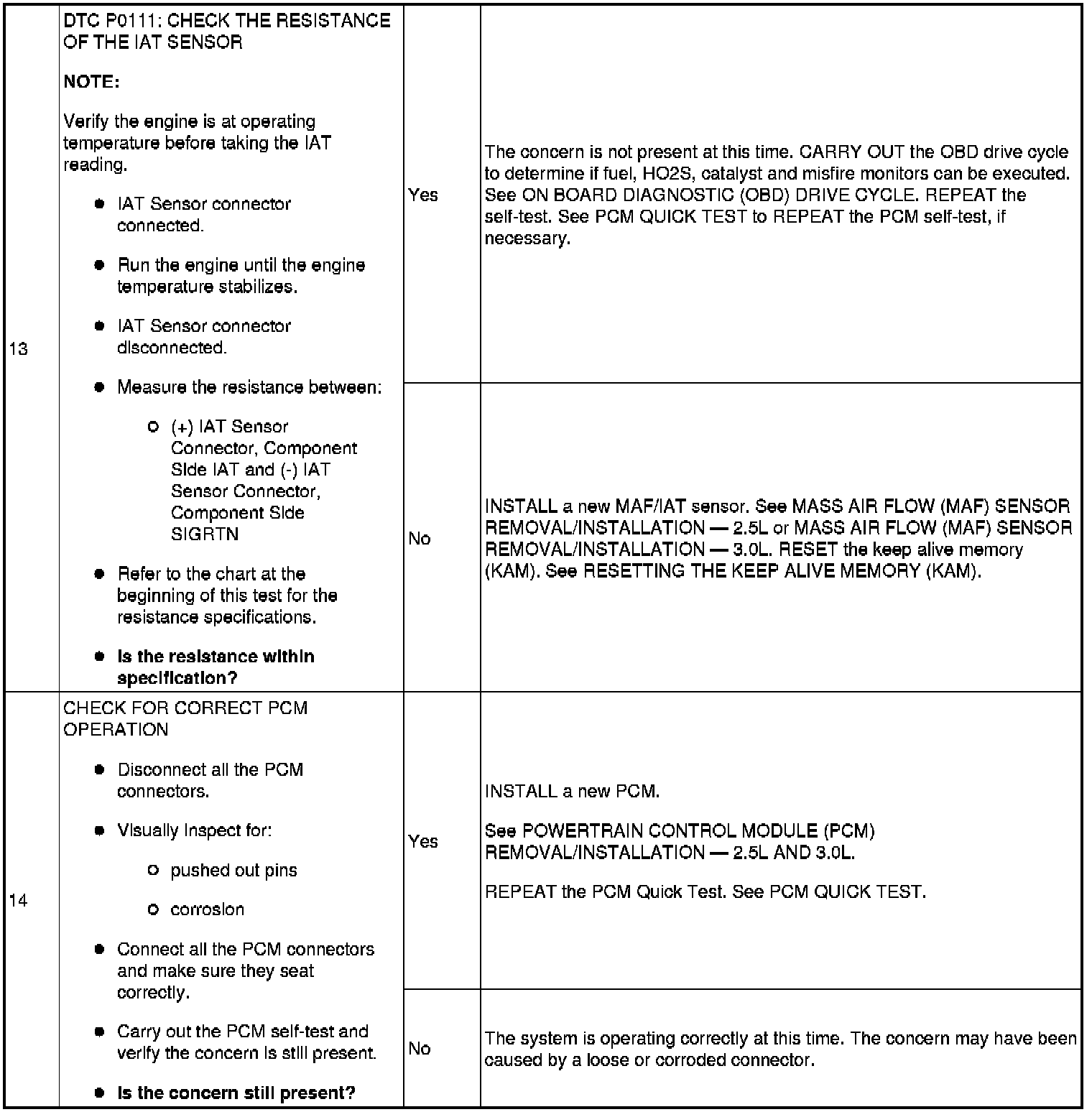

Step 13-Step 14:
