Adaptive Fuel Control




ADAPTIVE FUEL CONTROL

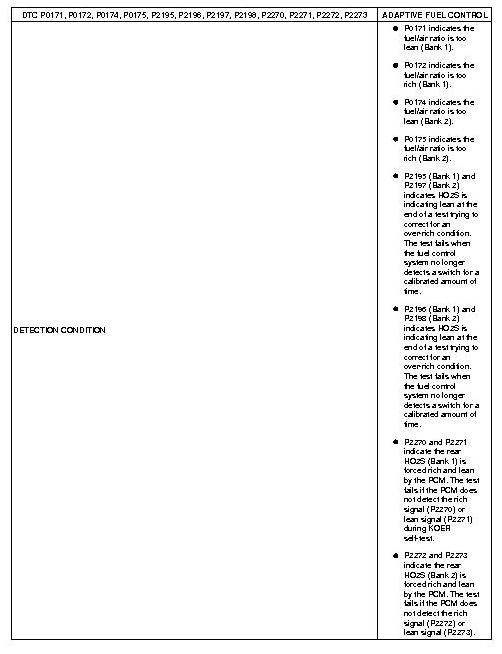

Detection Condition:

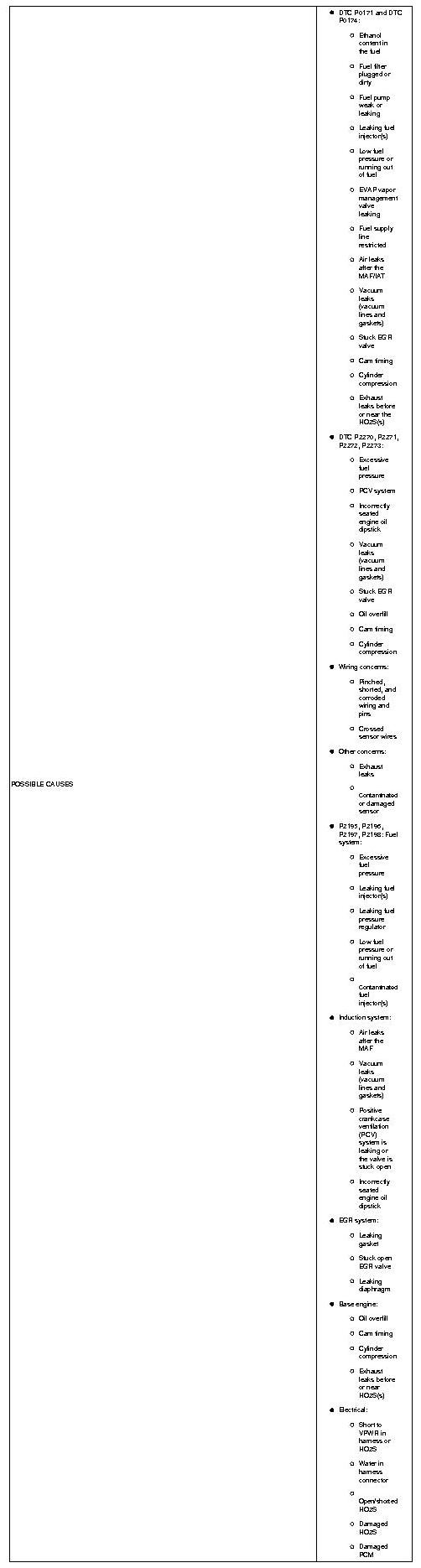

Possible Causes:

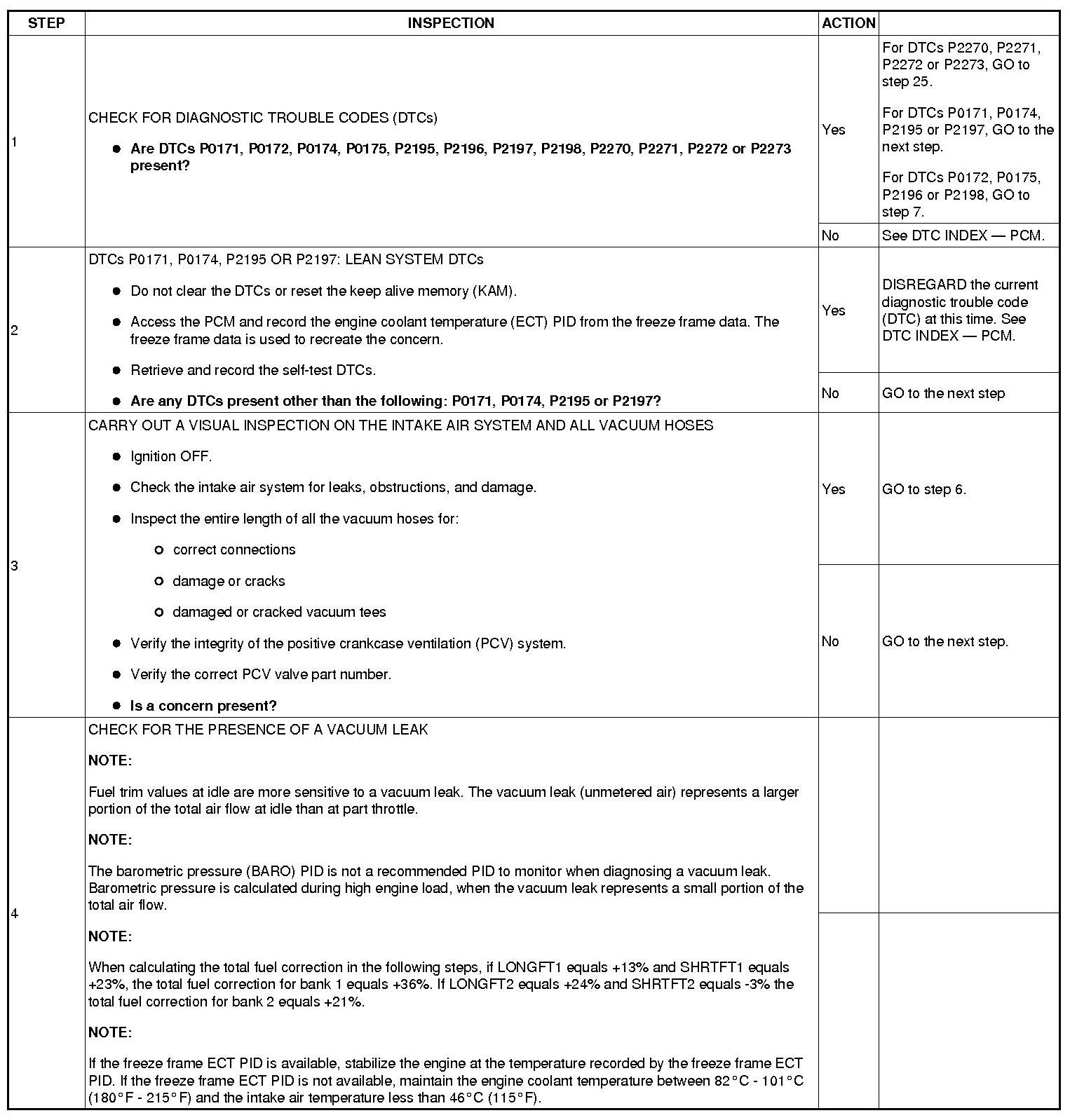

Step 1-Step 4:

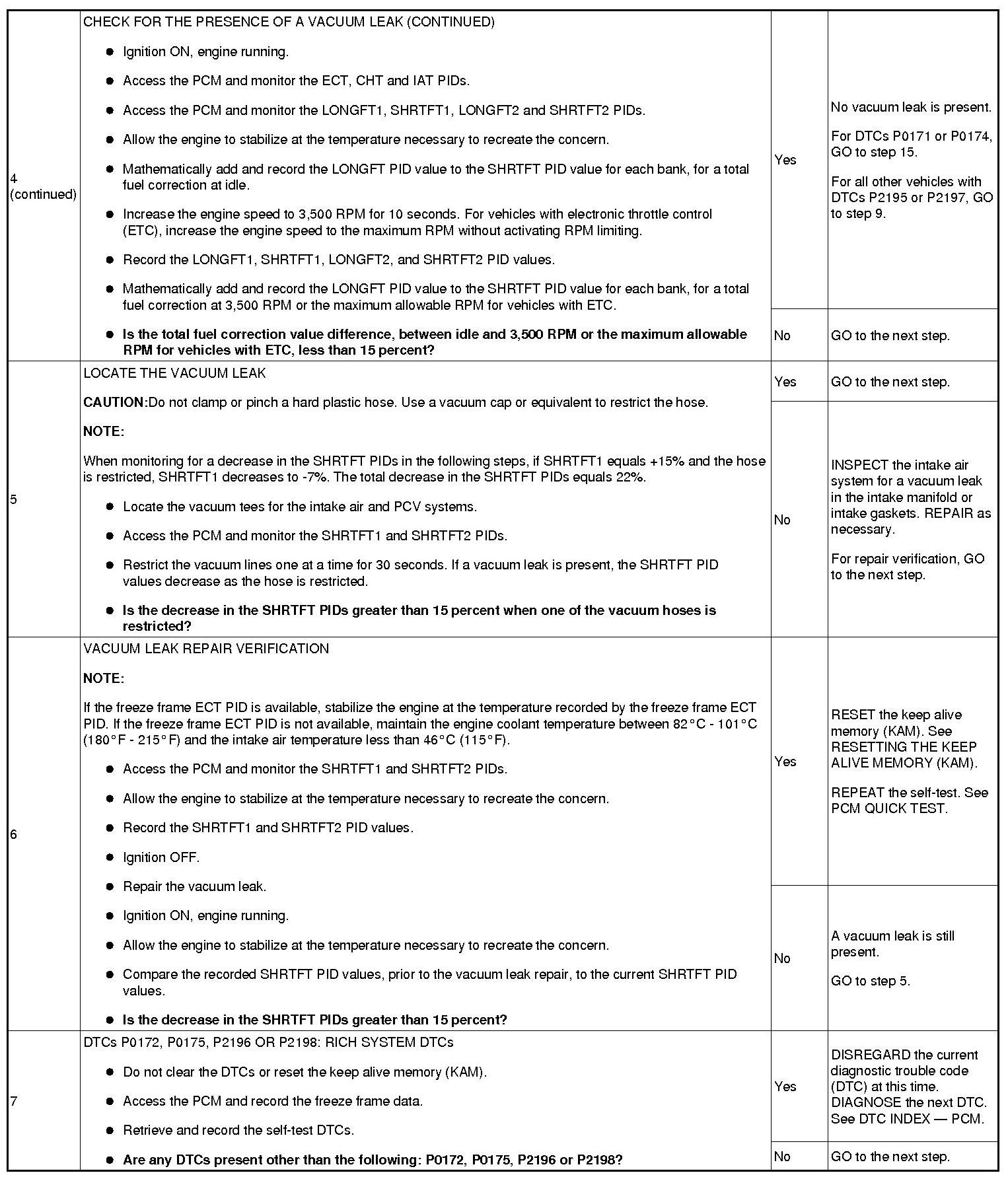

Step 4 (Continued)-Step 7:

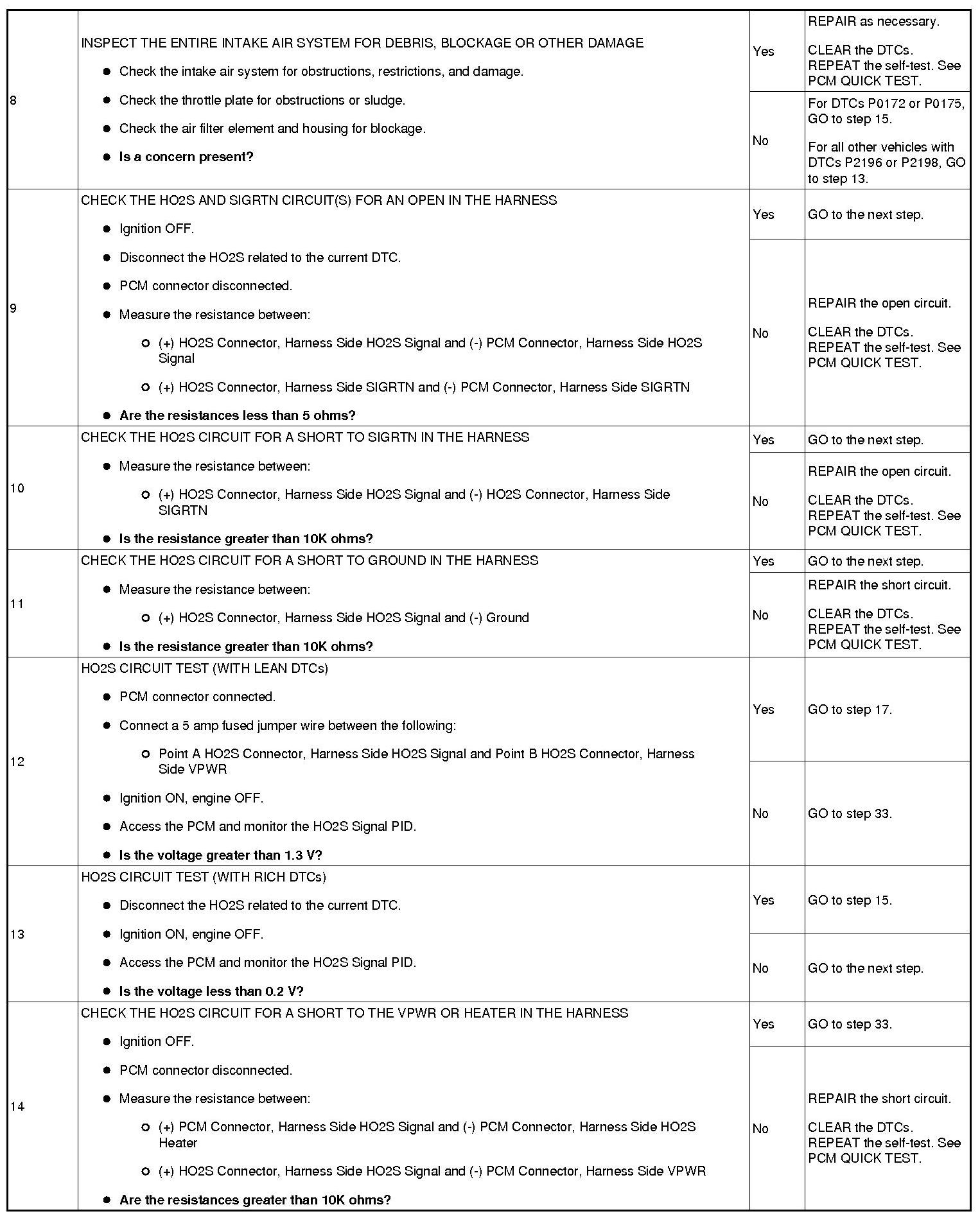

Step 8-Step 14:

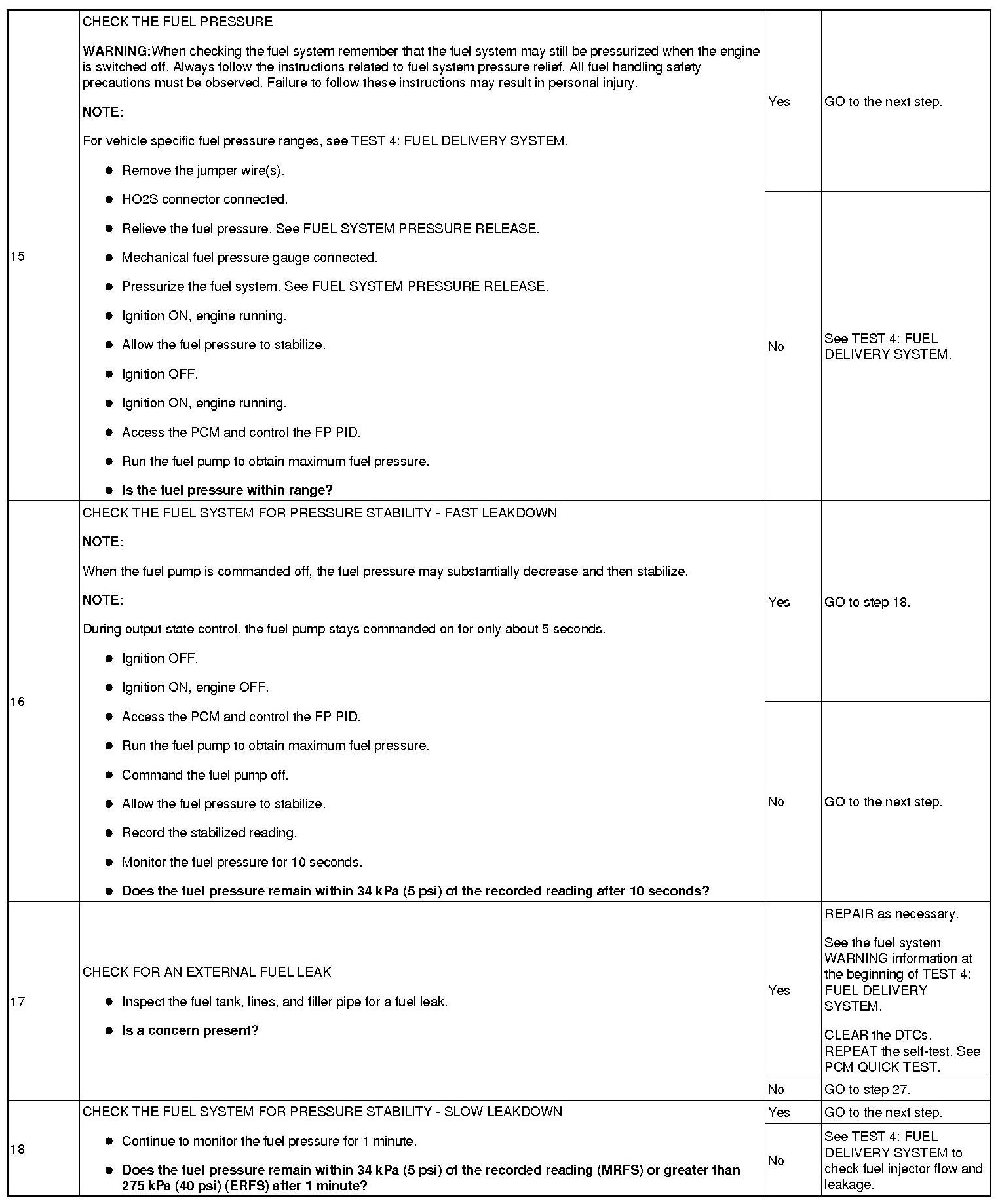

Step 15-Step 18:

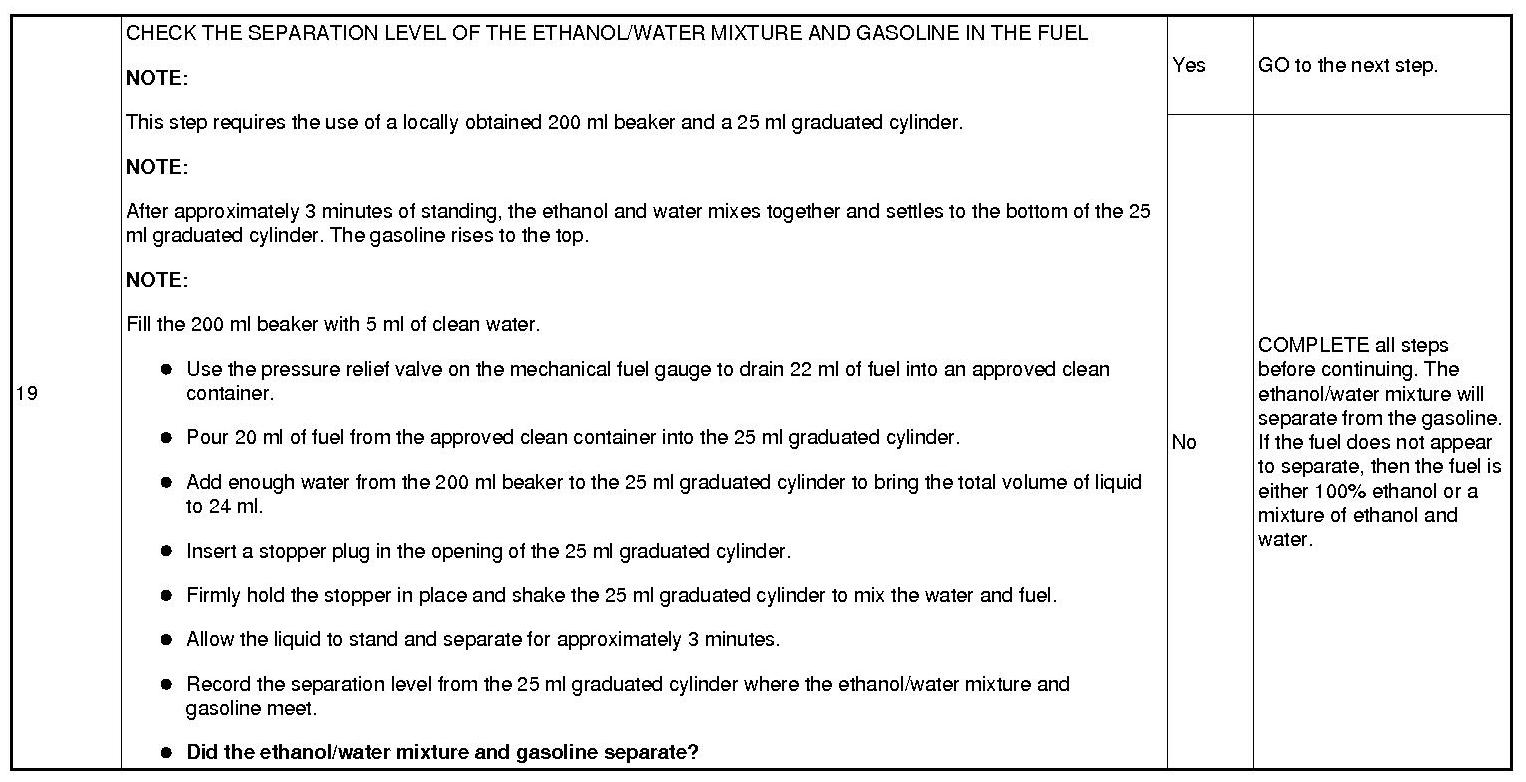

Step 19:

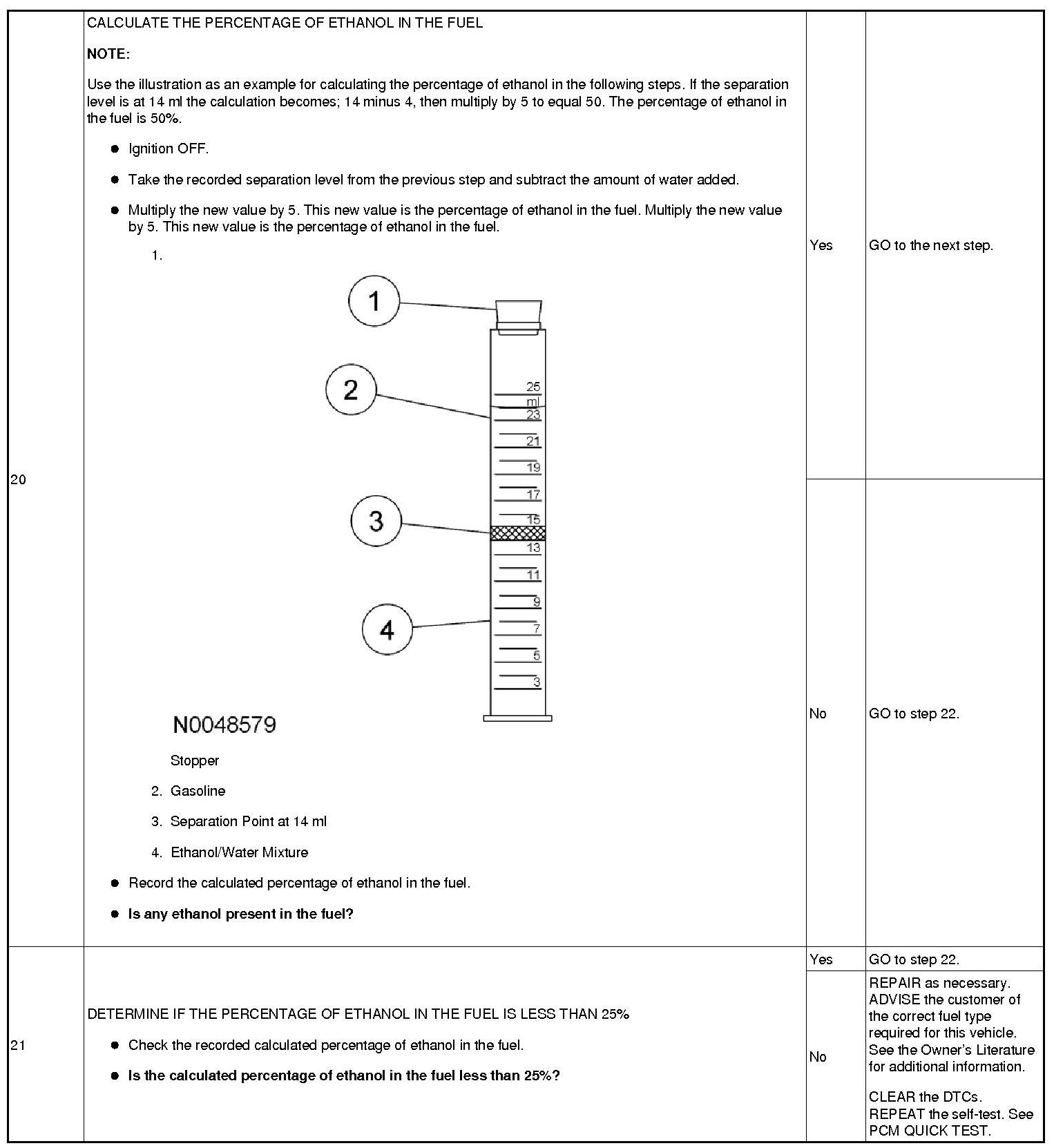

Step 20-Step 21:

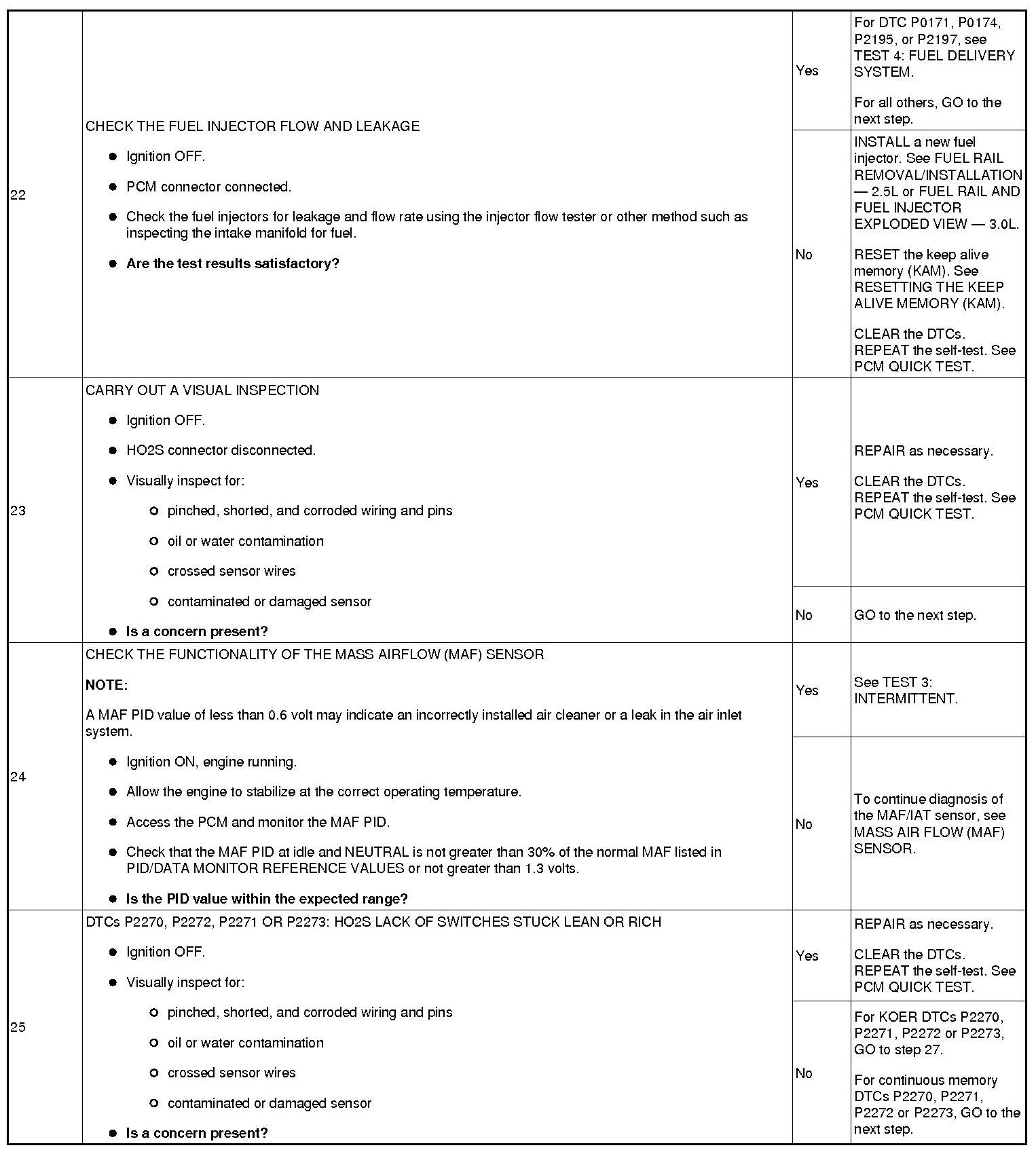

Step 22-Step 25:

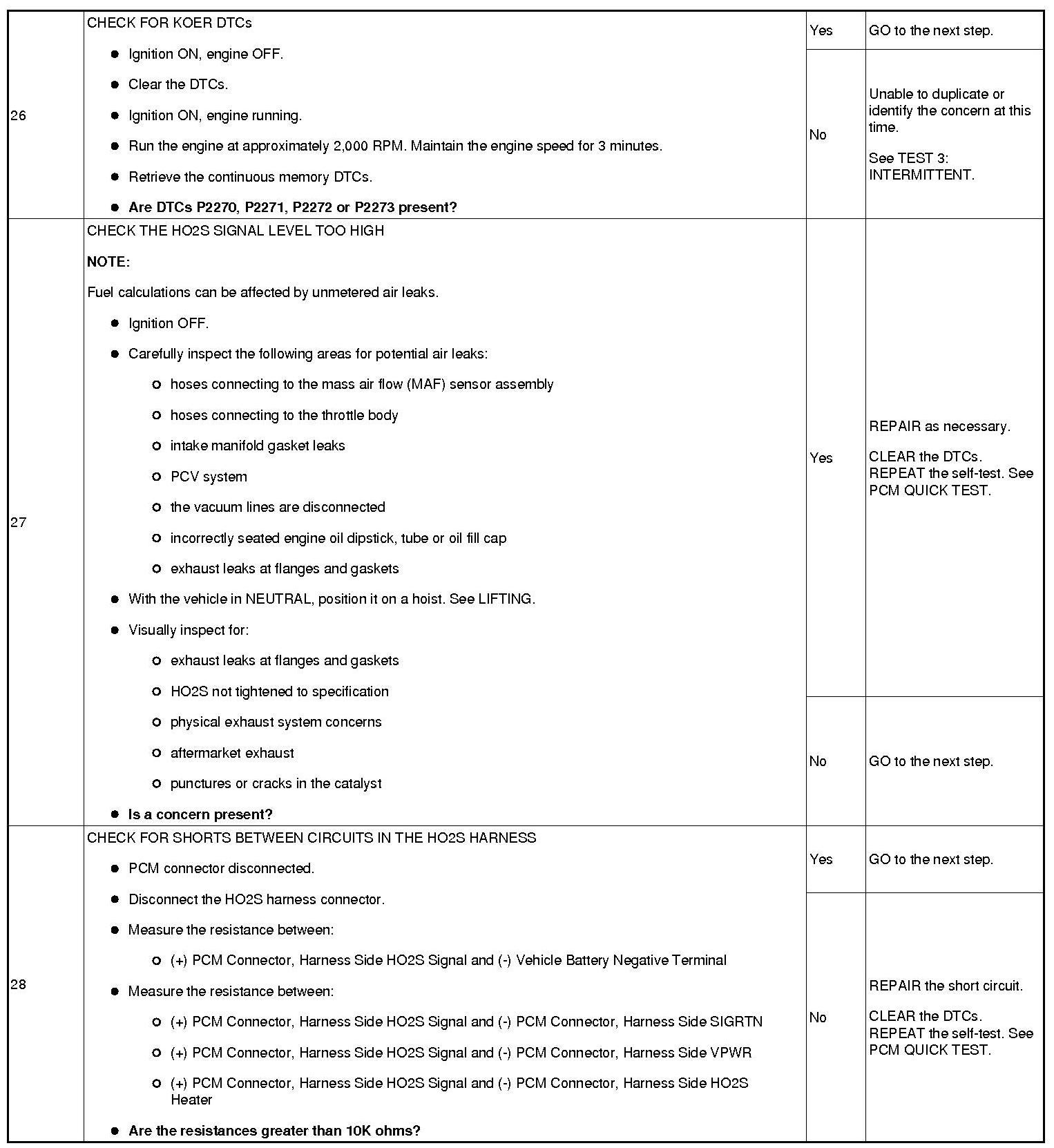

Step 26-Step 28:

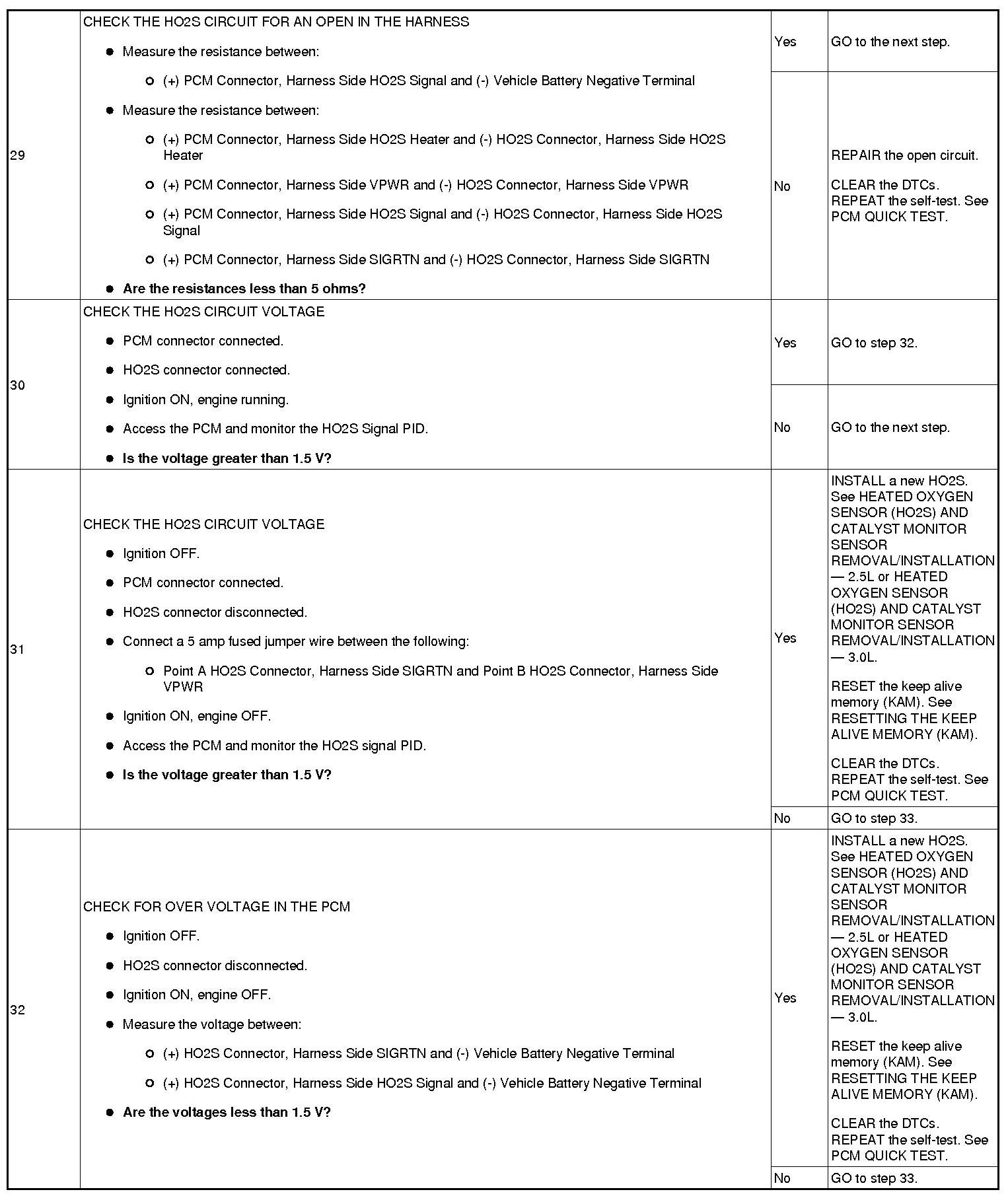

Step 29-Step 32:

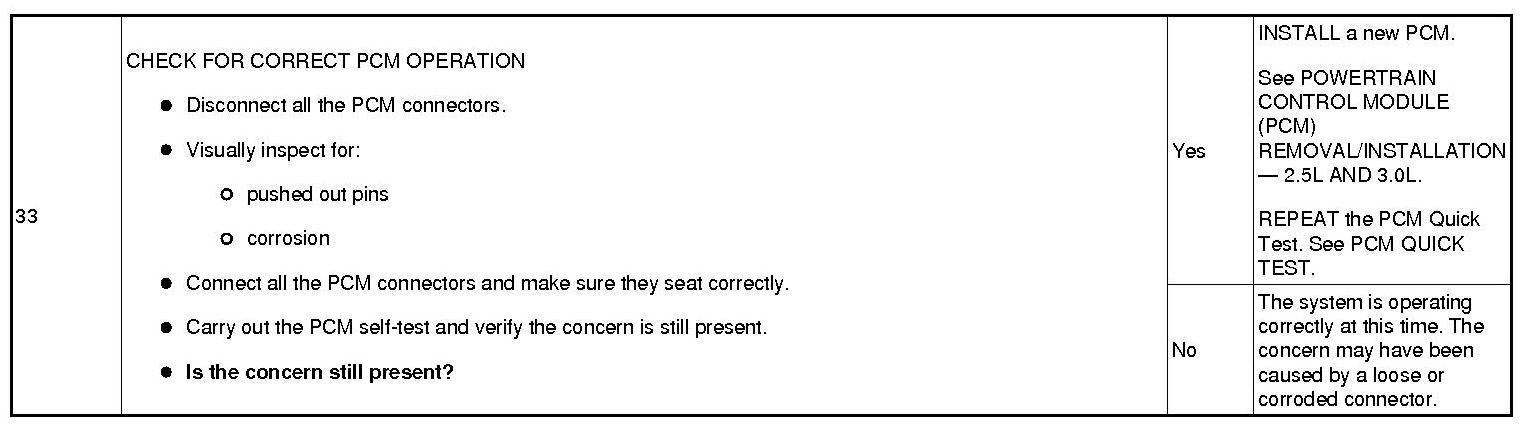

Step 33:
