Test 3: Intermittent

TEST 3: INTERMITTENT

WARNING:When carrying out any of the test steps, always be aware of hands, clothing or tools near cooling fans or hot surfaces.
NOTE:PIDs selected from the PID/DATA MONITOR table will display commanded values only. Digital multimeter measurements will display actual values.

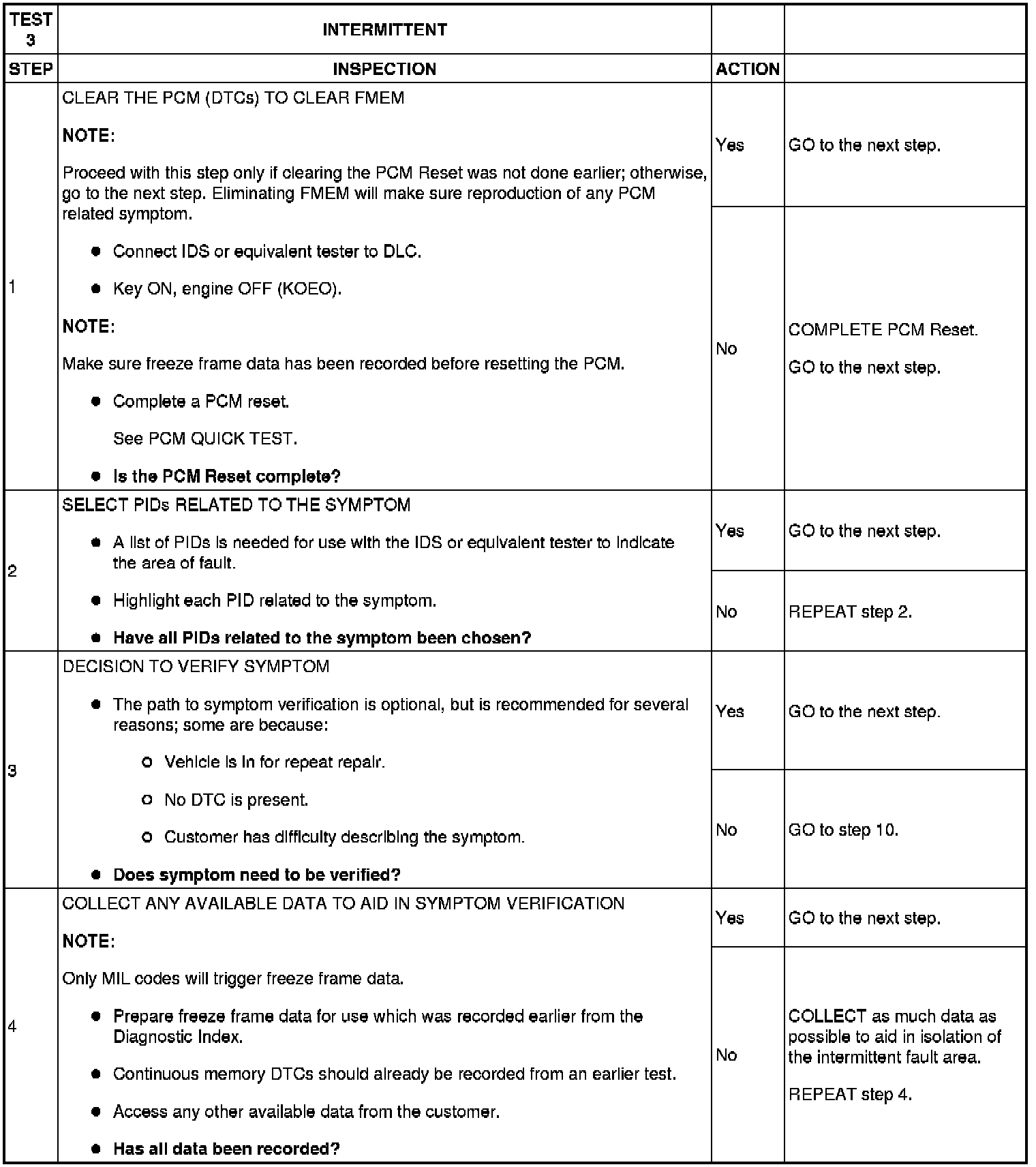

Step 1-Step 4:

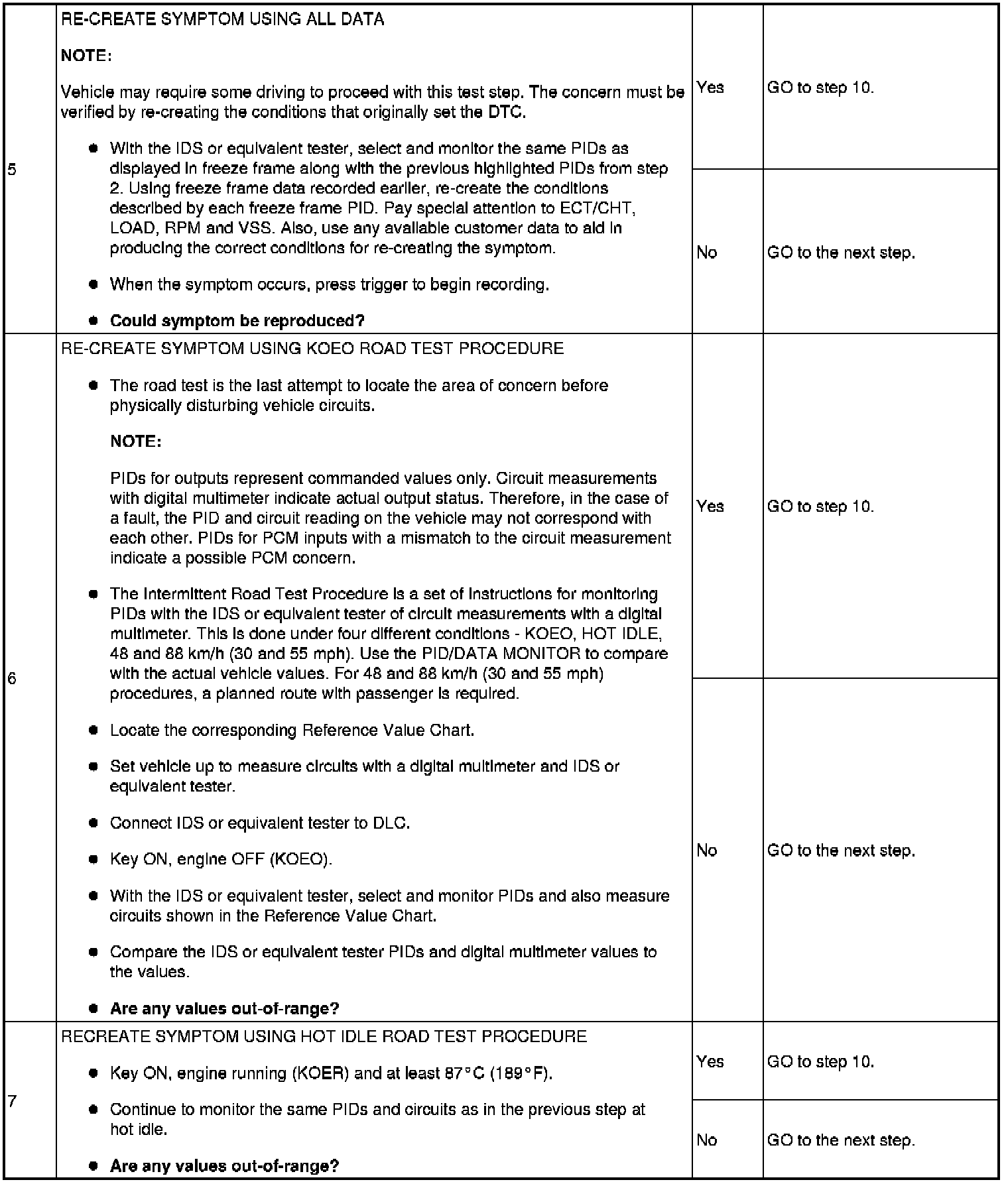

Step 5-Step 7:

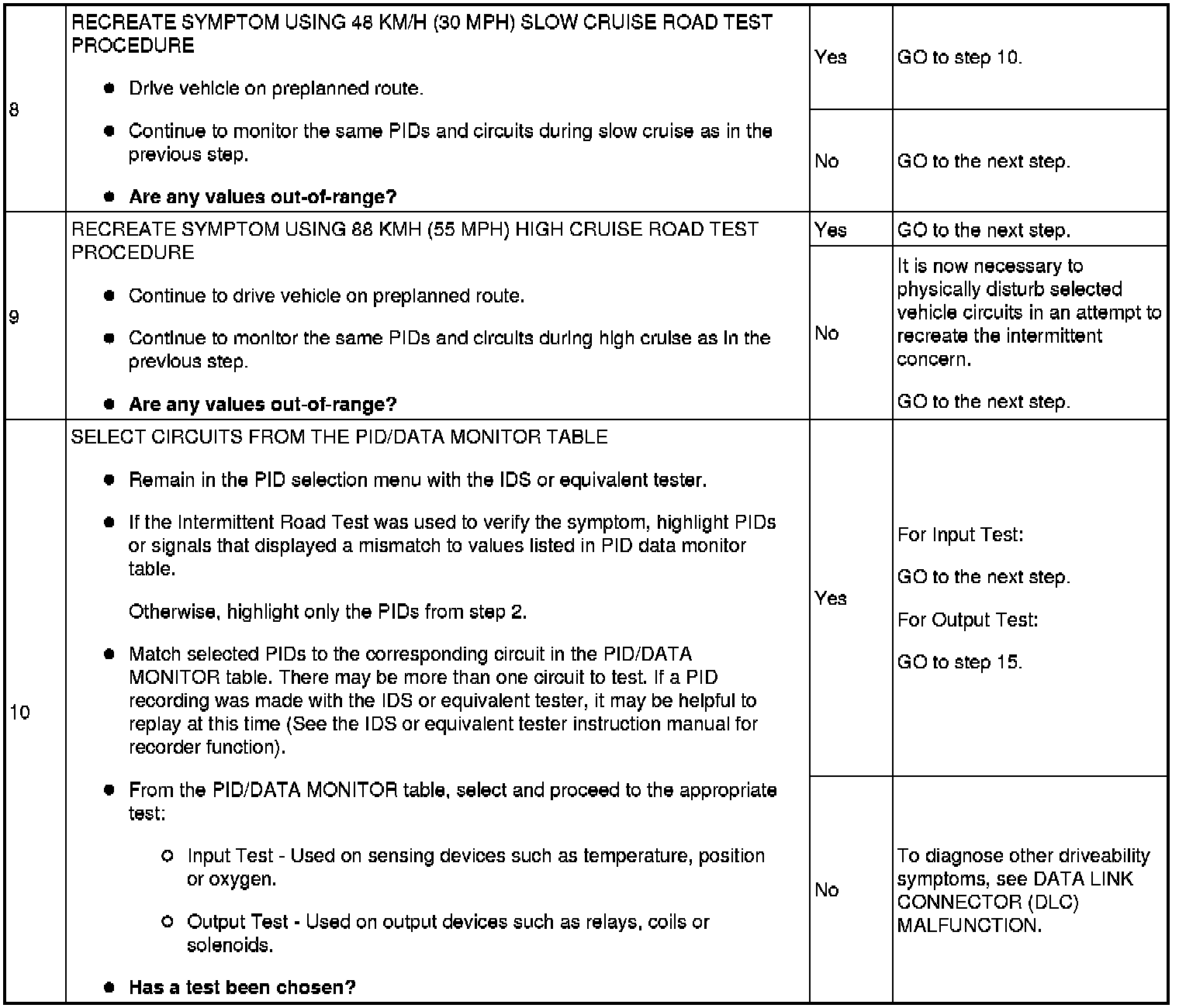

Step 8-Step 10:

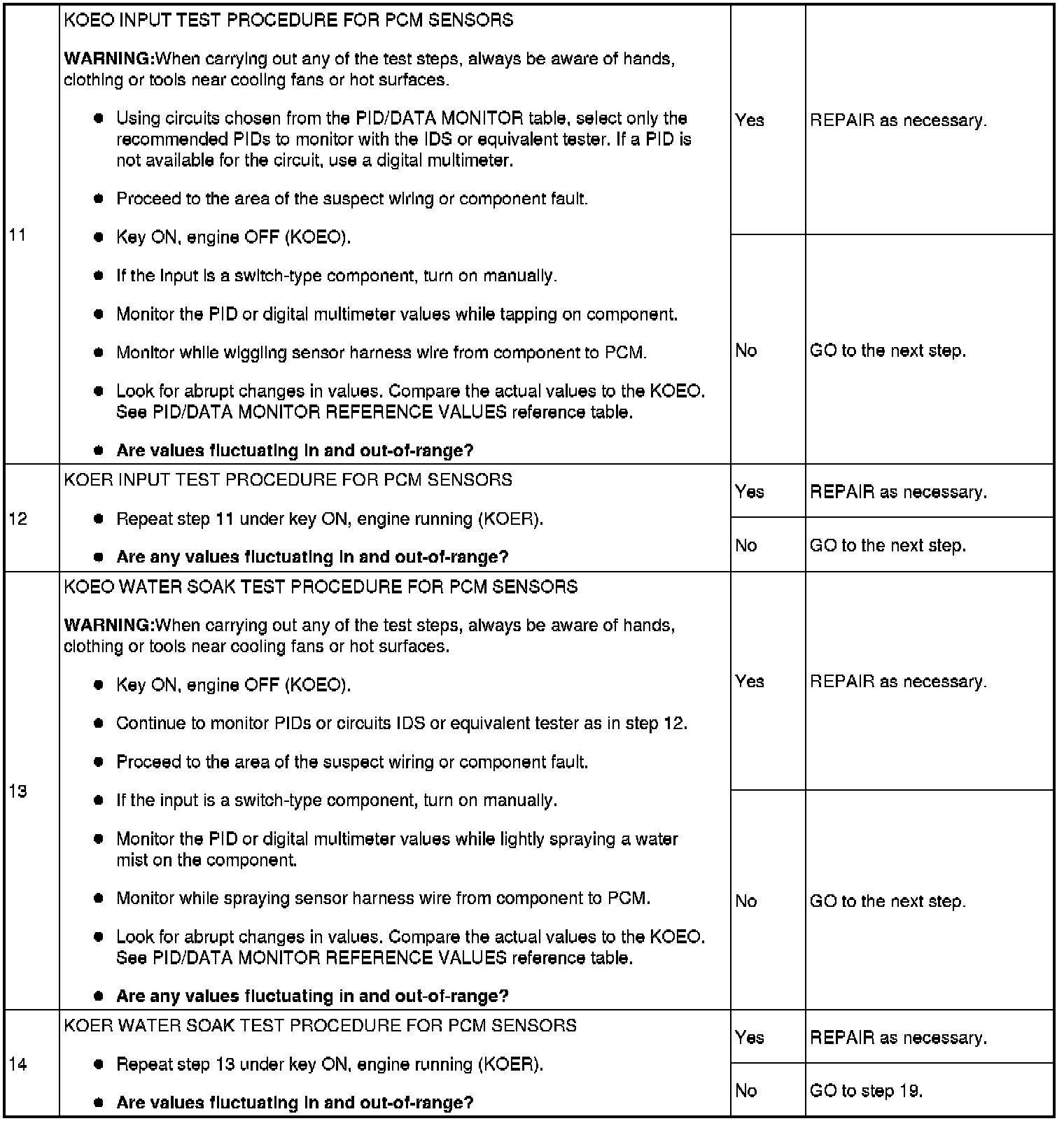

Step 11-Step 14:

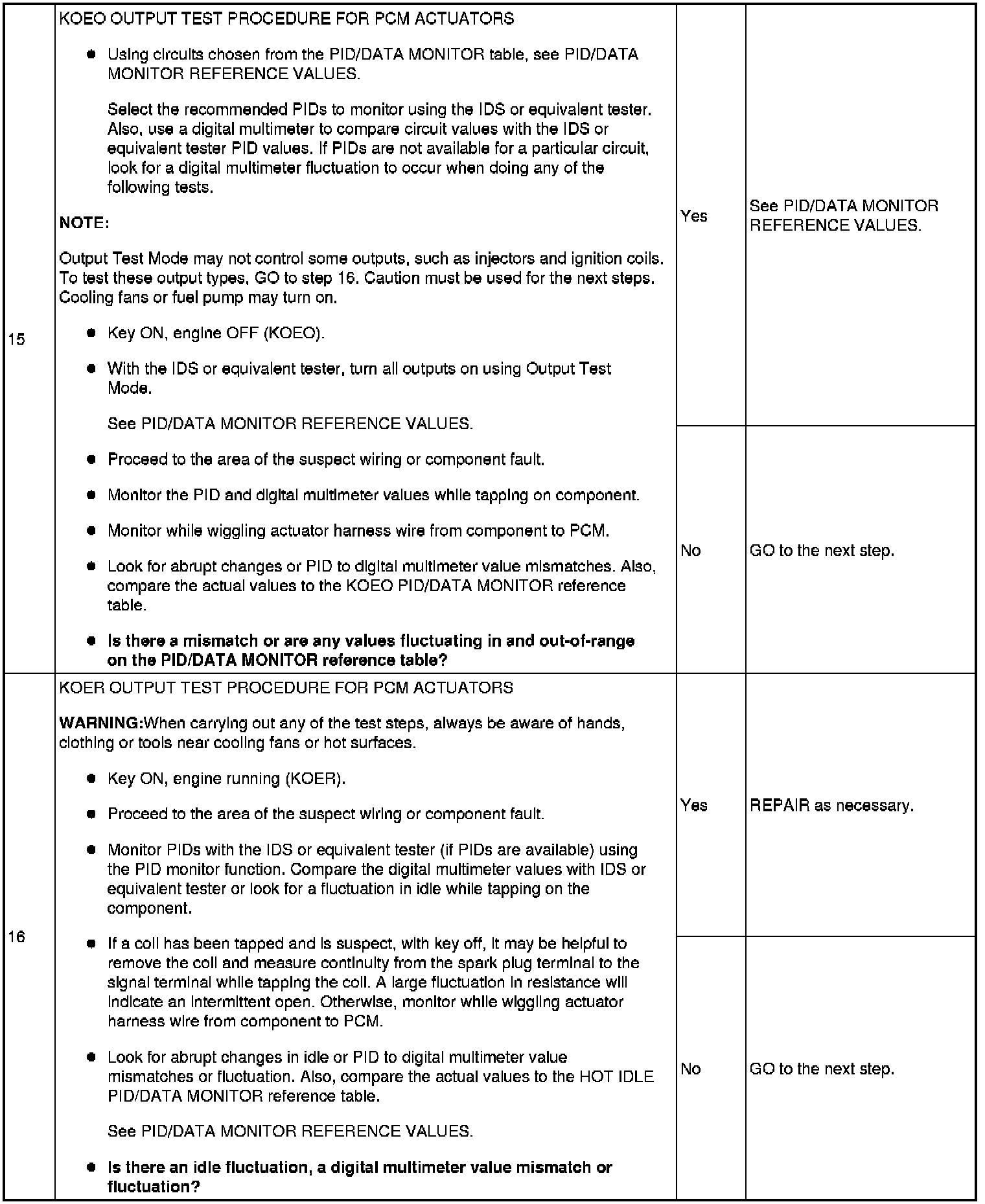

Step 15-Step 16:

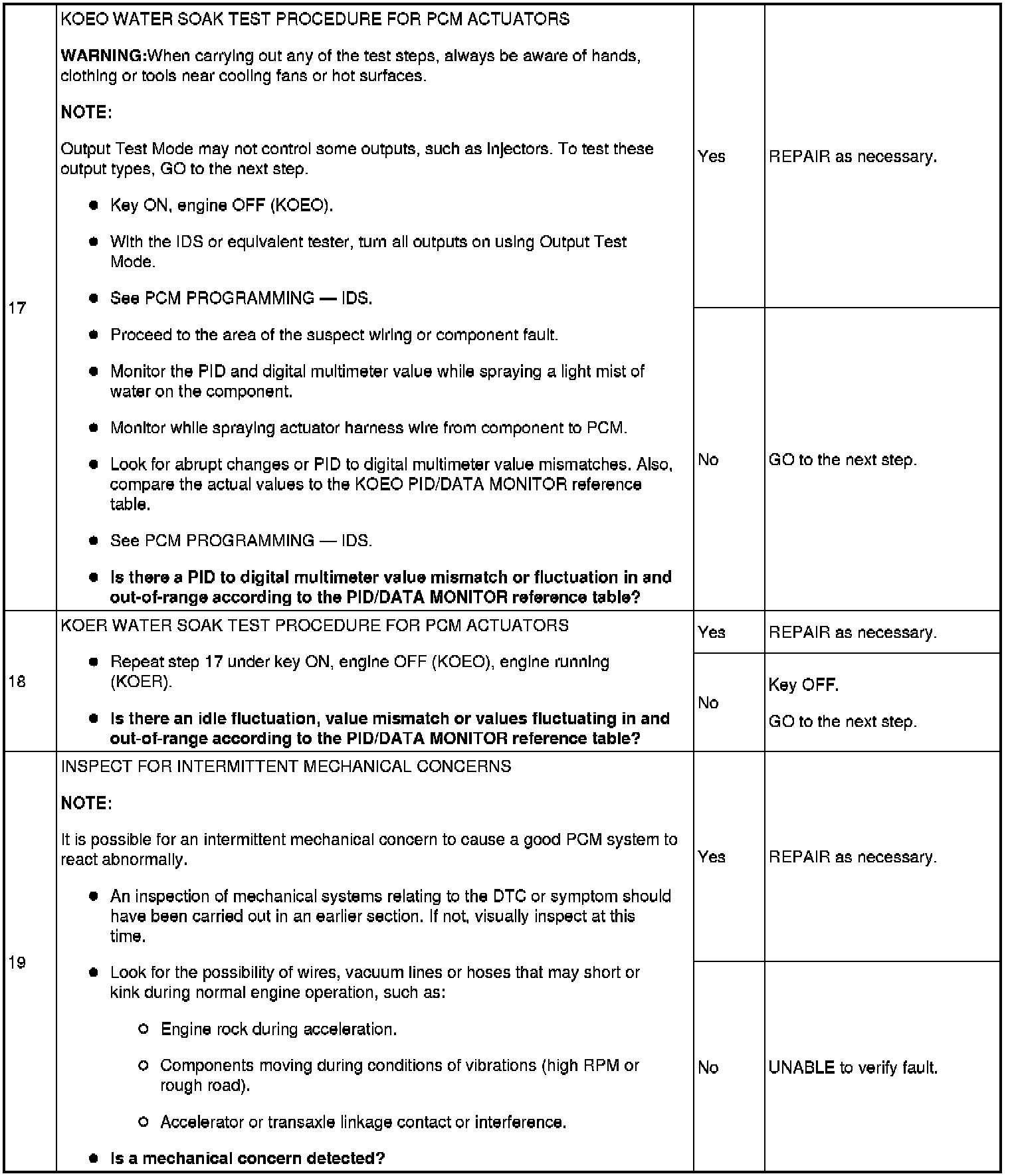

Step 17-Step 19:
