Symptom Troubleshooting Chart - Engine
-
SYMPTOM TROUBLESHOOTING CHART - ENGINE

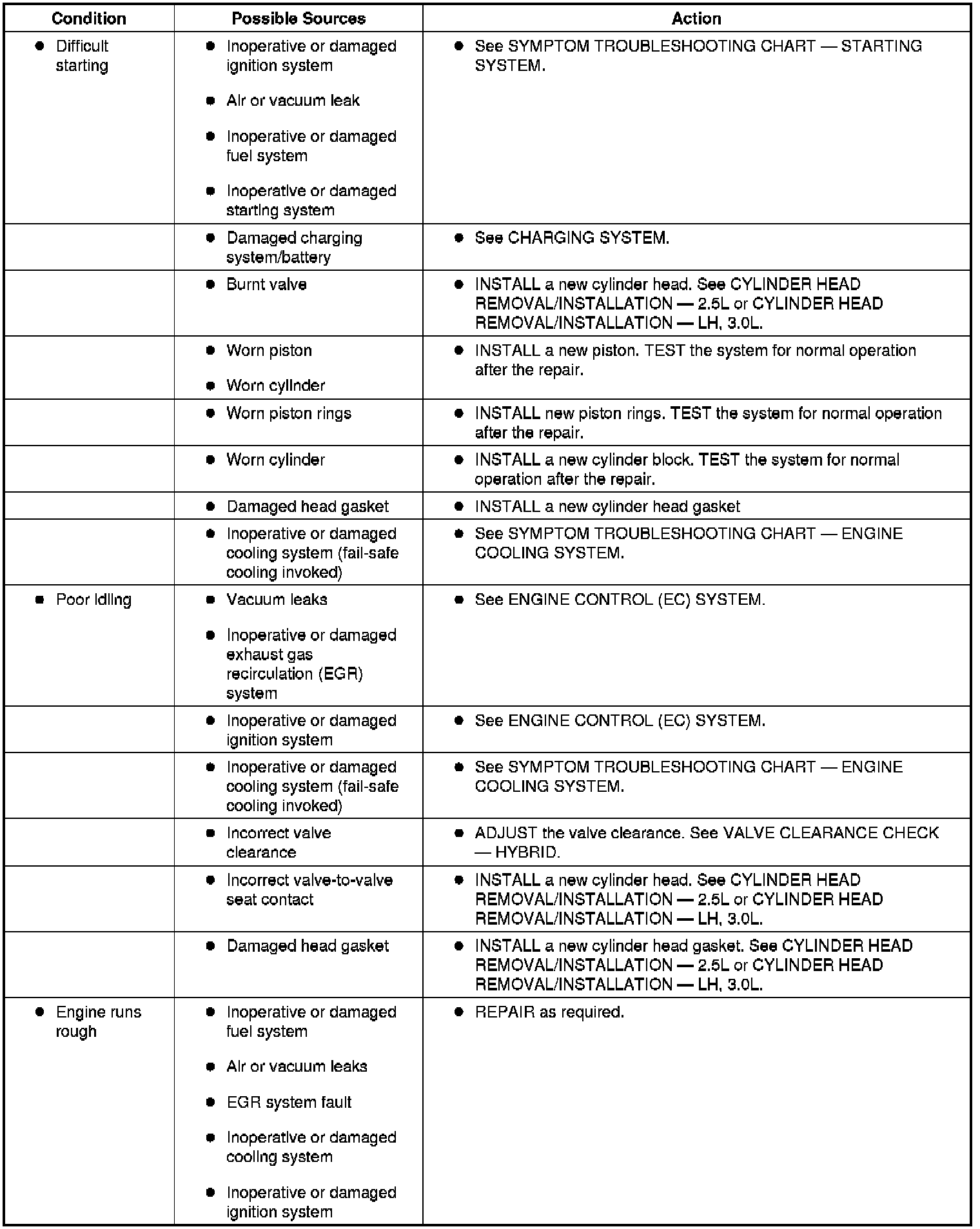

Symptom Troubleshooting Chart - Engine (Part 1):

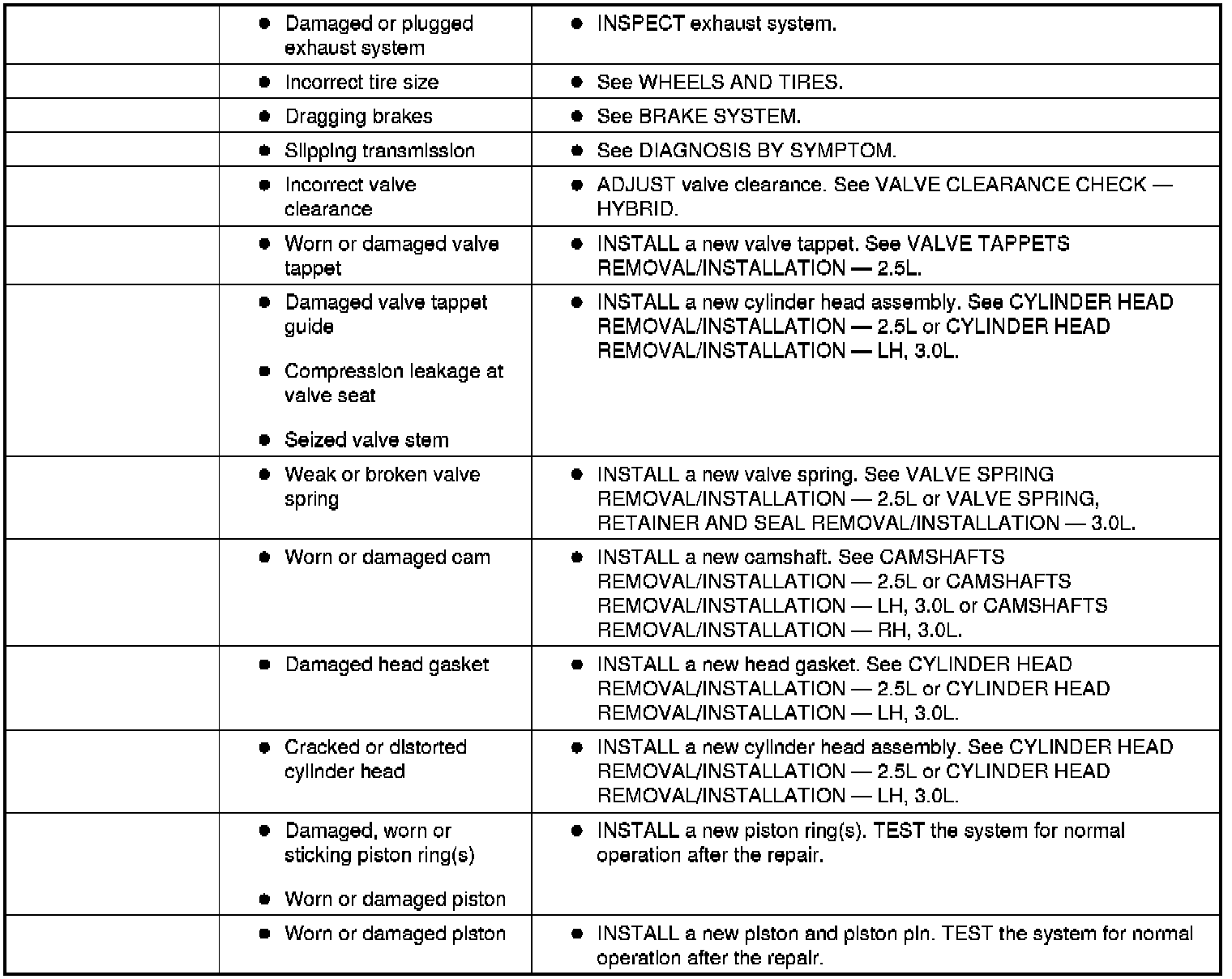

Symptom Troubleshooting Chart - Engine (Part 2):

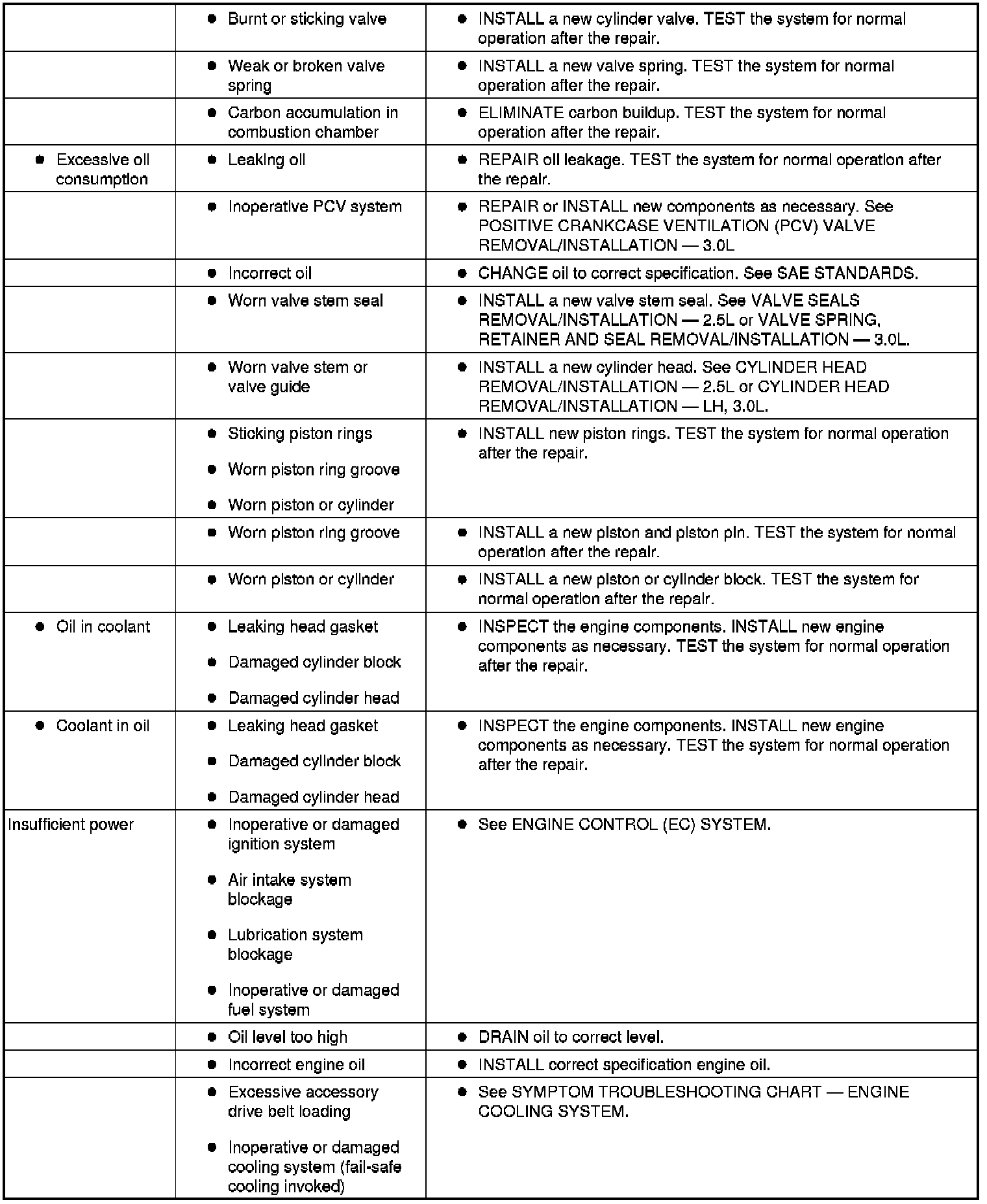

Symptom Troubleshooting Chart - Engine (Part 3):
