Exhaust Gas Recirculation: Testing and Inspection

EGR SYSTEM MALFUNCTION

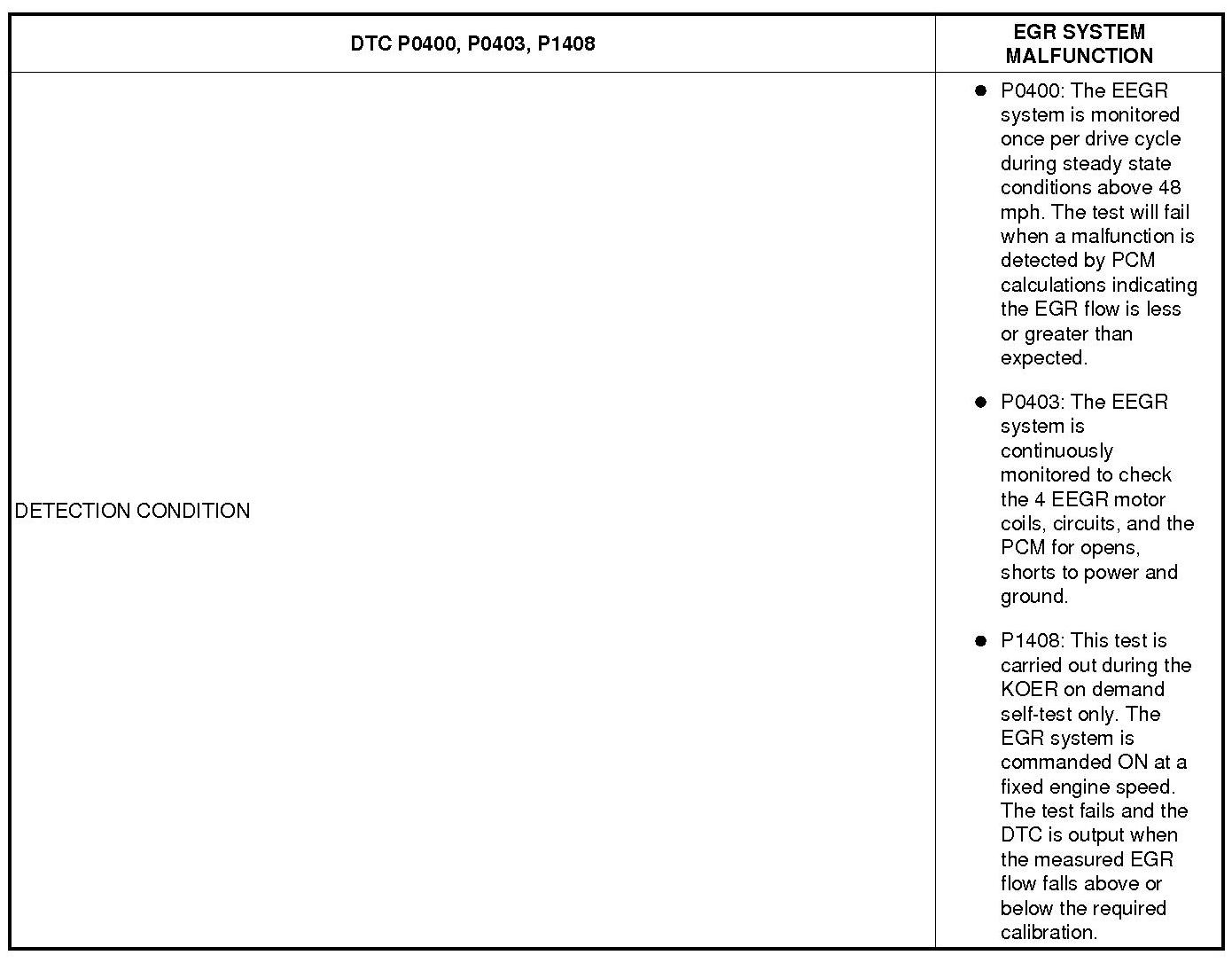

Detection Condition:

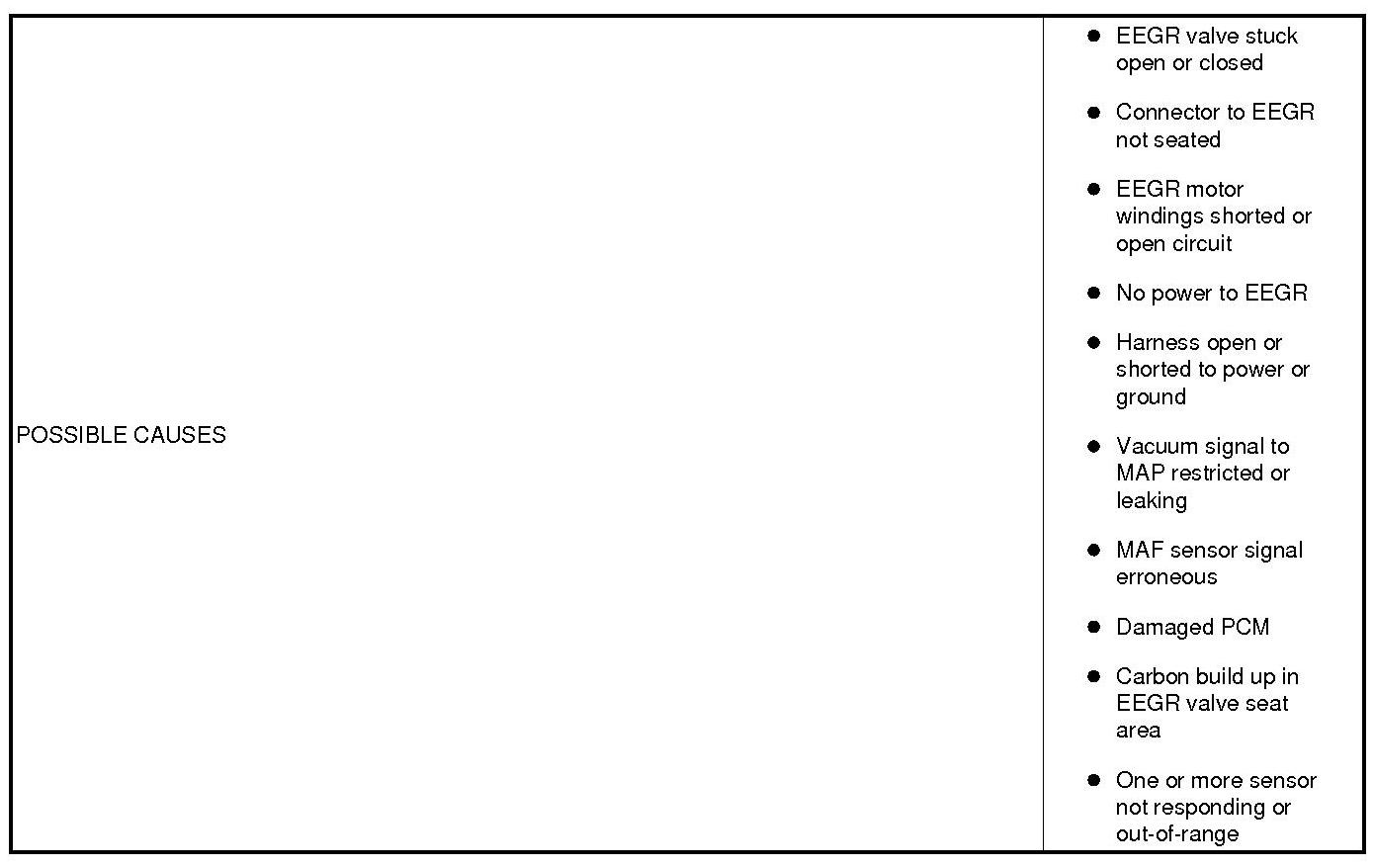

Possible Causes:

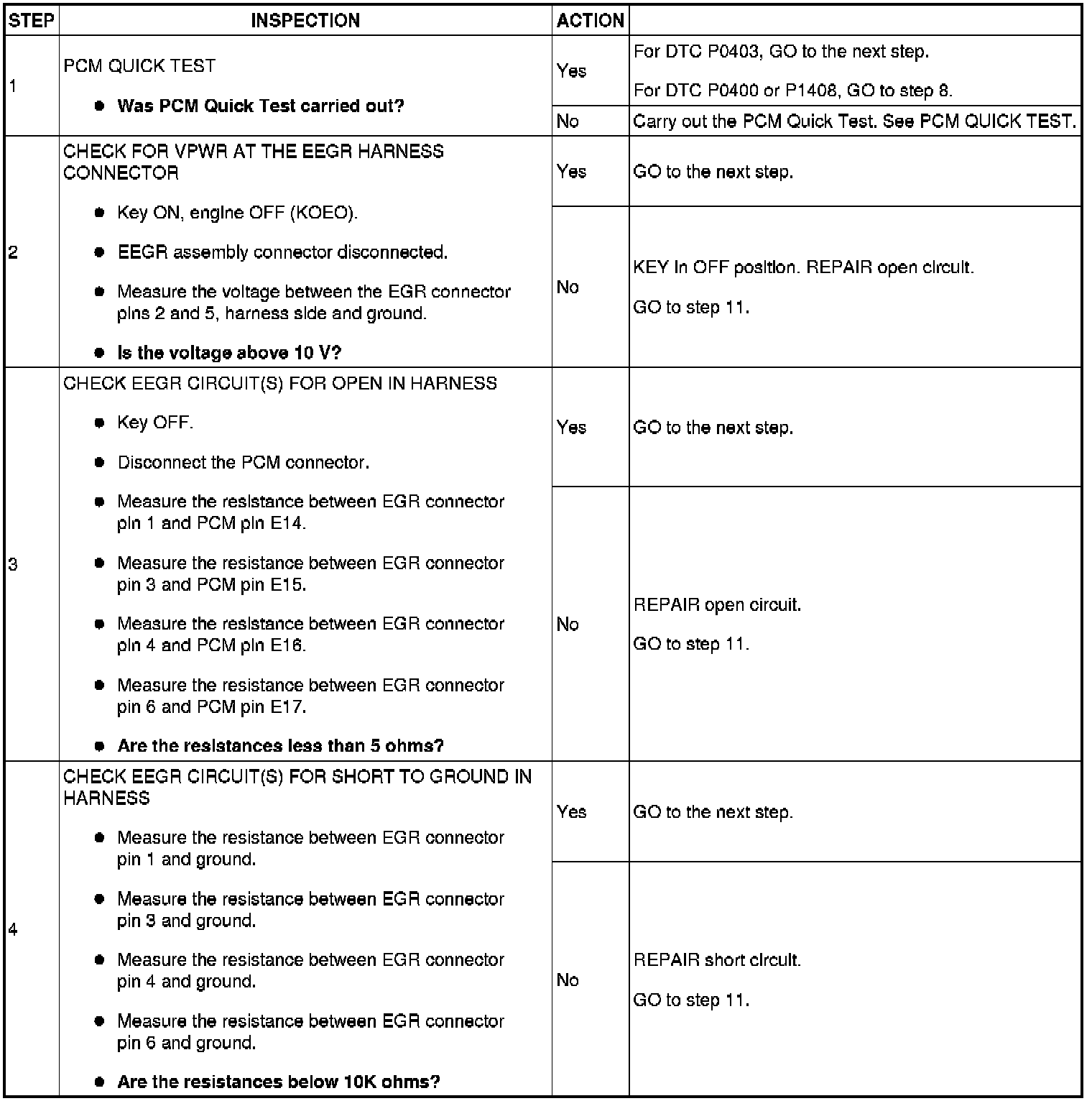

Step 1-Step 4:

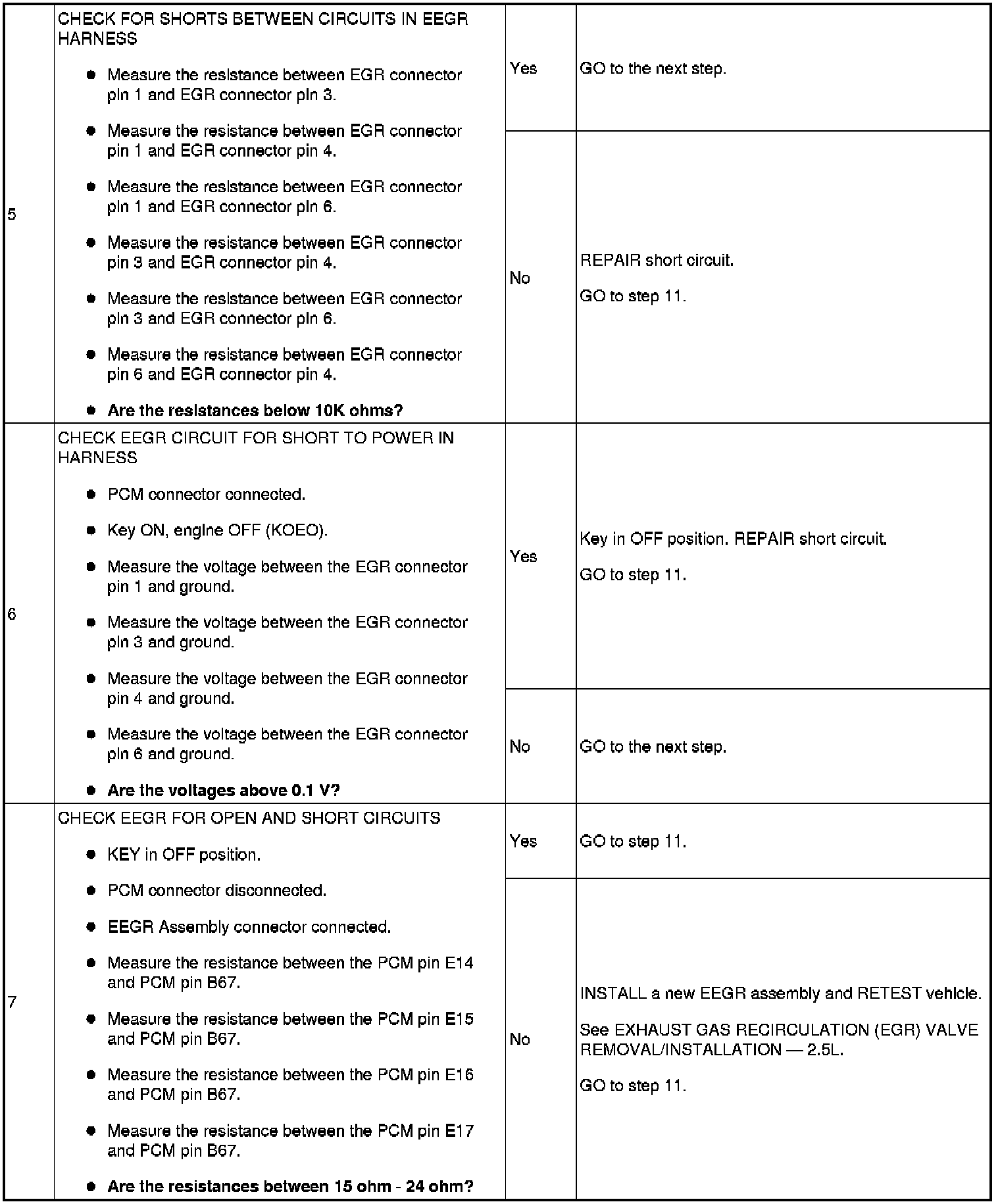

Step 5-Step 7:

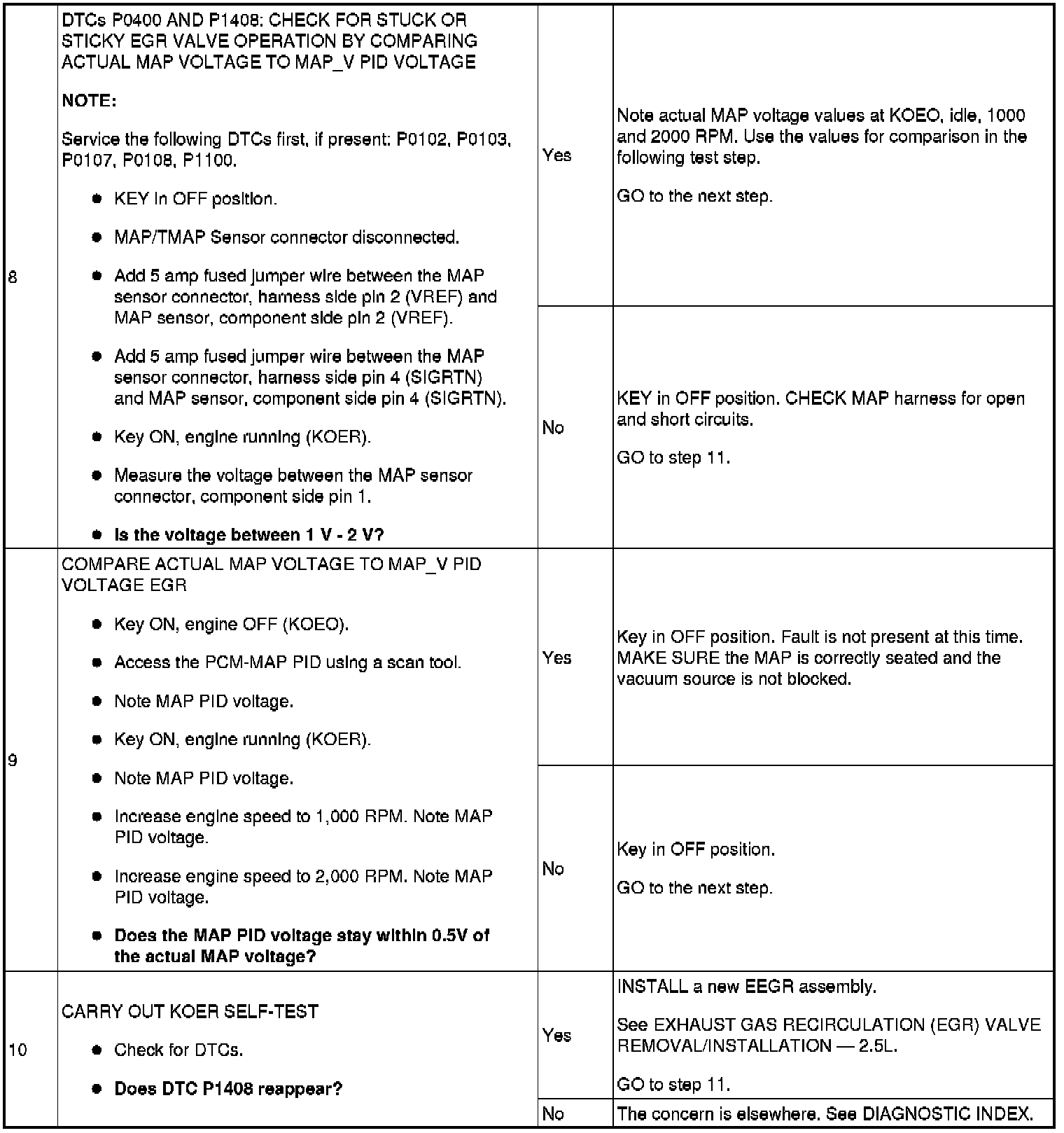

Step 8-Step 10:

Step 11:
