Engine Ignition - RH

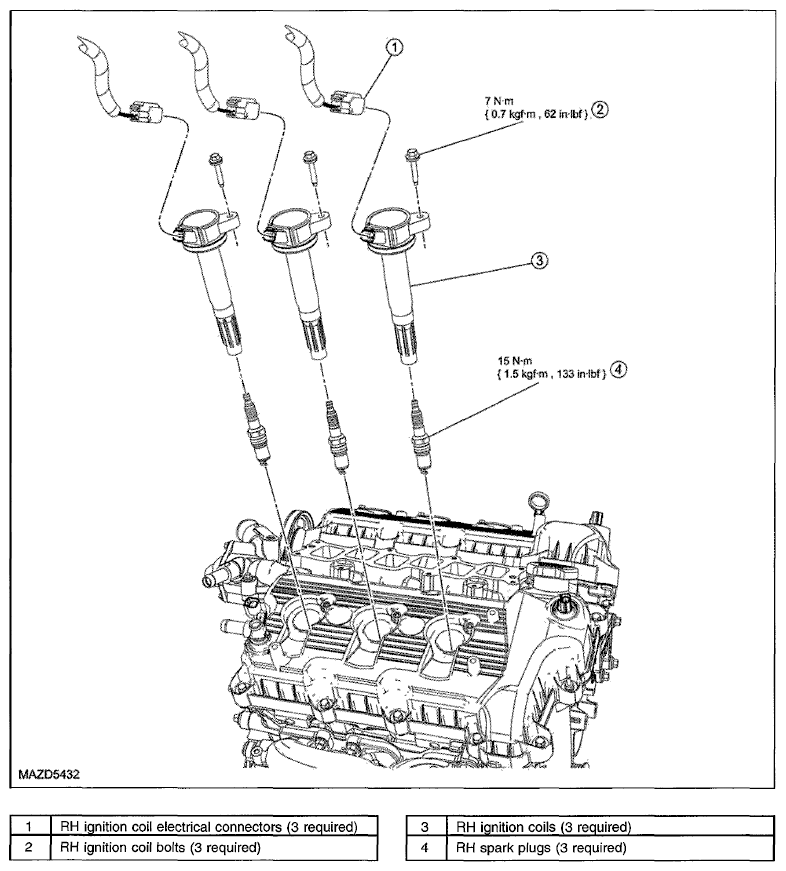

Fig 1: Exploded View Of Engine Ignition Components With Torque Specifications (RH)
G06767324Courtesy of MAZDA MOTORS CORP.
