Engine Ignition Components - Exploded View: Notes

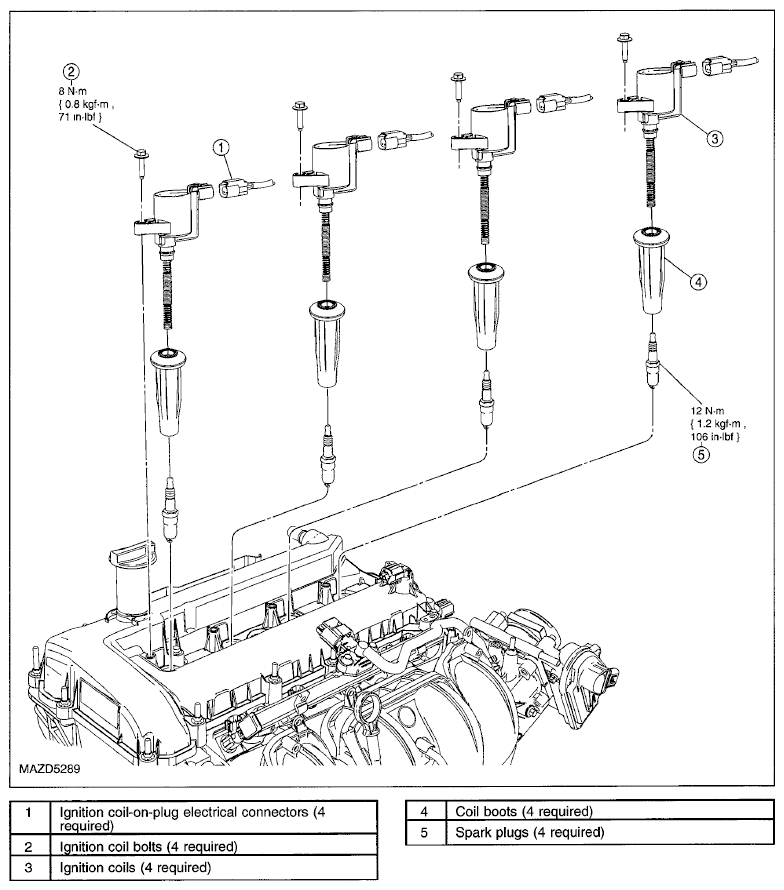

Fig 1: Exploded View Of Engine Ignition Components With Torque Specifications
G06767323Courtesy of MAZDA MOTORS CORP.
