Exterior Mirror Control Switch Removal/Installation

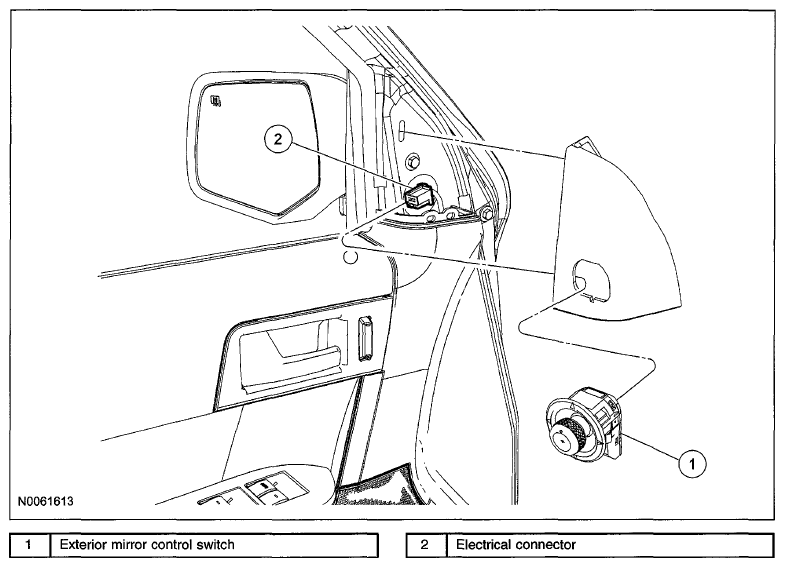

Fig 1: Identifying Exterior Mirror Control Switch And Electrical Connector

Courtesy of MAZDA MOTORS CORP.

1. Remove the LH sail panel.
   • Disconnect the electrical connector.
2. Remove the exterior mirror control switch.
   • Press the 2 retaining tabs.
3. To install, reverse the removal procedure.

Fig 2: Pressing Retaining Tabs

Courtesy of MAZDA MOTORS CORP.
