Window Control Switch Removal/Installation

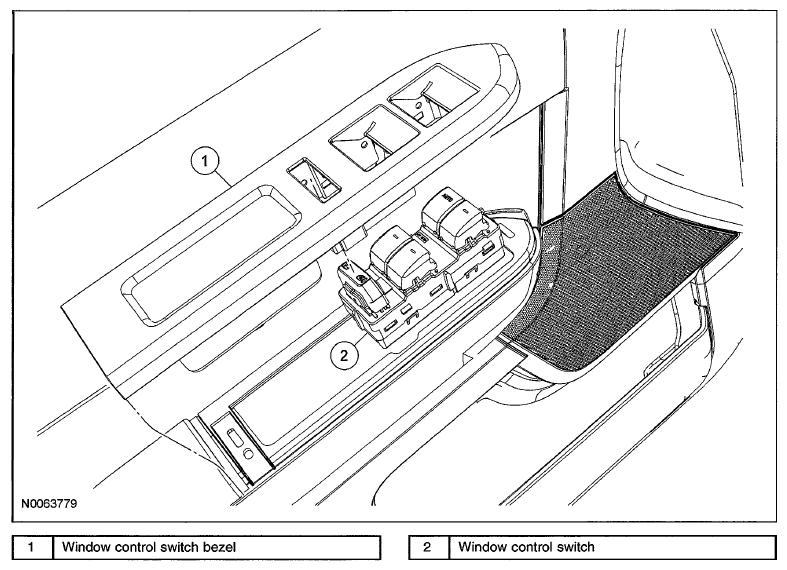

Fig 1: Identifying Window Control Switch Bezel And Window Control Switch
G06765769Courtesy of MAZDA MOTORS CORP.
NOTE:
  • LH front window control switch shown in illustration, all others similar.
NOTE:
  • The removal/installation procedures for all window control switches are similar.
  1. Remove the front door trim panel or the rear door trim panel. See FRONT DOOR TRIM PANEL REMOVAL/INSTALLATION or REAR DOOR TRIM PANEL REMOVAL/INSTALLATION .
  2. Release the window control switch bezel from the door trim panel.
  3. Release the locking tabs and remove the window control switch from the bezel.
  4. To install, reverse the removal procedure.
