Brake Caliper: Service and Repair

CALIPER (FRONT) DISASSEMBLY/ASSEMBLY

1. Disassemble in the order indicated in the table.










2. Assemble in the reverse order of disassembly.

Piston Disassembly Note

CAUTION:
- The piston could be damaged if it is blown out with great force. Blow compressed air slowly to prevent the piston from suddenly popping out.

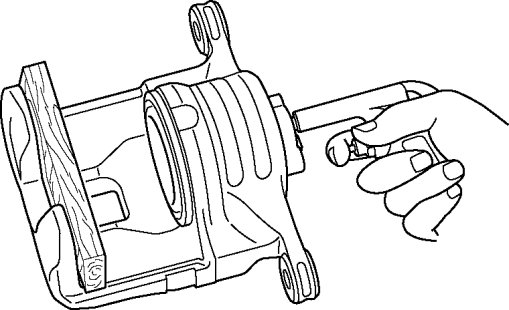

1. Insert a piece of wood in the caliper and blow compressed air through the bleeder screw installation hole to remove the piston from the caliper.
