Windshield Washer Motor: Service and Repair

WASHER MOTOR REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the front bumper. Front Bumper Removal/Installation

3. Remove the front combination light on the left side. Service and Repair

4. Remove the washer tank. Service and Repair

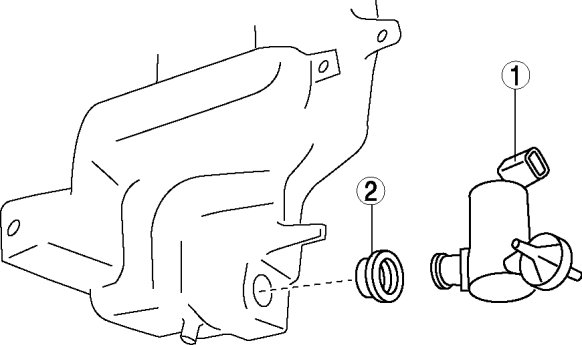

5. Remove in the order indicated in the table.










6. Install in the reverse order of removal.
