Body Control Module (BCM) Bracket Removal/Installation: Installation

1. Bend the tabs in the direction of the arrow (1) so that clearance (a) indicated in the figure is within the specification.

   Clearance

   a: 0.8-1.2 mm {0.032-0.047 in}

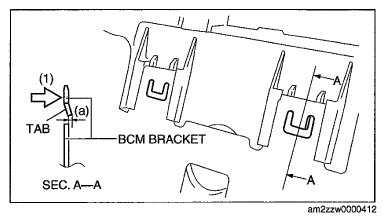

   Fig 1: Bending Tabs

   Courtesy of MAZDA MOTORS CORP.
2. Press the BCM in the direction of the arrow (2) as shown in the figure and install it.
3. Install the BCM. (See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION .)
4. Install the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
5. Install the dashboard under cover. (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
6. Connect the negative battery cable.

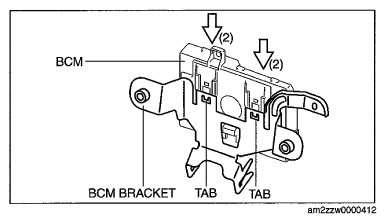

Fig 2: Pressing Down BCM
