Communication Devices
>>
Control System (Body Control Module)
>>
Body Control Module (BCM) Inspection
>>
Generated pulse (reference)
>>
Pattern 5
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Pattern 5
Terminal: 6S (+) ↔ body ground (-)
Oscilloscope setting: 2 V/DIV (Y), 1 ms/DIV (X), DC range

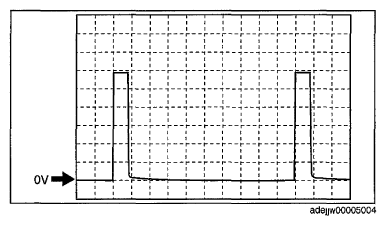

Fig 1: Switches Output Pulse (Pattern 5)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
