Body Control Module (BCM) Inspection
>>
Generated pulse (reference)
>>
Pattern 7
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Pattern 7

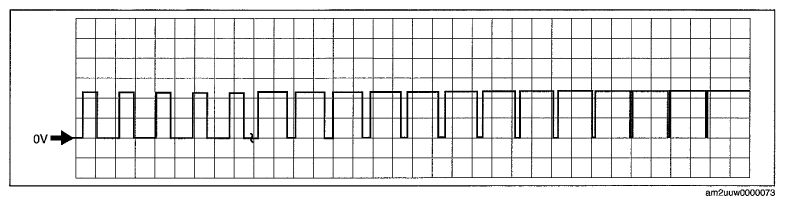

Fig 1: Switches Output Pulse (Pattern 7)
Courtesy of MAZDA MOTORS CORP.
Terminal: 31 (+) ↔ body ground (-)
Oscilloscope setting: 5 V/DIV (Y), 5 ms/DIV (X), DC range
Courtesy of MAZDA MOTORS CORP.
