Repair and Diagnosis
>>
Accessories & Equipment
>>
Communication Devices
>>
Control System (Body Control Module)
>>
Body Control Module (BCM) Inspection
>>
Liftgate Opener Switch Input Signal Pulse (Reference)
>>
Liftgate opener switch pressed
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Liftgate opener switch pressed
Terminal: 6U (+) ↔ body ground (-)
Oscilloscope setting: 2 V/DIV (Y), 1 ms/DIV (X), DC range
Measurement condition: Liftgate opener switch pressed

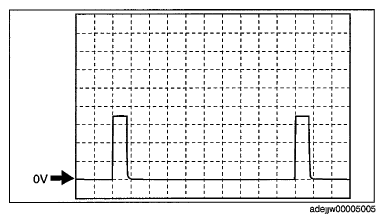

Fig 1: Liftgate Opener Switch Input Signal Pulse (Liftgate Opener Switch Pressed)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
