Body Control Module (BCM) Inspection
>>
Sensitivity adjustment volume (Reference)
>>
5 position
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
5 position
Terminal: 6P (+) ↔ body ground (-)

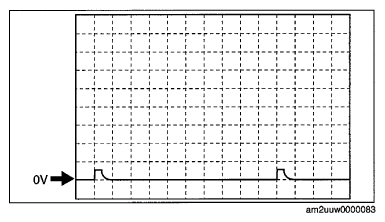

Oscilloscope setting: 2 V/DIV (Y), 1 ms/DIV (X), DC range
Fig 1: Sensitivity Adjustment Volume (5 Position)
