Brake Pipe Installation Note

  1. Align the marks made before removal and install the brake pipe into the DSC HU/CM referring to the illustration.

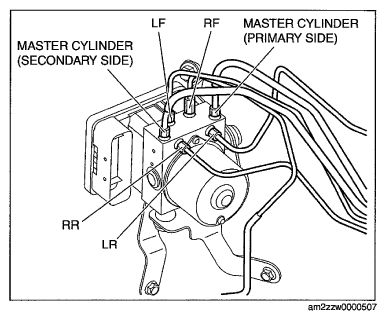

    Fig 1: Identifying Brake Pipe To DSC HU/CM
    G06941087Courtesy of MAZDA MOTORS CORP.
