Connector Removal Note

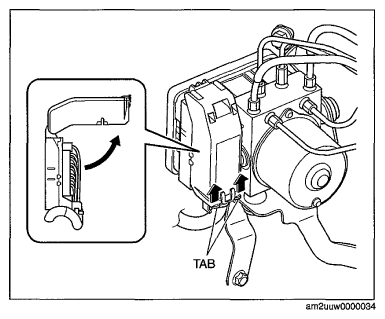

- Pull the connector cover up in the direction of the arrow while pressing the connector cover tab.
- Pull the connector toward the vehicle left ward and remove it.CAUTION:
- If sand or other particles get into the connector cover, it may be difficult to remove. In order not to damage the connector, be careful not to use excessive force removing the cover.
