Clearance Inspection: Overview

Measure the gap between the ABS sensor rotor and ABS wheel-speed sensor using a feeler gauge.
- If not within the specification, verify the following items and repair or replace if necessary.
  - Is there deformation or damage to the ABS sensor rotor?
  - Is there deformation or damage to the ABS wheel speed sensor?
  - Is there foreign material adhering?
Clearance

0.5-1.3 mm {0.02-0.05 in}

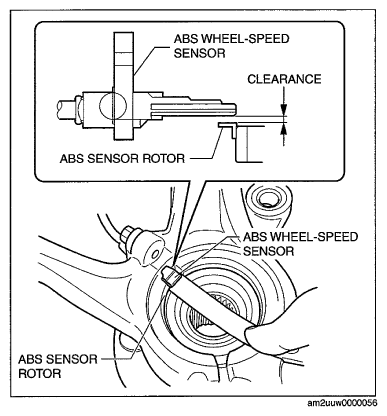

Fig 1: Measuring Gap Between ABS Sensor Rotor And ABS Wheel-Speed Sensor Using Feeler Gauge
Courtesy of MAZDA MOTORS CORP.
