Trunk / Liftgate Lock Cylinder: Service and Repair

TRUNK LID KEY CYLINDER REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the trunk lid trim.

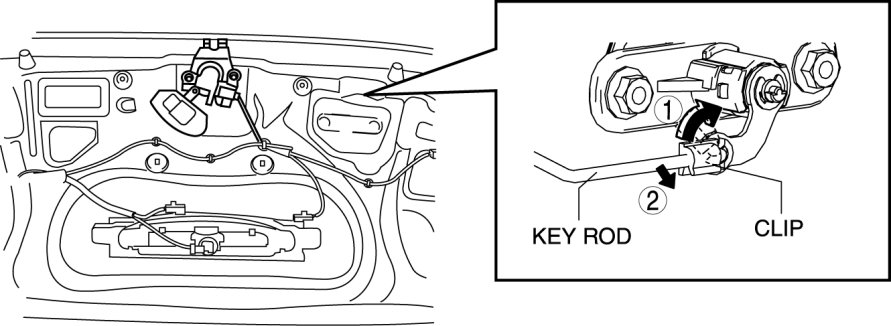

3. Lift the clip in the direction of the arrow (1), and pull out the key rod in the direction of the arrow (2).

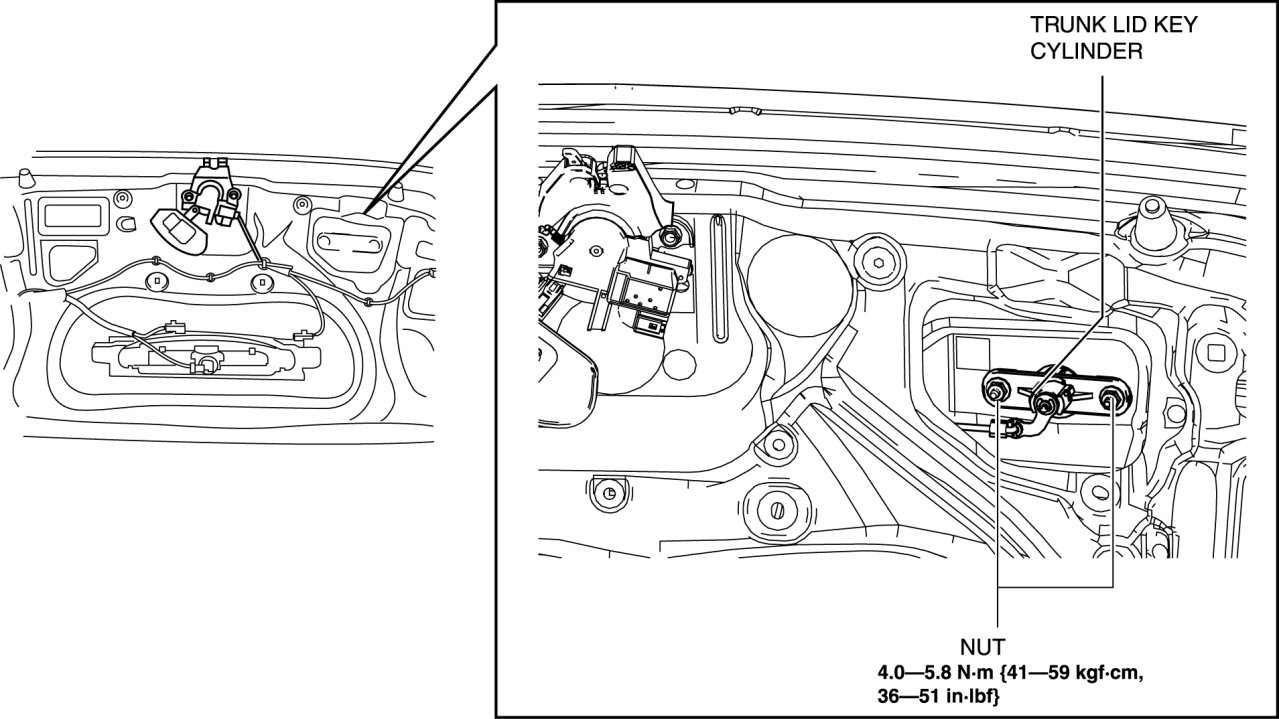

4. Remove the nuts.






5. Remove the trunk lid key cylinder.

6. Install in the reverse order of removal.
