Seat Temperature Switch: Service and Repair

SEAT WARMER SWITCH REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the shift panel. Shift Panel Removal/Installation

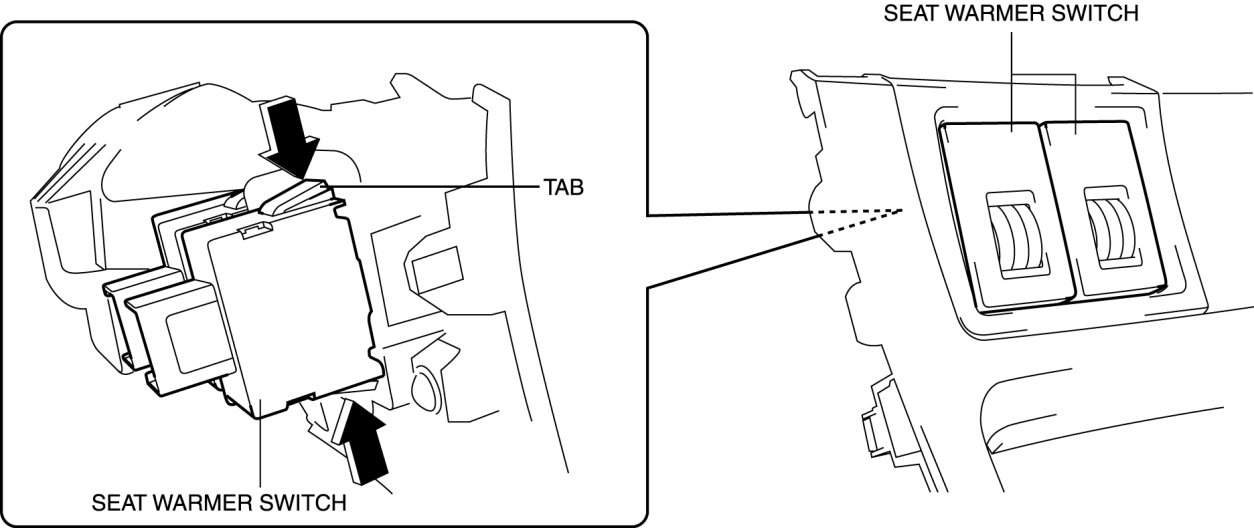

3. Squeeze the tabs of seat warmer switch and pull it outward to remove it.






4. Remove the seat warmer switch.

5. Install in the reverse order of removal.
