Steering Angle Sensor: Service and Repair

STEERING ANGLE SENSOR REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Driver-side air bag module Standard Deployment Control System Two-Step Deployment Control System

b. Steering wheel Steering Wheel And Column Removal/Installation - Without Advanced Keyless Entry And Push Button Start System Steering Wheel And Column Removal/Installation - With Advanced Keyless Entry And Push Button Start System

c. Clock spring Service and Repair

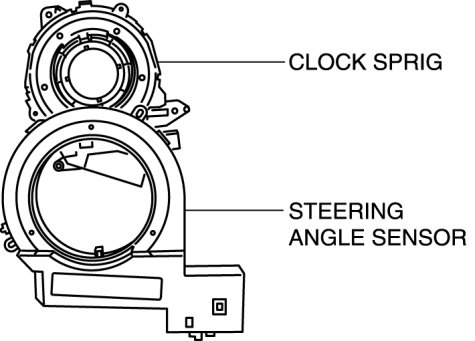

3. Remove the steering angle sensor.






4. Install in the reverse order of removal.
